Description
AV Costar AV20576DN-28 Overview

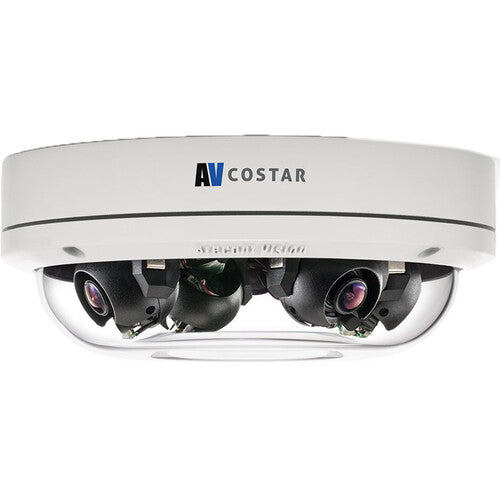

Monitor your surroundings with the ConteraIP Omni LX AV20576DN-28 20MP Outdoor Multi-Sensor Network Dome Camera from Arecont Vision. This multi-sensor camera uses four 1/2.8" 5MP progressive scan CMOS sensors to capture video at a combined resolution of 20MP at 15fps. The camera is equipped with four 2.8mm fixed lenses that each deliver a 98° horizontal field of view. Two-way audio is possible thanks to an audio input (amplification required) and output. An onboard memory card slot accepts microSDXC cards up to 1TB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
Compliance with ONVIF profiles G, S, and T enables interoperability with a wide range of surveillance devices. This camera is housed in an IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
Items Included
- AV Costar ConteraIP Omni LX AV20576DN-28 20MP Outdoor Multi-Sensor Network Dome Camera
- Mounting Template
- Accessory Pack
- Limited 36-Month Manufacturer Warranty
Additional Resources
AV Costar AV20576DN-28 Specs
| Image Sensor |
1/2.8"-Type CMOS
|
| Focal Length |
2.8mm
|
| Field of View |
Horizontal: 98°
|
| Pan/Tilt |
No
|
| Power I/O |
1x Barrel
1x DC 1x RJ45 |
| Lens Mount |
M13
|
| Number of Lenses |
4
|
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 5 Megapixel
|
| IR Cut Filter |
Yes Mechanical
|
| Day/Night |
True
|
| Minimum Illumination |
0.15 Lux (Color)
0.15 Lux (Black and White) |
| Focal Length |
2.8mm
|
| Field of View |
Horizontal: 98°
|
| Maximum Aperture |
f/1.6
|
| Automatic Gain Control |
Yes
|
| Max IP Streaming |
via RJ45
2592 x 1944 up to 15 fps |
| Multi-View Streaming |
Yes, 3 Streams
|
| Camera Angle Adjustment |
Horizontal: 0 to 360°
Vertical: 0 to 90° Rotation: 0 to 360° |
| Pan/Tilt |
No
|
| Security |
HTTPS, IEEE 802.1X
|
| Supported Protocols |
DDNS, DHCP, FTP, HTTP, IPv4/v6, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP, Zero Configuration, ONVIF Profile G, ONVIF Profile S, ONVIF Profile T
|
| Media/Memory Card Slot |
Single Slot: microSDXC Only [1 TB Maximum]
|
| Other I/O |
1x RJ45
|
| 1- or 2-Way Audio |
Two-Way
|
| Audio Formats |
G.711
|
| External Storage Options |
NAS
|
| Analytics |
Motion Detection, Camera Sabotage/Tampering
|
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
1 / 1
|
| Power I/O |
1x Barrel
1x DC 1x RJ45 |
| Power Consumption |
14
|
| Material of Construction |
Aluminum, Plastic
|
| Environmental Resistance |
Dust/Water-Resistant (IP66)
|
| Impact Resistance |
Impact-Resistant (IK10)
|
| Certifications |
FCC (Part 15 Class A), REACH, RoHS, WEEE
|
| Operating Conditions |
-40 to 122°F / -40 to 50°C up to 90% Humidity
|
| Storage Conditions |
-40 to 140°F / -40 to 60°C
|
| Mobile App Compatible |
No
|
| Dimensions (W x H x D) |
7.7 x 3.1" / 196 x 78.5 mm
|
| Weight |
3.7 lb / 1.7 kg (Body Only)
|
| Package Weight |
4.56 lb
|
| Box Dimensions (LxWxH) |
8.8 x 8.7 x 5"
|
