Description

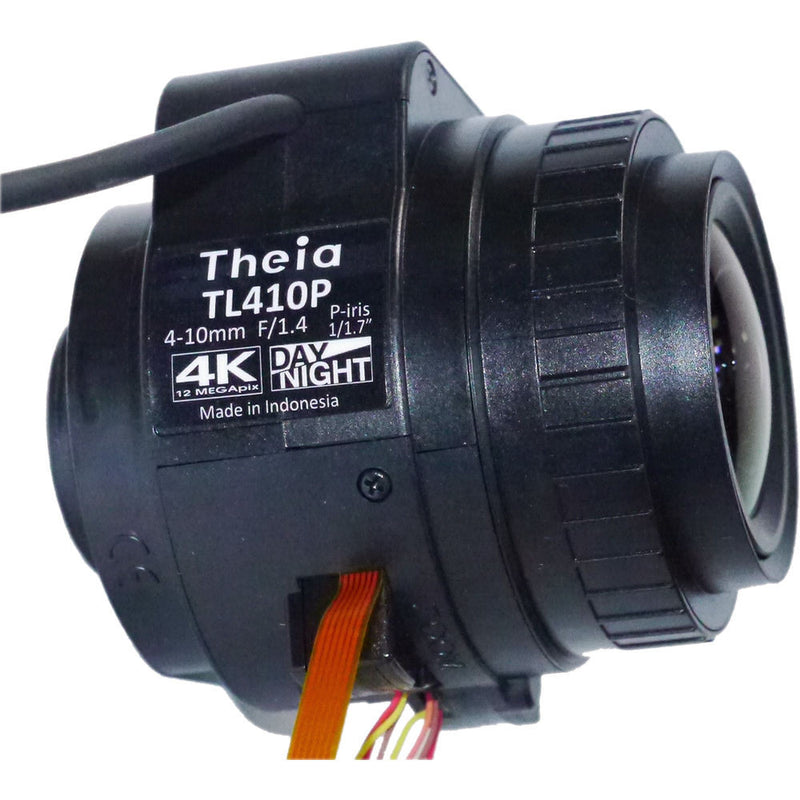

The Theia Technologies�CS-Mount 4-10mm f/1.4-Close 4K Motorized P-Iris Varifocal Lens is designed for use with up to 1/1.7� sensors and offers motorized zoom and focus. Thanks to the compact design, it can easily fit into 4� domes. With an aperture range of f/1.4-close, the lens can be used for surveillance in low-light as well as bright light conditions.
In the Box
Theia Technologies CS-Mount 4-10mm f/1.4-Close 4K Motorized P-Iris Varifocal Lens
- Limited 2-Year Warranty
| Focal Length | 4-10mm |
| Image Circle | Up to � 9.4 mm |
| Resolution | 12.4 MP |
| Aperture | F/1.4 @ 4mm - F/2.4 @ 10mm to close |
| Focus Range | 1.64' to infinity (0.5 m to infinity) |
| Back Focal Length | 0.33" / 8.4 mm (in air) |
| Angle | CRA: < 7� |
| Distortion | < 61% at 4mm, < 8% at 10mm |
| Relative Illumination | > 45% |
| Transmission | Lens: > 80% |
| Field of View | 1/1.7": 112 to 44� (horizontal), 81 to 33� (vertical), 149 to 55� (diagonal) 1/1.8": 110 to 43� (horizontal), 71 to 29� (vertical), 139 to 52� (diagonal) 1/1.8" 4K: 110 to 43� (horizontal), 52 to 21� (vertical), 126 to 48� (diagonal) 1/2": 93 to 37� (horizontal), 68 to 28� (vertical), 120 to 46� (diagonal) 1/2.3": 90 to 36� (horizontal), 67 to 27� (vertical), 117 to 45� (diagonal) 1/2.5": 83 to 33� (horizontal), 60 to 25� (vertical), 106 to 42� (diagonal) |
| Zoom/Focus | Drive: Stepper motor 2 phase bipolar drive Operation Voltage: 3.3 V Operating Range: 2.6 to 4.8 V Maximum Continuous Operation Time (seconds) for Operation Voltage and Ambient Temperature: @ 68�F (20�C): 60 sec (3.3 V), 12 sec (4 V), 6 sec (4.8 V) @ 104�F (40�C): 35 sec ((3.3 V), 9 sec (4 V), 5 sec (4.8 V) @ 140�F (60�C): 20 sec (3.3 V), 6 sec (4 V), 4 sec (4.8 V) Coil Resistance: 28.5 Ohms (�7%) Gear Ratio: 1:2025 Zoom Speed: 4.1 sec (@ 1000 pps) Zoom Cam Rotation: 85� Focus Speed: 8.6 sec (@ 1000 pps) Focus Cam Rotation: 75� Focus/Zoom Connectors: Housing: Molex 51021-0800 Terminal: Molex 50058-8000 Cable Length: 5.9" (150 mm) |
| Iris Control | Drive: Stepper motor 2 phase bipolar drive Operation Voltage: 4 V (+/-1) Number of Steps: 75 Basic Step Angle: 18� Maximum Frequency Response: 1000 pps Coil Resistance: 30 Ohms (each phase) Connector Type 1 (Molex) Connector Type: Housing: Molex 51021-0400, Terminal: Molex 50058-8000 Cable Length: 5.9" (150 mm) Connector Type 2 (CCTV) Connector Type: Housing: EYC 221 Cable Length: 11.8" (300 mm) |
| Operating Temperature & Humidity | 4 to 140�F (-20 to 60�C) Humidity: < 70%, non-condensing |
| Storage Temperature & Humidity | -22 to 158�F (-30 to 70�C) Humidity: < 90%, non-condensing |
| Dimensions (� x L) | 2.32 x 2" (59 x 51.5 mm) |
| Weight | 2.75 oz (78 g) |
