| ₹ 79700.0 includes GST and import duties. | |
| B2B customers can avail ₹ 12154.25 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
- Can be Used with up to 5MP Cameras
- Ultra-Wide 135° Field of View
- Features Linear Optical Technology
- < 3% Residual Barrel Distortion
- Designed for CS-Mount Cameras
- Supports 1/4", 1/3", 1/2.5" Image Sensor

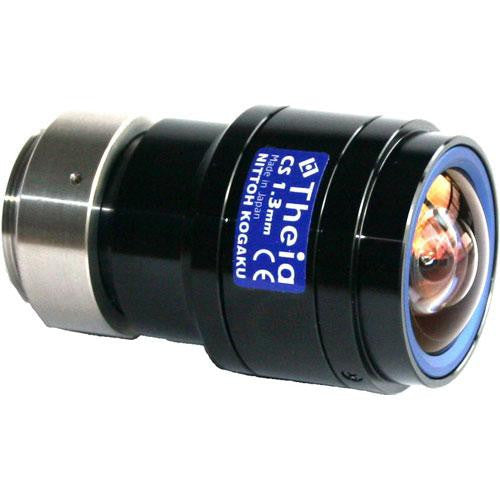

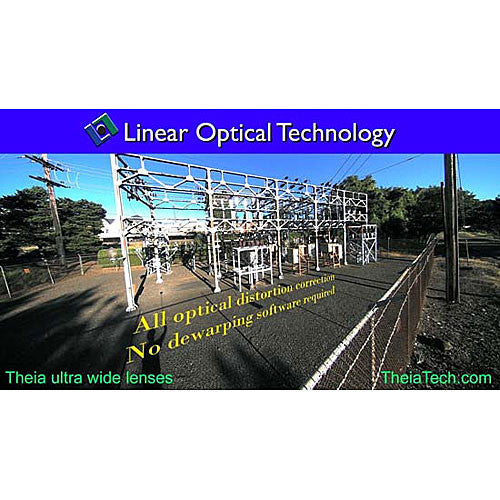

The Theia Technologies CS-Mount 1.3mm Fixed Manual Iris Lens features a fixed 1.3mm focal length that provides an ultra-wide 135° field of view with less than 3% residual barrel distortion. Using Theia's patented Linear Optical technology, this wide-angle lens corrects barrel distortion optically and does not require a custom dewarping or an image stitching algorithm which is usually associated with wide-angle lenses. This lens is designed for CS-mount cameras and supports 1/4", 1/3", and 1/2.5" image sensor sizes.
- Patented Linear Optical Technology
- Wide field of view
- Low barrel distortion
| Imager Size | 1/4", 1/3", 1/2.5" (some vignetting may occur using the 1/2.5" sensor depending on sensor tolerance) |
| Mount Type | CS mount |
| Focal Length | 1.3mm |
| Aperture | f/1.8 to closed |
| Iris Operation | Manual iris |
| Focus Operation | Fixed |
| Angle of View | 1/4": 109° / 93° / 122° (H/V/D) 1/3": 125° / 109° / 137° (H/V/D) 1/2.5": 135° / 119° / 141° (H/V/D) |
| Diameter and Length | 1.4 x 2.3" (36 x 59 mm) |
| Weight | 4.6 oz (130 g) |
| Packaging Info | |
|---|---|
| Package Weight | 0.35 lb |
| Box Dimensions (LxWxH) | 4.0 x 2.5 x 2.5" |
In the Box
Theia Technologies CS-Mount 1.3mm Fixed Manual Iris Lens
- Limited 2-Year Warranty
Bulk Discount
| Quantity | Price |
| 2 | ₹ 78106.0 |
| 3-5 | ₹ 77309.0 |
| 5-10 | ₹ 75715.0 |
| 10+ | ₹ 74121.0 |
Bulk discount will be automatically applied during checkout based on quantity.
