Description

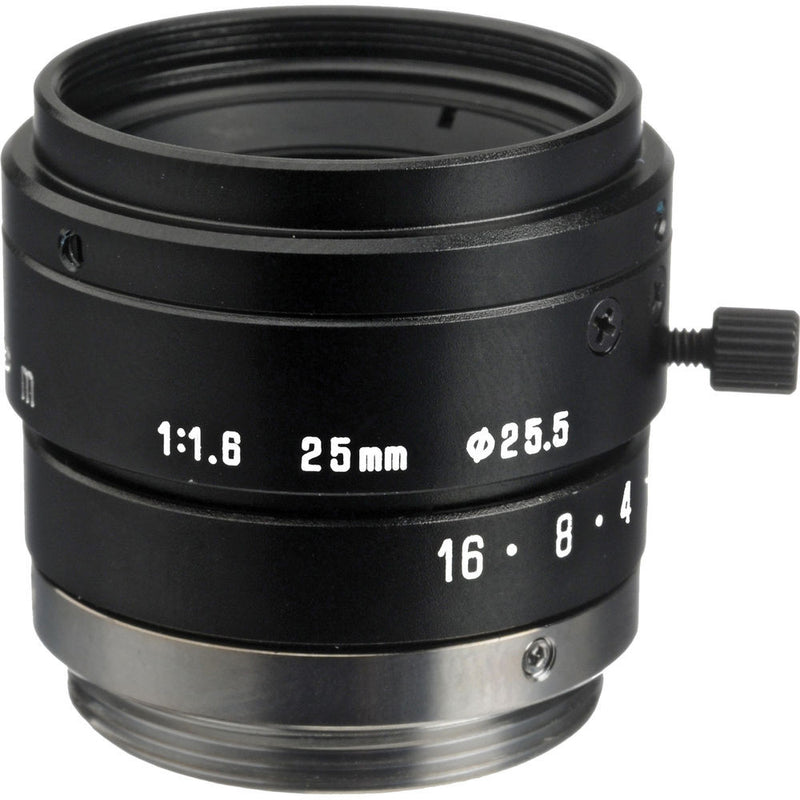

Designed for factory automation and machine vision applications Tamron's 23FM25L 2/3 25mm F/1.6 lens utilizes a screw mechanism to lock-in the focus and iris rings and is ideal for use in environments experiencing significant vibrations. Compact in size with a solid built mechanism, this high resolution lens needs only a distance of 0.3m to achieve sharp image clarity and maintains optimum performance under long periods of use.
- Lock Mechanism
- Features a screw type mechanism to lock-in the iris and focus ring enabling installation in conditions with frequent vibrations.
- Solid Mechanism
- Specifically designed for use with factory automation and machine vision apparatus, this solid mechanism lens is built to endure long periods of factory operation.
- Compact
- Features a compact design to fit the dimensional requirements of today's machinery.
- Closer MOD
- Uses superior optics and an advanced mechanical construction to achieve a Minimum Object Distance of less than 0.3m.
- Uniform Filter Size
- With a uniform filter size of M25.5 PO.5, this lens readily accepts UV, polarizer, red, green and blue filters.
UPC: 725211917052
| Focal Length | 25mm |
| Mount Type | C |
| Iris Range | F/1.6 to 16 |
| Iris Operation | Manual with lock |
| Focus Operation | Manual with lock |
| Angle of View | 1/3": 11.0° x 8.2° 1/2": 14.6° x 11.0° 2/3": 20.0° x 15.0° |
| Effective Diameter | 16.0mm/10.8mm |
| Minimum Object Distance (M.O.D.) | 8.3" (0.21mm) |
| Back Focus | 11.60mm (in air) |
| Filter Size | M25.5 P=0.5 |
| Maximum Diameter | 1.1" (29mm) |
| Overall Length | 1.0" (25.5mm) |
| Weight | 1.4 oz (40 g) |
| Packaging Info | |
|---|---|
| Package Weight | 0.15 lb |
| Box Dimensions (LxWxH) | 2.8 x 2.7 x 1.8" |
In the Box
Tamron 23FM25L 2/3" 25mm F/1.6 Standard High Resolution C-Mount Lens with Lock
- 2 Years parts & labor warranty
