Description

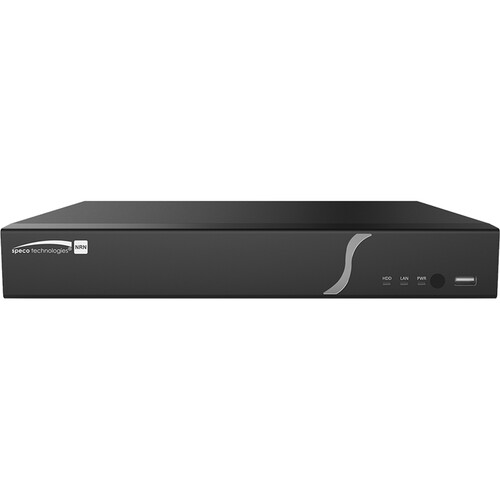

Speco Technologies N32NRN Overview
Record from and manage up to 32 cameras at resolutions up to 8MP with the N32NRN 32-Channel 8MP NVR with 24TB HDD from Speco Technologies. This recorder is equipped with eight SATA ports that each support an HDD up to 20TB, for a maximum capacity of 160TB (24TB preinstalled). H.265 and H.264 video codecs keep file sizes manageable while maintaining the best quality possible.
This NDAA-compliant NVR supports two-way audio and up to 128 users. It has a VGA and two HDMI ports for video output to external monitors (available separately).
Up to 8MP recording resolution at 30 fps
H.265 and H.264 video codecs
RCA audio input and output
2 x HDMI and 1 x VGA video outputs
Optional PoE switch available separately
1 x USB 3.0 and 2 x USB 2.0 ports
Compatible with SecureGuard and Speco Blue mobile app for iOS and Android
People and vehicle classification analytics
Face Detection Analytics Features
32-channel facial detection/recognition
18 pictures per second comparison capability
Facial database stores 10,000 face pictures across 32 libraries
Database management enables the user or admin to add, modify, delete, and search for face pictures
In the Box
- Speco Technologies N32NRN 32-Channel 8MP NVR with 24TB HDD
- Rack Ears
- Remote Control
- Limited 5-Year Manufacturer Warranty (NVR)
- Limited 3-Year Manufacturer Warranty (HDD)
Speco Technologies N32NRN Specs
Key Specs
| Number of Channels |
32
|
| Playback Resolution |
HDMI:
3840 x 2160 (4K) VGA: 1920 x 1080 (1080p) |
| Recording Resolution |
720p, 960p, 960H, CIF, D1, 1.3 MP, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP at 30 fps
|
| PTZ Support |
Yes
|
| Throughput |
160 Mb/s (Incoming)
160 Mb/s (Outgoing) |

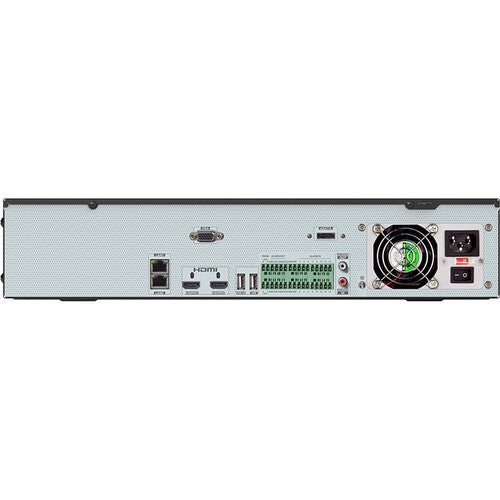

| A/V I/O |
1x HDMI
1x VGA 1x RCA Audio Input 1x RCA Audio Output |
| Communication I/O |
2x RJ45
1x RS-485 2x USB-A 2.0 1x USB-A 3.0 / 3.1/3.2 Gen 1 |
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Installed Drive |
24 TB Hard Drive
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: Speco Blue App, SecureGuard App |
General
| Number of Channels |
32
|
| Playback Resolution |
HDMI:
3840 x 2160 (4K) VGA: 1920 x 1080 (1080p) |
| Recording Resolution |
720p, 960p, 960H, CIF, D1, 1.3 MP, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP at 30 fps
|
| PTZ Support |
Yes
|
| Throughput |
160 Mb/s (Incoming)
160 Mb/s (Outgoing) |
| IP Camera Support |
32
|
| Decoding Resolution |
1 Channel:
12 MP at 20 fps 12 Channels: 1080p |
| 2-Way Audio |
Yes
|
Connectivity
| A/V I/O |
1x HDMI
1x VGA 1x RCA Audio Input 1x RCA Audio Output |
| Communication I/O |
2x RJ45
1x RS-485 2x USB-A 2.0 1x USB-A 3.0 / 3.1/3.2 Gen 1 |
| Audio I/O |
32x Input (Network)
1x Input 1x Output |
| System Connection |
1x eSATA
8x SATA |
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Maximum User Access |
128
|
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, HTTPS, IGMP, IPv4, IPv6, NTP, ONVIF, PPPoE, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP
|
Compatibility
| Supported Video Codecs |
H.264, H.265
|
| Supported Audio Codecs |
G.711A, G.711U
|
| Backup Method |
External HDD, USB Drive
|
| Supported IEEE Standards |
802.1x
|
Computing
| Optical Drive |
No
|
System
| Installed Drive |
24 TB Hard Drive
|
| Max Capacity Supported |
20 TB (Each Drive)
160 TB (Total) |
| Number of Bays |
8x Internal
|
| RAID |
RAID 0/1/5/6
|
Software System Requirements
| Mobile App Compatible |
Yes: Android & iOS
App Name: Speco Blue App, SecureGuard App |
Notifications
| Alarm I/O |
16x Input
4x Output |
| Event Trigger |
Analytics
|
| Notification Type |
Email, SNMP
|
System Functions
| Search Modes |
Event, Face, Smart Search, Timeline
|
| Recording Modes |
Analytics, Event, Manual, Motion, Sensor
|
| Fisheye Dewarping |
No
|
Electrical
| Power Consumption |
30 W (Without HDD)
|
| Power Supply |
250 W
|
| Power Supply Type |
External
|
Environmental
| Operating Temperature |
50 to 122°F / 10 to 50°C
|
| Operating Humidity |
10 to 90%
|
Physical
| Built-In Display |
No
|
| Certifications |
FCC, NDAA
|
| LED Indicators |
No
|
| Dimensions (W x D x H) |
17.2 x 17.1 x 3.5" / 436.9 x 434.3 x 88.9 mm
|
