Description

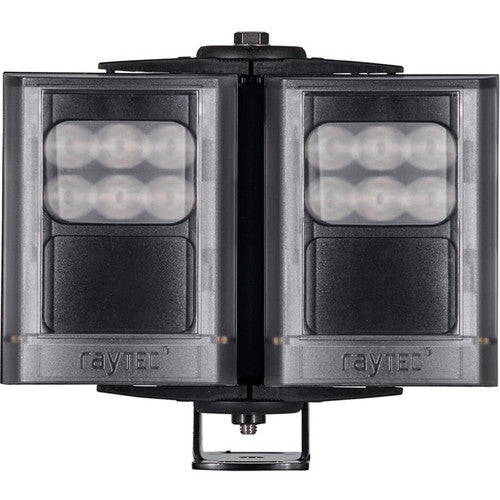

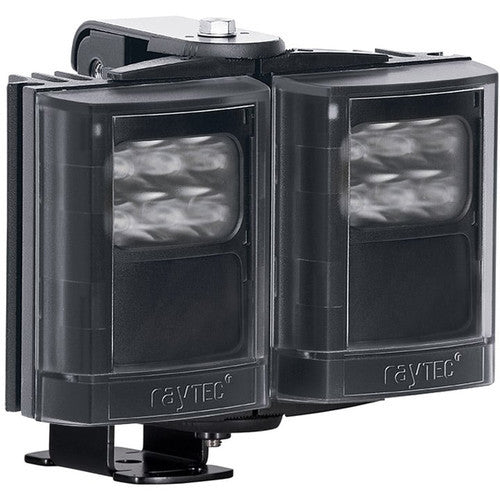

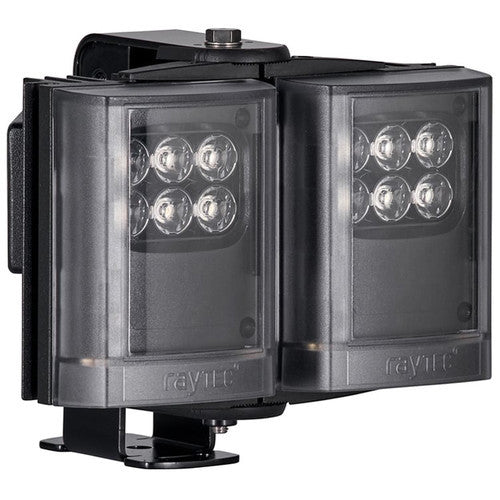

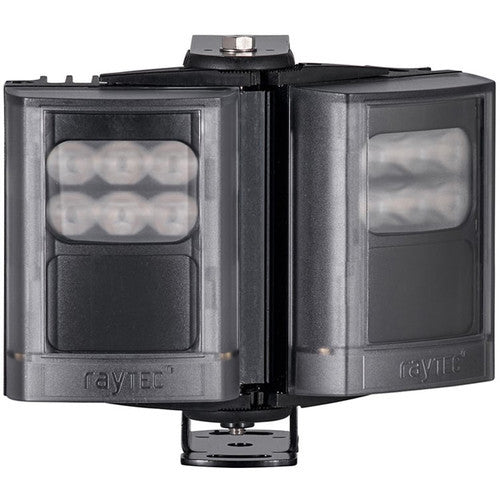

The black VAR2-i2-2 Medium-Range Semi-Covert Infrared Illuminator from Raytec uses PLATINUM Elite SMT LED technology to achieve operating distances of up to 394'. It features an interchangeable lens system with Hot-Spot Reduction Technology and Adaptive Illumination to deliver even illumination. The Adaptive Illumination allows the installer to adjust the angle of the light projection from a single unit to fit the specific demands of any installation. With the optional hand-held remote control, this illuminator makes installation and commissioning quick and easy.
-
- Utilizes PLATINUM Elite SMT LED technology together with Cool Running thermal management system
- Angle of illumination can be quickly adjusted by changing the VARIO holographic lens insert, to match the specific camera field of view
- Hot-Spot Reduction Technology delivers a highly diffused, elliptical beam shape and prevents overexposure of foreground objects
- LED status indicator for quick operational feedback on status and performance of the illuminator
- Programming inputs on both the VARIO remote control (not included) and on the VARIO2 illuminator can be disabled if required
- Built-in green features such as power adjust, telemetry control, and timer function enhance the potential for energy savings
- Supports power adjusting from 20 to 100%
- Built-in photocell for automatic on/off operation
- Photocell following output
- Features double panels
Raytec VARIO 2 specs
| Maximum Operating Distance | 394' / 120 m |
| Input | 12 VAC / 24 VDC |
| Consumption | 20 W maximum |
| Beam Pattern | Elliptical with HRT (Hot-spot Reduction Technology) |
| Beam Angle | 10 x 10° 35 x 10° (fitted as standard) 60 x 25° 80 x 30° (optional) 120 x 50° (optional) |
| Distance | Narrow Angle Distance: 394' / 120 m at 10° 256' / 78 m at 35° 177' / 54 m at 60° 118' / 36 m at 80° 85' / 26 m at 120° Wide Angle Distance: 279' / 85 m at 20° 180' / 55 m at 70° 125' / 38 m at 120° 89' / 27 m at 140° 69' / 21 m at 180° |
| LED | 12 x Platinum Elite SMT LEDs |
| Wavelength | 850 nm |
| Panels | Double |
| IP Rating | IP66 |
| Temperature Range | -58 to 122°F / -50 to 50°C |
| Cable Length | 8.2' / 2.5 m |
| Dimensions | 6.0 x 5.0 x 2.5" / 159 x 144 x 63 mm approximately |
| Weight | 3.3 lb / 1.5 kg |
In the Box
Raytec VAR2-i2-2 Medium-Range Semi-Covert Infrared Illuminator (850nm, Black)
- 10 x 10° Lens
- 60 x 25° Lens
- Adaptive Illumination Mounting Bracket
- Limited 5-Year Warranty
