Description
- Visible Light for Color CCTV Cameras
- 32 SMT-Enabled LEDs
- Built-in Photocell (IR On / Off)
- Illumination Distance up to 643'
- 112' Horizontal Field of View
- Photocell Following Contact
- Telemetry Input for Remote Switching
- IP67 Weatherproof Rating

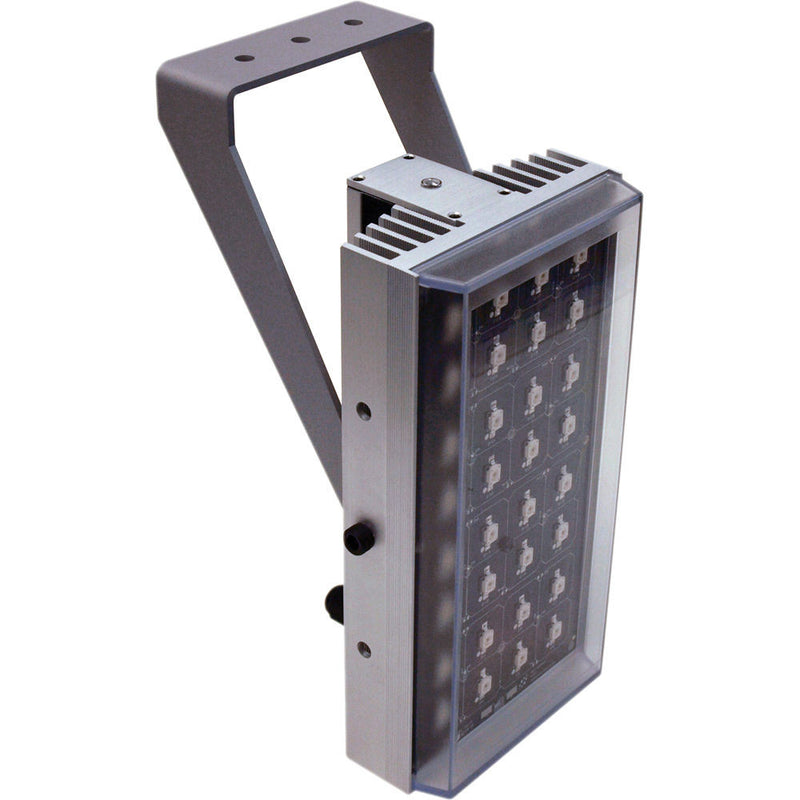

The silver WL643 Series Super Long-Range White Light Illuminator from Iluminar is a visible light illuminator for color CCTV cameras. This illuminator features high-power SMT (Surface Mount Technology)-enabled LEDs with current-limited integral control circuitry. It provides illumination up to a distance of 643' (196m) and offers an illumination angle of 10�. It also has a built-in photocell and comes with a wall mounting bracket.
The IP67-rated and vandal-proof illuminator can be used outdoors. The hardened housing provides protection from harsh weather conditions and rapid temperature variations ranging from -58 to 140?F (-50 to 60?C).
- Super long-range white light illuminator with SMT LED technology
- Provides visible light for color CCTV cameras
- Illumination distance up to 643' (196m) and illumination angle up to 10�
- 112' (34m) horizontal field of view
- Energy efficient with low power consumption of 52W
- IP67 weatherproof rating
- Built-in photocell with IR on/off
- Photocell following contact
- Telemetry input for remote switching
- Pressure equalization vent prevents thermal expansion & pressure cycling
- Silver anodized finish
- Silver powder-coated stainless steel wall mount
In the Box
Iluminar WL643 Series Super Long-Range White Light Illuminator (643', 10�, Silver)
- M6 Allen Key
- Limited 5-Year Warranty
| Illumination Angle | 10� |
| Illumination Distance | 643' (196 m) |
| Horizontal Field-of-View | 112' (34 m) |
| Lumen Output | 3712 lumens |
| Wavelength | Visible Spectrum: 400 to 750 nm |
| Color Temperature | 6500 K |
| Color Rendering Index | 74-80+ |
| Electronics | High-efficiency surface mount high-power LEDs with advanced current limited integral control circuitry |
| Number of SMT LEDs | 32 |
| Photocell | Adjustment via potentiometer |
| Illumination | Adjustment via potentiometer |
| Mount | Silver, powder-coated stainless steel wall mount Adjustable via M6 Allen key (included) |
| Construction | Robust aluminum extrusion |
| Front Window | Polycarbonate high transmittance protective (vandal-proof) clear |
| Interface Connector | Photocell following contact & remote telemetry input |
| Power Cable | 9' (3 m) |
| Input Voltage | 12 to 32 VDC or 24 VAC |
| Input Current | 2.2 A at 24 VAC |
| Power Consumption | 52 W |
| IP Rating | IP67 in accordance with EN60529:1992 |
| Certifications | Safety: EN60598:2004 Electrical Safety EN60825-1 Laser Eye Safety EMC: EN61000, FCC part 15.107 15.108 Class B WEEE directive 202/96/EC RoHS directive 202/95/EC |
| Operating Temperature | -58 to 140?F (-50 to 60?C) |
| Dimensions | 8.39 x 4.33 x 3.07" (21.30 x 11.00 x 7.80 cm) |
| Weight | 3.90 lb (1.75 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 7.0 lb |
| Box Dimensions (LxWxH) | 12.0 x 12.0 x 10.0" |
