Iluminar IL-POE35NA Overview
The IL-PoE35 Series Single Port High Power / PoE Plus Midspan Injector from Iluminar supports powering IP end devices such as PoE powered illuminators over an Ethernet cable. It adds up to 35W of continuous power at 48 VDC to unused (non-data) wires in a standard CAT5/5e/6 Ethernet cable. It delivers both data and power over a single Ethernet cable to a PoE-enabled end device that is designed to receive both data and power through its RJ45 connector. The second RJ45 port of the injector passes only data through the Ethernet switch. The maximum supported cable distance from the Ethernet switch to the end IP device is 328' (100m). This midspan injector includes a power cord with a North American type plug.

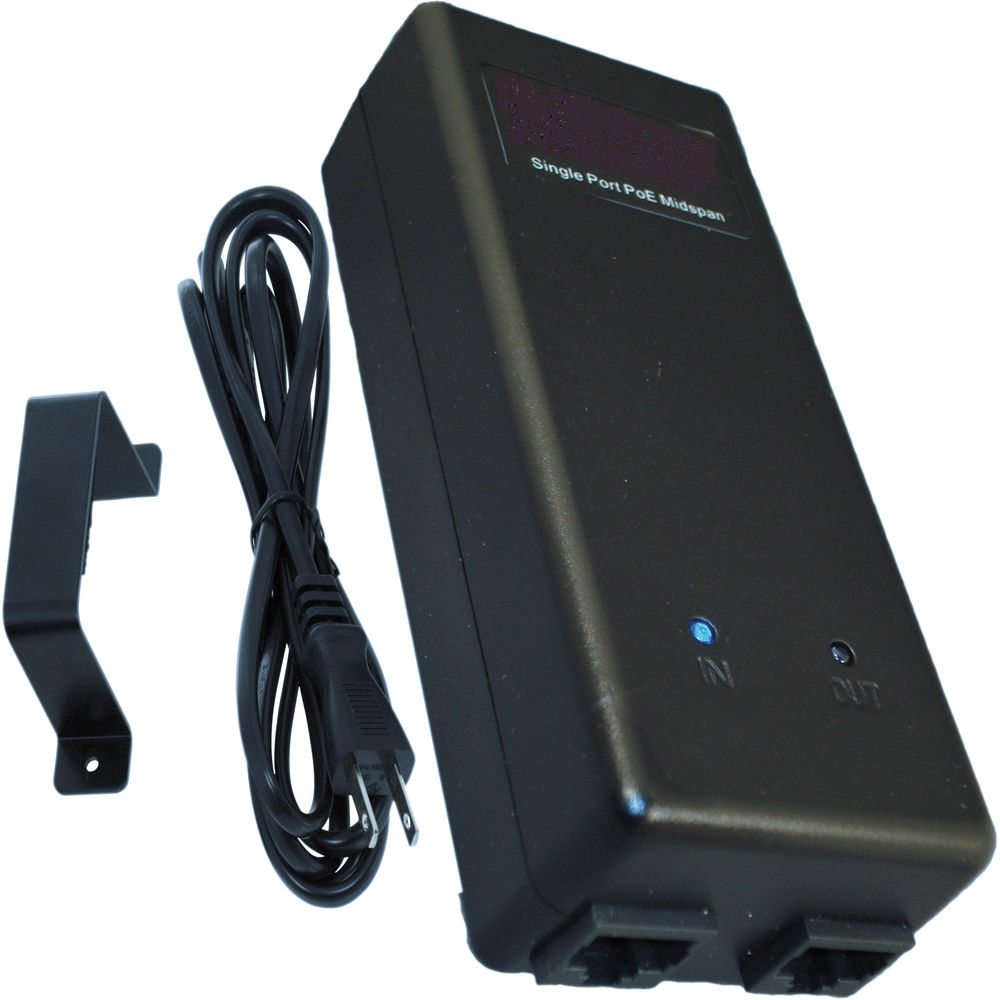

In the Box
- Iluminar IL-PoE35 Series Single Port High Power / PoE Plus Midspan Injector with North American Power Cord
- Mounting Bracket
- North American Power Cord
- Limited 2-Year Manufacturer Warranty
Iluminar IL-POE35NA Specs
Power Cord |
Removable IEC320 inlet 2-pin C8 cord with North American plug
|
Power Supply |
Single, internal
|
Voltage Range |
Range: 90 to 264 VAC auto sensing
Rating: 100 to 240 VAC |
Frequency |
Range: 47 to 63 Hz
Rating: 50 to 60 Hz |
In-Rush Current |
60 A maximum @ 240 VAC
|
PoE Class |
IEEE 802.3af & 802.3at with class detection
|
Pin Assignments |
Power on Data Pins: 3 & 6 (+), 1 & 2 (-)
|
Output Voltage |
+56 VDC (+1 V / -2 V)
|
Maximum Power Supported |
On Port: 35 W (class 4) @ 104°F (40°C) (exceeds PoE standard)
|
Load |
Minimum: 10 mA
Maximum: 0.35 A |
Regulation |
Line/Load: ±5%
|
Efficiency |
80% (typical) at maximum load & 120 VAC, 60 Hz, class 4
|
Hold-Up Time |
10 ms
|
Throughput |
10 Mb/s Ethernet, 100 Mb/s Fast Ethernet, or 1000 Mb/s Gigabit
|
Connector Type |
Non-shielded RJ45; meets EIA 568A and 568B
|
Operating Temperature |
-4 to 104°F (-20 to 40°C) @ 35 W
-4 to 131°F (-20 to 55°C) @ 25 W -4 to 140°F (-20 to 60°C) @ 20 W |
Relative Humidity |
5 to 90%, non-condensing
|
Compatible Devices |
Any PoE compliant device
|
Wiring Distance |
328' (100 m) between Ethernet switch and PoE-enabled end device
|
LED Indicators |
Display power status
|
Surge Protection |
Over voltage current & short circuit protected
|
Bracket Type |
Wall mounting bracket
|
Safety Approvals |
FCC, CE, UL/cUL
|
Dimensions |
5.0 x 2.0 x 1.4" (12.8 x 5.1 x 3.5 cm)
|
Weight |
6.3 oz (178.6 g)
|
Box Dimensions (LxWxH) |
12 x 8 x 6"
|
