Description

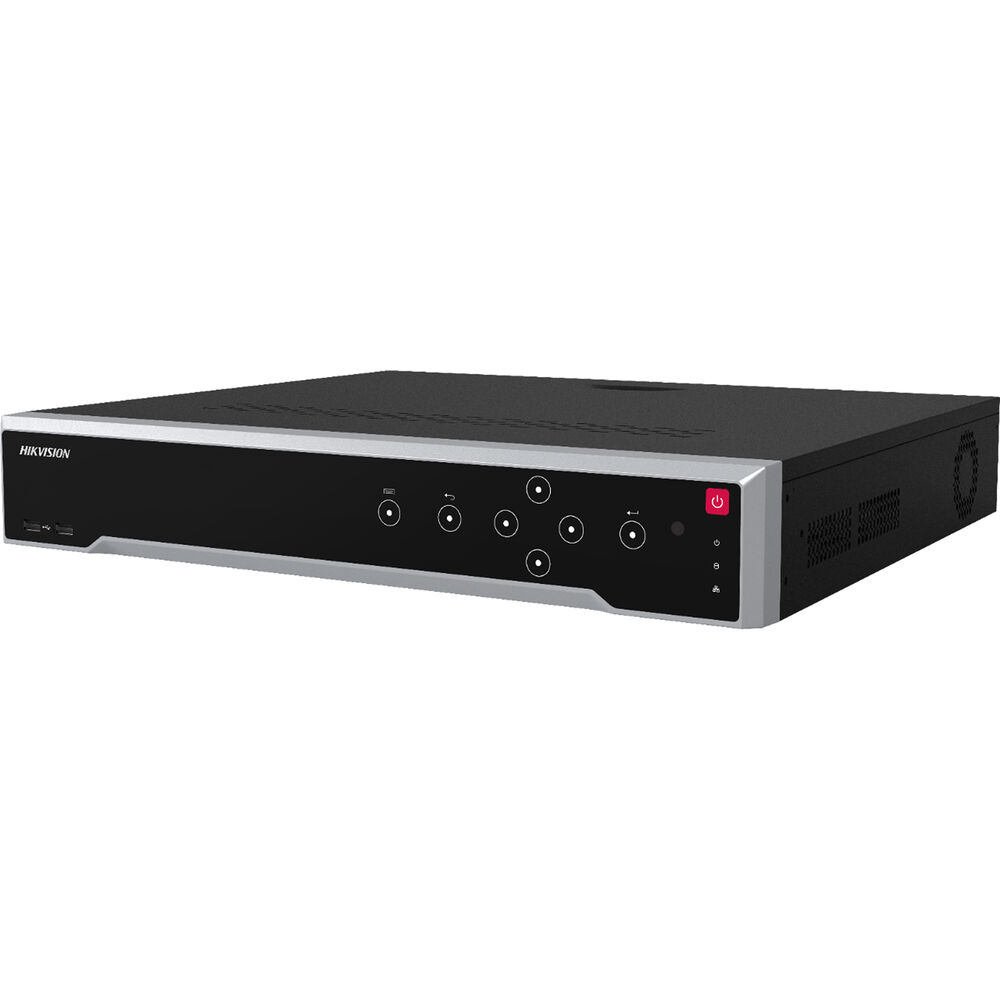

Hikvision DS-9664NI-M8 Overview
Record from and manage up to 64 cameras with the M Series DS-9664NI-M8 64-Channel 8K NVR with 48TB HDD from Hikvision. This NVR supports IP cameras up to 32MP. It is equipped with eight SATA ports that each support an HDD up to 14TB, for a maximum capacity of 112TB (48TB preinstalled). H.265+, H.265, H.264+, and H.264 video compressions keep file sizes manageable while maintaining the best quality possible.
This NVR supports two-way audio. Two HDMI and two VGA ports enable video output to an external monitor at up to 8K resolution (HDMI output 1 only).
Recording resolution up to 32MP
Dual-stream recording saves bandwidth
TLS encryption for secure transmission stream
16-channel synchronous playback
Smooth streaming technology
Hik-Connect enables seamless network management
Supports web access without plug-in
Smart & POS Functions
Supports multiple VCA (Video Content Analytics) events
Configurable camera smart functions include: VCA detection (motion, line crossing, intrusion), heat mapping, ANPR (automatic number-plate recognition), and people counting
POS information overlay on live view and playback
POS-triggered recording and alarm
UPC: 842571146677
In the Box
- Hikvision M Series DS-9664NI-M8 64-Channel 8K NVR with 48TB HDD
- Limited 3-Year Manufacturer Warranty
Hikvision DS-9664NI-M8 Specs
Key Specs
| Number of Channels |
64
|
| Playback Resolution |
HDMI (Output 1):
7680 x 4320 at 30 Hz 3840 x 2160 at 60 Hz HDMI (Output 2): 3840 x 2160 at 60 Hz VGA (Output 1): 1920 x 1080 at 60 Hz VGA (Output 2): 1920 x 1080 at 60 Hz |
| Recording Resolution |
1080p, 720p, 4CIF, 2CIF, DCIF, QCIF, CIF, UXGA, VGA, 3 MP, 4 MP, 5 MP, 6 MP, 7 MP, 8 MP, 12 MP, 24 MP, 32 MP
|
| Throughput |
400 Mb/s (Incoming)
400 Mb/s (Outgoing) |
| A/V I/O |
2x HDMI Output
2x Speaker Output 1x BNC CVBS Output (1 V p-p, 75 Ohm) 1x RCA Audio Output (1 Kilohm, Linear) 1x RCA Audio Input (2 V p-p, 1 Kilohm) |
| Communication I/O |
2x RJ45 Gigabit Ethernet
1x RS-485 (Full-Duplex) 1x RS-232 2x USB-A 3.0 / 3.1/3.2 Gen 1 2x USB-A 2.0 |
| Wi-Fi |
Yes
|
| Bluetooth |
Yes
|
| Installed Drive |
48 TB Hard Drive
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: Hik-Connect |
General
| Number of Channels |
64
|
| Playback Resolution |
HDMI (Output 1):
7680 x 4320 at 30 Hz 3840 x 2160 at 60 Hz HDMI (Output 2): 3840 x 2160 at 60 Hz VGA (Output 1): 1920 x 1080 at 60 Hz VGA (Output 2): 1920 x 1080 at 60 Hz |
| Recording Resolution |
1080p, 720p, 4CIF, 2CIF, DCIF, QCIF, CIF, UXGA, VGA, 3 MP, 4 MP, 5 MP, 6 MP, 7 MP, 8 MP, 12 MP, 24 MP, 32 MP
|
| Throughput |
400 Mb/s (Incoming)
400 Mb/s (Outgoing) |
| IP Camera Support |
64
|
| Decoding Resolution |
2 Channels:
32 MP at 30 fps 8 Channels: 8 MP at 30 fps 16 Channels: 4 MP at 30 fps 32 Channels: 1080p at 30 fps |
| 2-Way Audio |
Yes
|
Connectivity
| A/V I/O |
2x HDMI Output
2x Speaker Output 1x BNC CVBS Output (1 V p-p, 75 Ohm) 1x RCA Audio Output (1 Kilohm, Linear) 1x RCA Audio Input (2 V p-p, 1 Kilohm) |
| Communication I/O |
2x RJ45 Gigabit Ethernet
1x RS-485 (Full-Duplex) 1x RS-232 2x USB-A 3.0 / 3.1/3.2 Gen 1 2x USB-A 2.0 |
| Audio I/O |
1x Input
1x Output |
| System Connection |
8x SATA
1x eSATA |
| Wi-Fi |
Yes
|
| Bluetooth |
Yes
|
| Network Protocols |
DDNS, DHCP, DNS, HTTP, HTTPS, IPv4, IPv6, NFS, NTP, RTSP, SADP, SMTP, SNMP, TCP/IP, UPnP, iSCSI
|
Compatibility
| Supported Video Codecs |
H.264, H.264+, H.265, H.265+
|
| Supported Audio Codecs |
AAC, G.711A, G.711U, G.722, G.726, MP2L2, PCM
|
Computing
| Optical Drive |
No
|
System
| Installed Drive |
48 TB Hard Drive
|
| Max Capacity Supported |
14 TB (Each Drive)
112 TB (Total) |
| Number of Bays |
8x Internal
|
| RAID |
RAID 0/1/5/6
|
Software System Requirements
| OS Compatibility |
Windows
macOS |
| Mobile App Compatible |
Yes: Android & iOS
App Name: Hik-Connect |
Notifications
| Alarm I/O |
16x Input
9x Output |
| Event Trigger |
Analytics
|
System Functions
| Recording Modes |
Alarm, Analytics
|
| Dual Streaming |
Yes
|
| Multi-Screen Configuration |
2 (Primary Display, Secondary Display)
|
| Fisheye Dewarping |
Yes
|
Electrical
| Power Consumption |
50 W (Without HDD)
|
| Power Supply Type |
External
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
Environmental
| Operating Temperature |
14 to 131°F / -10 to 55°C
|
| Operating Humidity |
10 to 90%
|
Physical
| Built-In Display |
No
|
| Certifications |
CE, FCC
|
| LED Indicators |
Yes
|
| Rack Form Factor |
2 RU
|
| Dimensions (W x D x H) |
17.5 x 18.3 x 3.7" / 445.0 x 465.0 x 93.0 mm
|
| Weight |
22 lb / 10 kg
|
Packaging Info
| Package Weight |
34 lb
|
| Box Dimensions (LxWxH) |
23.5 x 22.5 x 9.5"
|
