Description
Hikvision T7216U4TA12C Overview

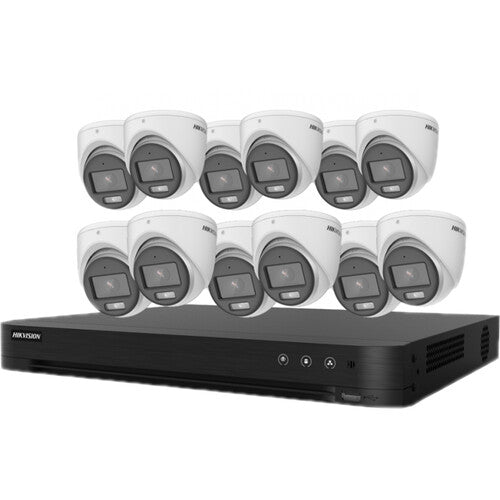

The ColorVu T7216U4TA12C TurboHD 16-Channel DVR with 4TB HDD & 12 x 5MP Turret Cameras Kit from Hikvision includes an iDS-7216HUHI-M2/S TurboHD 16-Channel DVR with 4TB HDD, along with 12 x DS-2CE70KF0T-MFS 5MP Outdoor AHD turret cameras for an indoor/outdoor surveillance solution.
Record from and manage up to 16 local analog cameras at resolutions up to 8MP with the AcuSense iDS-7216HUHI-M2/S TurboHD 16-Channel DVR with 4TB HDD from Hikvision. HD-TVI (up to 8MP), AHD (up to 5MP), HD-CVI (up to 4MP), and CVBS signals are supported. Additionally, this DVR supports up to 16 IP cameras if Enhanced IP Mode is enabled and no analog cameras are used. It is equipped with two SATA ports that support HDD storage up to 20TB (4TB preinstalled). H.265+, H.264+, H.265, and H.264 video compressions keep file sizes manageable while maintaining the best quality possible. Two-way audio communication is supported.
This DVR features motion detection and perimeter protection with human/vehicle analysis. It has VGA and HDMI video outputs to connect to external monitors.
Monitor your surroundings with the ColorVu DS-2CE70KF0T-MFS 5MP Outdoor Analog HD Turret Camera from Hikvision. This unit uses a 5MP progressive scan CMOS sensor to transmit 2960 x 1665 resolution video at up to 20 fps. An auxiliary white light provides up to 66' of illumination for recording full color video in low-light conditions. The camera's 2.8mm fixed lens delivers a 102° horizontal field of view. A built-in microphone, along with a coaxial input enables the camera to pick up audio. Intruders can be kept at bay thanks to a light alarm. HD-TVI, HD-CVI, AHD, and CVBS signal outputs are supported.
This camera is housed in an IP67-rated metal enclosure that is suitable for outdoor use.
In the Box
- Hikvision AcuSense iDS-7216HUHI-M2/S TurboHD 16-Channel DVR with 4TB HDD
- Limited 3-Year Manufacturer Warranty
- 12 x Hikvision ColorVu DS-2CE70KF0T-MFS 5MP Outdoor Analog HD Turret Camera with 2.8mm Lens
- Limited 3-Year Manufacturer Warranty
Hikvision AcuSense iDS-7216HUHI-M2/S TurboHD 16-Channel DVR with 4TB HDD Specs
| Number of Channels |
16
|
| Recording Resolution |
8 MP
|
| IP Camera Support |
16
|
| 2-Way Audio |
Yes
|
| Audio/Video I/O |
AHD, Analog, CVBS, Coaxitron, HD-CVI, HD-TVI: 16 x BNC (1 V p-p, 75 Ohm)
1 x HDMI 1 x VGA 1 x RCA Audio Input (2 V p-p, 1 Kilohm) 1 x RCA Audio Output (1 V p-p, 1 Kilohm, Linear) |
| Communication I/O |
1x RJ45 Gigabit Ethernet
1x RS-485 (Half-Duplex) 1x USB-A 3.0 / 3.1/3.2 Gen 1 (Rear) 1x USB-A 2.0 (Front) |
| Audio I/O |
1x Input
1x Output |
| Supported Video Codecs |
H.264, H.264+, H.265, H.265+
|
| Installed Drive |
4 TB
|
| Recording Modes |
Analytics, Motion
|
| Power Consumption |
Without HDD: 12 VDC at 5 A (19 W)
|
| Signal |
AHD, Analog, HD-CVI, HD-TVI, IP
|
| Number of Channels |
16
|
| Playback Resolution |
HDMI:
4K UHD at 30 Hz 4 MP at 60 Hz VGA: 1080p at 60 Hz CVBS: PAL, NTSC |
| Recording Resolution |
8 MP
|
| PTZ Support |
Yes
|
| Bit Rate |
32 kb/s to 10 Mb/s
|
| IP Camera Support |
16
|
| Dual Streaming |
Yes
|
| Encoding Resolution |
Main: 1080p, 720p, 4CIF, CIF, VGA, WD1, 3 MP, 4 MP, 5 MP, 8 MP
Sub Stream: 1080p, 720p, 4CIF, CIF, VGA, WD1 |
| 2-Way Audio |
Yes
|
| Audio/Video I/O |
AHD, Analog, CVBS, Coaxitron, HD-CVI, HD-TVI: 16 x BNC (1 V p-p, 75 Ohm)
1 x HDMI 1 x VGA 1 x RCA Audio Input (2 V p-p, 1 Kilohm) 1 x RCA Audio Output (1 V p-p, 1 Kilohm, Linear) |
| Communication I/O |
1x RJ45 Gigabit Ethernet
1x RS-485 (Half-Duplex) 1x USB-A 3.0 / 3.1/3.2 Gen 1 (Rear) 1x USB-A 2.0 (Front) |
| Audio I/O |
1x Input
1x Output |
| System Connection |
2x SATA
|
| Wi-Fi |
Yes
|
| Remote Connections |
128
|
| Network Protocols |
DDNS, DHCP, DNS, HTTPS, Hik-Connect, NFS, NTP, ONVIF, PPPoE, SADP, TCP/IP, UPnP, iSCSI
|
| Max Frame Rate |
30 fps (1080p)
|
| Supported Video Codecs |
H.264, H.264+, H.265, H.265+
|
| Supported Audio Codecs |
G.711U
|
| Installed Drive |
4 TB
|
| Max Capacity Supported |
20 TB (Total)
10 TB (Each Drive) |
| Recording Modes |
Analytics, Motion
|
| Search Modes |
Smart Search
|
| Event Trigger |
Analytics, Motion
|
| Power Consumption |
Without HDD: 12 VDC at 5 A (19 W)
|
| Operating Temperature |
14 to 131°F / -10 to 55°C
|
| Operating Humidity |
10 to 90%
|
| Built-In Display |
No
|
| Dimensions (W x D x H) |
15.0 x 12.6 x 1.9" / 380.0 x 320.0 x 48.0 mm
|
| Weight |
4.6 lb / 2.1 kg
|
| Package Weight |
8.43 lb
|
| Box Dimensions (LxWxH) |
17.3 x 15.3 x 5.3"
|
Hikvision ColorVu DS-2CE70KF0T-MFS 5MP Outdoor Analog HD Turret Camera with 2.8mm Lens Specs
| Sensor |
5 MP CMOS
|
| Focal Length |
2.8mm
|
| Lens Field of View |
Horizontal: 102°
Vertical: 56° Diagonal: 122° |
| Video Outputs |
1 x BNC (AHD / HD-CVI / HD-TVI / Composite)
|
| Output Formats |
AHD, HD-TVI:
2960 x 1665 at 20 fps AHD, HD-CVI, HD-TVI: 2560 x 1440 at 30 fps HD-CVI, Composite: 1920 x 1080 at 30 fps |
| Built-In Mic |
Yes
|
| Power Source |
DC
|
| Environmental Protection |
Advertised as Dust Resistant/Outdoor Use/Water Resistant
*Manufacturer Testing: IP67 |
| Illumination |
White LED up to 65.6' / 20 m
|
| Sensor |
5 MP CMOS
|
| Lens Mount |
M12
|
| Focal Length |
2.8mm
|
| Maximum Aperture |
f/1
|
| Lens Field of View |
Horizontal: 102°
Vertical: 56° Diagonal: 122° |
| Day/Night |
Yes
|
| Minimum Illumination |
Color: 0.001 Lux
|
| Shutter Speed |
1/50000 to 1/30 Seconds
|
| Camera Angle Adjustment |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
