Description
- -40�F Weather Protection
- De-Icing/Defrosting Circuitry
- Steady Step Camera Raising/Lowering
- 24VAC / 110VAC / 220VAC Power Inputs
- High Impact Plastic Alloy Construction
- Compatible with Analog/IP PTZ Cameras
- Accommodates Camera Peripherals
- Internal Camera Power Supply (12V/24V)
- IP66 Rated Enclosure
- Heavy Duty Optically Clear Bubble

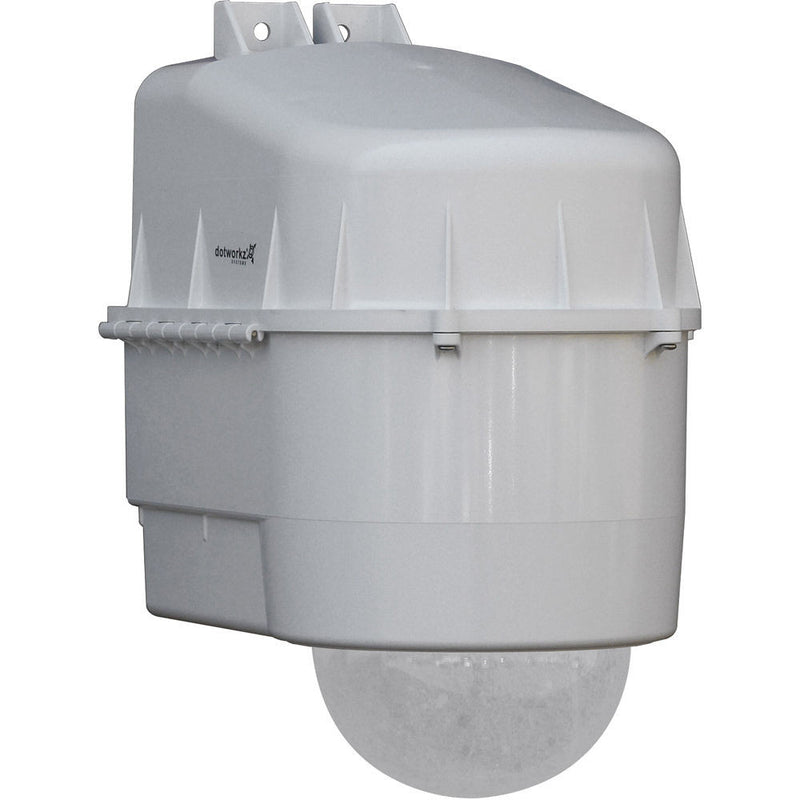

The Dotworkz D3 Ring of Fire De-Icing Enclosure with MVP can be used in extremely cold environments, with its built-in heater system working to shield the camera from temperatures as low as -40�F (-40�C), and its de-icing/defrosting circuitry effective in keeping the viewing window clear from fog and ice. Along with providing excellent cold weather protection, this housing is IP66 rated against dust, water, and salt water air ingress and features IP68 rated connection ports.
The key advantage this D3 model has over the D2 version is that it includes the Steady Step camera mount. Steady Step allows the camera to be raised and lowered without requiring special tools and without the risk of dropping the camera. Steady Step is adjustable to fit all sizes of HD PTZ cameras including the latest tall ones. Because of its rock solid stability Steady Step also eliminates any vibrations inside the housing.
This housing can be powered from a 24VAC, 110VAC or 220VAC power source. It also has internal 12VDC and 24VAC outputs to power an IP or analog camera.
This housing is compatible with most analog or IP PTZ dome cameras and has extra room to accommodate peripherals such as encoders, hard drives, routers, etc. The lower dome is impact resistant and at the same time is optically correct to ensure maximum image sharpness.
- IP and analog camera compatible
- Impact resistant polycarbonate thermal plastic
- Thermostatically controlled de-icing and heating element
- Rated protection down to -40�F
- IP66 rated against dust, water, and salt water air
- IP68 (waterproof) connection ports
- Will not rust or corrode
- Onboard Component mounting space for: routers, cell networks, hard drives, UPS, WiMAX, mesh hardware, etc
- Onboard antenna mounting tab
- Heavy-duty lower lens
- 1-Year Warranty
| Mount Type | Wall mount (optional corner, pole brackets available) |
| Compatible Cameras | Analog or IP PTZ camera |
| Clear or Tinted | Clear |
| Construction | Housing: Dotworkz thermoplastic alloy Bubble: Precision view high impact acrylic |
| Enclosure Rating | IP66 with IP68 connection ports |
| Operating Temperature | Absolute: -40 ~ +140�F (-40 ~ +60�C) Recommended: -40 ~ +120�F (-40 ~ +49�C) |
| Power Input | 24VAC, 110VAC, or 220VAC |
| Power Output | (to camera) IP: 12VDC, 24VDC AC (CCTV): 12VDC, 24VAC |
| Power Consumption | 3 amps @ 115VAC typical at full load |
| Dimensions (WxHxD) | 11.7 x 17.5 x 14.9" (297 x 445 x 378mm) |
| Packaging Info | |
|---|---|
| Package Weight | 15.7 lb |
| Box Dimensions (LxWxH) | 21.8 x 16.1 x 14.5" |
