Description
Dahua Technology 22404DBNR Overview

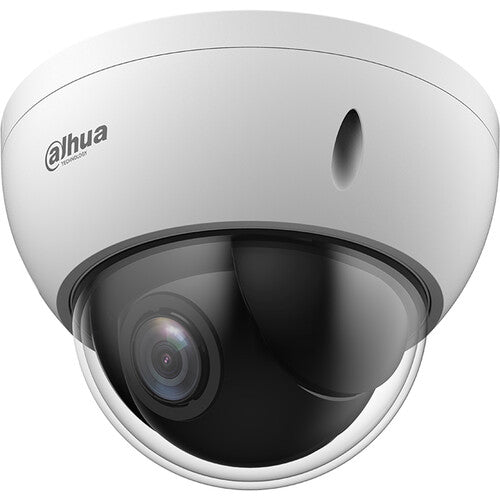

Securely monitor your surroundings with the WizSense Series 22404DBNR 4MP Outdoor Network PTZ Dome Camera from Dahua Technology. This unit uses a 1/2.8" progressive scan STARVIS CMOS sensor to capture 2560 x 1440 resolution video at 30 fps. A 2.8-12mm varifocal lens delivers a 90.3 to 29.4° horizontal field of view. This camera features a 0 to 355° pan range, a 0 to 90° tilt range, and 4x optical zoom. A memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated enclosure for safe outdoor use in areas at risk of vandalism.
PTZ features include: five patterns, eight tours (up to 32 presets per tour), five scans, and activate preset (up to 300)/scan/tour/pattern if there is no command in the specified period
IVS (Intelligent Video System) analytic algorithms for tampering, memory card error, network error, unauthorized access, abandoned/missing object, loitering detection, fast moving, parking detection, crowd gathering, and vehicle/human alarm classification
Perimeter protection (tripwire, intrusion) that detects human/vehicle violations
Smart motion detection that differentiates between and classifies human and vehicle objects, along with minimizing false alarms caused by blowing leaves, animals, or lights
Face detection detects and captures a snapshot of a human face in a defined area within a scene
Predictive Focus Analysis (PFA) technology improves zoom accuracy and decreases focus time
Starlight technology for low-light applications
Triple streaming
Unicast and multicast streaming methods
CBR and VBR
4.92' close focus distance
Additional features include: backlight compensation, highlight compensation, digital wide dynamic range, ?55 dB S/N ratio, white balance, gain control (auto/manual, shutter/gain priority) 2D-DNR/3D-DNR, region of interest, image stabilization, and electronic defog
Up to 20 users
Compatible with Safari (iOS 10 or later), Edge, Chrome 41 or later, Firefox 50 or later, DSS, DMSS, iOS, and Android
6000V surge protection
UPC: 810053977439
In the Box
- Dahua Technology WizSense Series 22404DBNR 4MP Outdoor Network PTZ Dome Camera
- Mounting Hardware
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Dahua Technology 22404DBNRSpecs
Key Specs
| Image Sensor |
1/2.8"-Type CMOS
|
| Focal Length |
2.8 to 12mm
|
| Field of View |
Horizontal: 90.3 to 29.4°
Vertical: 48.5 to 16.6° Diagonal: 105.7 to 33.6° |
| Pan/Tilt |
Manual
Pan: 355° (0 to 355°) at 100°/s Tilt: 90° (0 to 90°) at 60°/s Programmed Pan: 355° (0 to 355°) at 100°/s Tilt: 90° (0 to 90°) |
| Power I/O |
1x RJ45 Input
1x DC Input |
Imaging
| Number of Lenses |
1
|
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 4 Megapixel
|
| IR Cut Filter |
Yes
|
| Day/Night |
Yes
|
| DORI Coverage |
With 2.8 to 12mm Lens:
Detect: At 787.4' / 240.0 m Observe: At 311.02' / 94.80 m Recognize: At 157.48' / 48.00 m Identify: At 78.74' / 24.00 m |
Exposure Control
| Shutter Speed |
1/30000 to 1 Second
|
| Minimum Illumination |
0.005 Lux (Color)
0.0005 Lux (Black and White) |
Lens
| Focal Length |
2.8 to 12mm
|
| Optical Zoom Ratio |
4x
|
| Max Digital Zoom |
16x
|
| Field of View |
Horizontal: 90.3 to 29.4°
Vertical: 48.5 to 16.6° Diagonal: 105.7 to 33.6° |
| Maximum Aperture |
f/1.6 to 3
|
Video
| Automatic Gain Control |
Yes
|
| Max IP Streaming |
H.264, H.264+, H.265, H.265+, MJPEG via RJ45
2560 x 1440 up to 30.00 fps |
| Multi-View Streaming |
Yes, 3 Streams
|
Control
| Pan/Tilt |
Manual
Pan: 355° (0 to 355°) at 100°/s Tilt: 90° (0 to 90°) at 60°/s Programmed Pan: 355° (0 to 355°) at 100°/s Tilt: 90° (0 to 90°) |
| Supported Control Protocols |
Pelco-D
Pelco-P |
Networking
| Security |
HTTPS, IEEE 802.1X, IP Address Filtering
|
| Supported Protocols |
ARP, Bonjour, CGI, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NFS, NTP, ONVIF Profile G, ONVIF Profile S, ONVIF Profile T, PPPoE, QoS Layer 3 DiffServ, RTCP, RTMP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP
|
Interface
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum]
|
| Other I/O |
1x RJ45
|
| Built-In Speaker |
No
|
| Memory |
512 MB RAM / 128 MB Flash
|
| External Storage Options |
NAS
|
System Integration
| Analytics |
Abandoned Object, Camera Sabotage/Tampering, Crowd Gathering, Face Detection, Intrusion Detection, Loitering, Memory Card Error, Motion Detection, Network Error, Object Detection, Object Removal, Parking Detection, People Detection, Unauthorized Access, Vehicle Detection, Vehicle Speed, Virtual-Line Crossing Detection
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
No
|
Power
| PoE Support |
PoE+ 802.3at
|
| Power I/O |
1x RJ45 Input
1x DC Input |
| Power Consumption |
2.3 to 6.1 W
|
General
| Environmental Resistance |
Weather/Dust/Water-Resistant (IP66)
|
| Impact Resistance |
Impact-Resistant (IK10)
|
| Certifications |
CE, IEC, EN, FCC
|
| Operating Conditions |
-22 to 140°F / -30 to 60°C up to 95% Humidity
|
| Storage Conditions |
-22 to 140°F / -30 to 60°C
|
| OS Compatibility |
Android/iOS
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: DMSS |
| Dimensions (W x H x D) |
4.8 x 3.5" / 122 x 89 mm
|
| Weight |
1.1 lb / 0.5 kg (Body Only)
|
Packaging Info
| Package Weight |
1.575 lb
|
| Box Dimensions (LxWxH) |
6.9 x 6.1 x 5.6"
|
