Description
Dahua Technology ITC413-PW4D-Z3 Overview

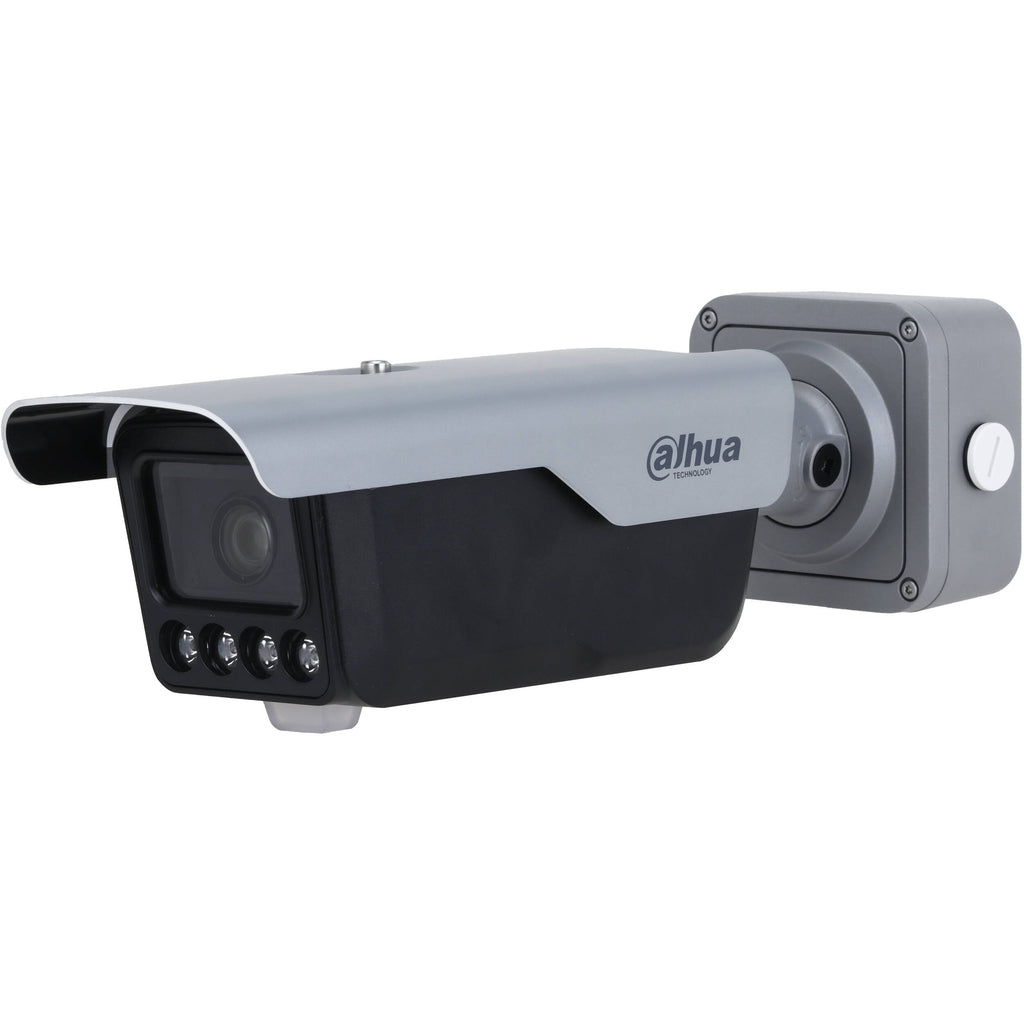

Capture license plate information from moving vehicles day and night with the ITC413-PW4D-Z3 4MP Outdoor Network License Plate Recognition Box Camera from Dahua Technology. This unit recognizes and captures license plates of vehicles traveling at up to 75 mph. It features a 1/1.8" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. Four LEDs (IR and warm LEDs) provide up to 65' of illumination for automatic number-plate recognition (ANPR) and up to 197' of illumination for video monitoring in low-light conditions. The camera's 8-32mm motorized varifocal lens delivers a 39.9 to 15.1° horizontal field of view.
Two-way audio is possible thanks to a built-in speaker and microphone, along with an RCA audio output. Additionally, the camera features active alarm functionality to respond to triggered alarms with configurable automatic responses that include red and blue lights, a siren, and voice prompts via broadcasting a built-in message. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. An onboard memory card slot accepts microSD cards up to 256GB (available separately).
This LPR camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated enclosure that is suitable for safe outdoor use in areas at risk of vandalism.
In the Box
- Dahua Technology ITC413-PW4D-Z3 4MP Outdoor Network License Plate Recognition Box Camera
- Limited 5-Year Manufacturer Warranty
Dahua Technology ITC413-PW4D-Z3 Specs
| Sensor |
4 MP 1/1.8" CMOS
|
| Focal Length |
8 to 32mm
|
| Lens Field of View |
Horizontal: 39.9 to 15.1°
Vertical: 21.8 to 8.5° Diagonal: 46.6 to 17.4° |
| Built-In Mic |
Yes
|
| Power Source |
DC, PoE+ 802.3at (30 W)
|
| Environmental Protection |
Advertised as Dust Resistant/Outdoor Use/Water Resistant
*Manufacturer Testing: IP67 |
| Illumination |
4x 730 nm IR LED, LED Spotlight up to 196.9' / 60 m
|
| Sensor |
4 MP 1/1.8" CMOS
|
| Focal Length |
8 to 32mm
|
| Maximum Aperture |
f/1.6
|
| Zoom |
Optical: 4x
|
| Lens Field of View |
Horizontal: 39.9 to 15.1°
Vertical: 21.8 to 8.5° Diagonal: 46.6 to 17.4° |
| IR Cut Filter |
Mechanical
|
| Day/Night |
Yes
|
| Minimum Illumination |
Color: 0.001 Lux
B&W: 0 Lux |
| Shutter Speed |
1/100000 to 1/25 Seconds
|
| DORI Coverage |
With 8 to 32mm Lens:
Detect: 524.93 Up to 1334.97' / 160.00 Up to 406.90 m Observe: 209.97 Up to 534.12' / 64.00 Up to 162.80 m Recognize: 104.99 Up to 267.06' / 32.00 Up to 81.40 m Identify: 52.49 Up to 133.53' / 16.00 Up to 40.70 m |
| Mobile App Compatible |
No
|
| Streaming Resolution |
2688 x 1520 at 30 fps (39.2 Mb/s MJPEG)
|
| Supported Video Compression |
H.264, H.265, MJPEG
|
| Multi-View Streaming |
Yes, 2 Streams
|
| Automatic Gain Control |
Yes
|
| 1- or 2-Way Audio |
Two-Way
|
| Built-In Mic |
Yes
|
| Built-In Speaker |
Yes
|
| Audio I/O |
Output:
1 x RCA |
| Security |
HTTPS, IEEE 802.1X, MAC Address Filtering, Password Protection
|
| Supported Protocols |
ARP, DDNS, DHCP, DNS, FTP, HTTP, IPv4/v6, NTP, PPPoE, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP
|
| Application Programming Interface (API) |
ONVIF Profiles G, S & T, CGI, ITSAPI, P2P API, SDK
|
| Analytics |
Tampering, Memory Card Error, Network Error, Unauthorized Access, IP Address Conflict, Intrusion, Loitering Detection
|
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Data Streaming |
Yes
|
| Alarm I/O |
2 / 2
|
| Memory |
1 GB RAM / 4000 MB Flash
|
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum]
|
| Internal Storage |
No
|
| Power Source |
DC, PoE+ 802.3at (30 W)
|
| Power Consumption |
17 W
|
| Operating Temperature |
-22 to 149°F / -30 to 65°C
|
| Storage Temperature |
-40 to 158°F / -40 to 70°C
|
| Operating Humidity |
10 to 90%
|
| Environmental Protection |
Advertised as Dust Resistant/Outdoor Use/Water Resistant
*Manufacturer Testing: IP67 |
| IK Rating |
IK10
|
| Inputs/Outputs |
1 x RJ45
1 x Power 2 x Serial 9-Pin (RS-485) |
| Illumination |
4x 730 nm IR LED, LED Spotlight up to 196.9' / 60 m
|
| Video Management Software |
DSS Pro, DSS Express
|
| Certifications |
EN 55024, FCC (Part 15 Class B), as per Manufacturer
|
| Material of Construction |
Aluminum, Plastic
|
| Dimensions |
H: 5.0 x W: 4.8 x L: 15.6" / H: 127.8 x W: 120.8 x L: 396.0 mm
|
| Weight |
5.1 lb / 2.3 kg
|
| Package Weight |
7.585 lb
|
| Box Dimensions (LxWxH) |
17.4 x 9.9 x 9.2"
|
