Description

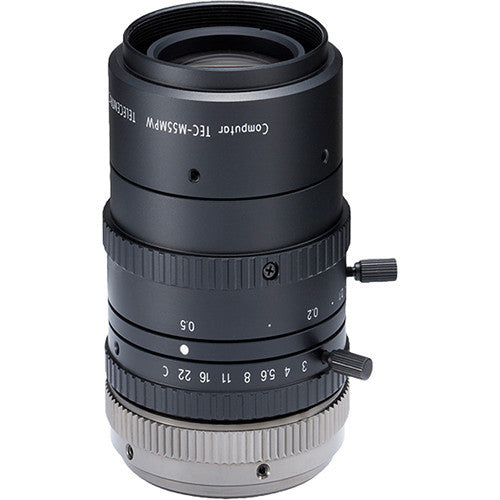

The TEC-M55MPW C-Mount 55mm F/3.0 Telecentric Lens from Computar is designed for use with C-Mount 5MP cameras with 2/3" image sensors. This compact lens offers optical magnification from 0.057x - 0.5x.�
- Compact body design, compatible with C-Mount 5MP sensors
- 0.057x - 0.5x optical magnification
- Relative illuminance more than 80%
- Less than 1% distortion
UPC: 781904052240
In the Box
computar TEC-M55MPW C-Mount 55mm F/3.0 Telecentric Lens
- Limited 3-Year Warranty
| Focal Length | 55 mm |
| Magnification | 0.057x - 0.5x |
| Image Format | 8.8 x 6.6 mm (?11 mm) |
| Operation Range | Iris: F3.0 ? F22C Focus 0.45 - 3.2' (0.14 ? 1 m) |
| Control | Iris: Manual Focus: Manual |
| Object Dimensions at M.O.D. | 0.68 x 0.51" (17.4 x 13.1 mm), 2/3" |
| Relative Illumination | 94% (at 0.057x), 81% (at 0.5x) |
| Effective Lens Aperture | Front: ? 30.8 mm, Rear: ? 10.7 mm |
| Distortion | 2/3 type: 0.5% at 0.057x (y=5.5) 0.6% at 0.5x (y=5.5) |
| Back Focal Length | 17 mm |
| Flange Back Length | 17.526 mm |
| Mount | C-Mount |
| Filter Size | M46.0, P=0.75 mm |
| Operating Temperature | 14 to 122�F (-10 to 50�C) |
| Dimensions | ? 2.32 x 3.66" (59 x 93.1 mm) |
| Weight | 14.1 oz (400 g) |
| Packaging Info | |
|---|---|
| Package Weight | 1.0 lb |
| Box Dimensions (LxWxH) | 5.0 x 3.1 x 3.0" |
