Description
- For 12 and 24 VDC Installations
- Splits Power and Data of Ethernet Cable
- Compatible with Select Axis Accessories
- Provides Up to 4.5A Power
- Can be Powered via Midspan or PoE Switch
- Eliminates the Need for a Power Supply

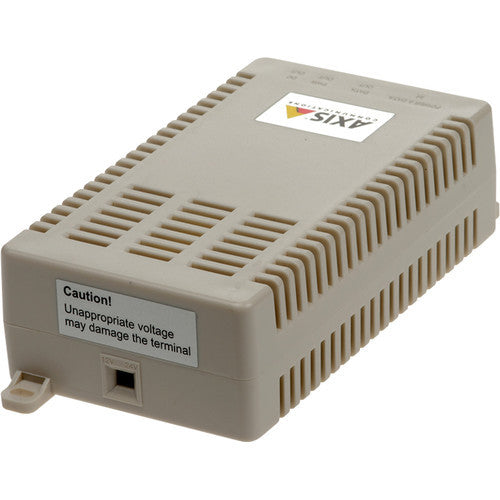

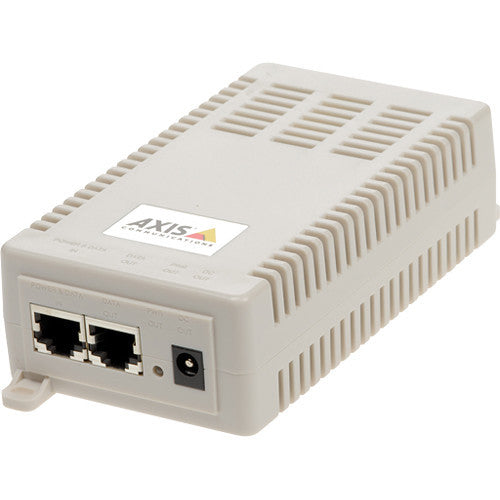

The T8127 60W Splitter from Axis Communications splits the power and data in an Ethernet cable into two separate cables, allowing a network device that has no built-in support for Power over Ethernet (PoE) to be connected to a network and powered. This splitter is compatible with Axis devices such as illuminators, media converters, and more. It provides 12 or 24 VDC with up to 4.5A power and can be powered from any Axis midspan or PoE switch (available separately).
- For Axis illuminators, media converters, and more
- 12 or 24 VDC provides up to 4.5A power
- Easy to use, plug-and-play functionality
| Application | Indoor |
| Power | Input Power: 70 W maximum Output Power: 54 W maximum Output Current at 12 VDC: 4.5 A Output Current at 24 VDC: 2.25 A |
| Connectors | Data/Power In: RJ45 10Base-T/100Base-TX/1000Base-T PoE Data Out: RJ45 10Base-T/100Base-TX/1000Base-T Voltage Switch Selector (12/24 VDC) Power Out: DC barrel connector 3.4 x 1.35 mm Internal Pole: Positive (+) VDC External Pole: Negative (-) VDC |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Operating Humidity | 0 to 90% RH, non-condensing |
| Storage Temperature | -40 to 149°F (-40 to 65°C) |
| Approvals | EN 55022 Class B, EN 55024, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, CE, WEEE, RoHS |
| Dimensions | 1.5 x 2.9 x 5.1" (3.8 x 7.3 x 13 cm) |
| Weight | 0.6 lb (285 g) |
| Packaging Info | |
|---|---|
| Package Weight | 0.85 lb |
| Box Dimensions (LxWxH) | 7.8 x 3.8 x 2.0" |
In the Box
Axis Communications T8127 60W Splitter
- Power Cord Cable
- Cover Sticker
- Limited 3-Year Warranty
