Description

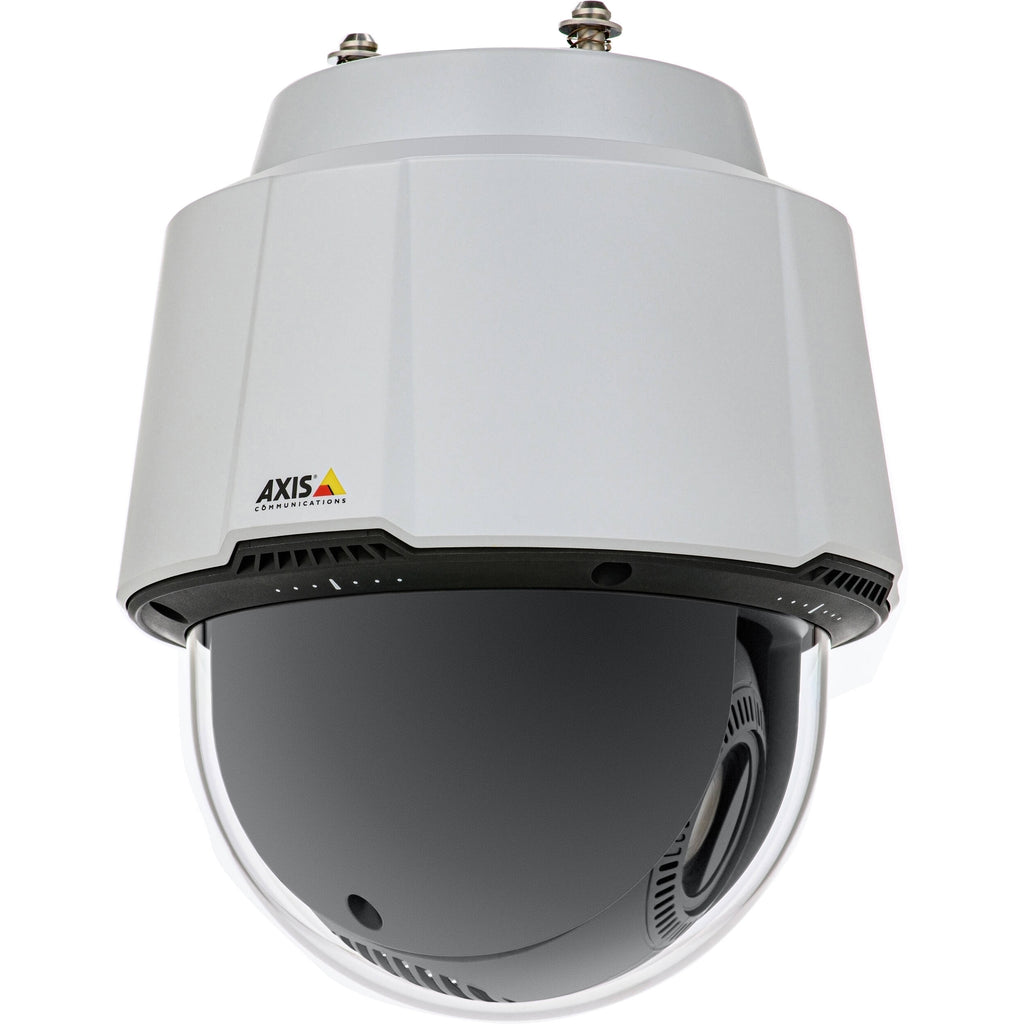

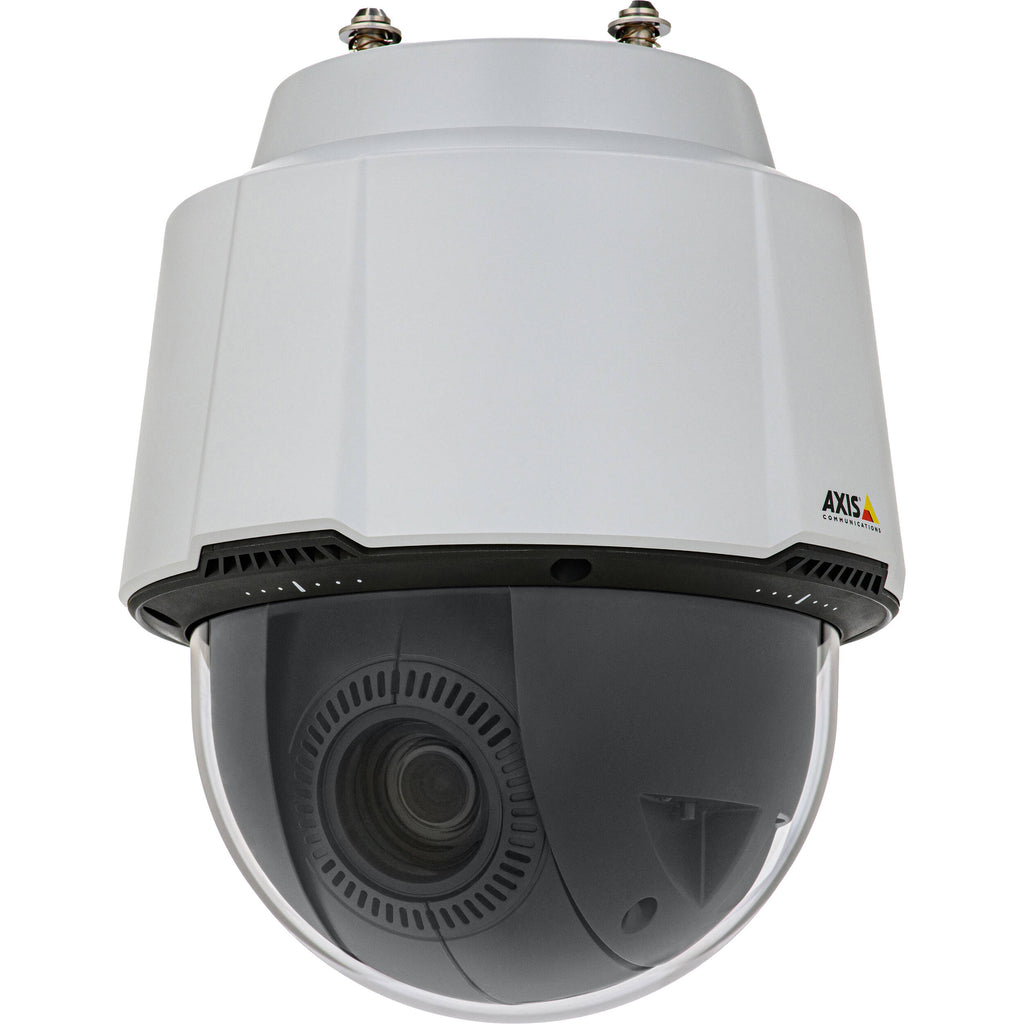

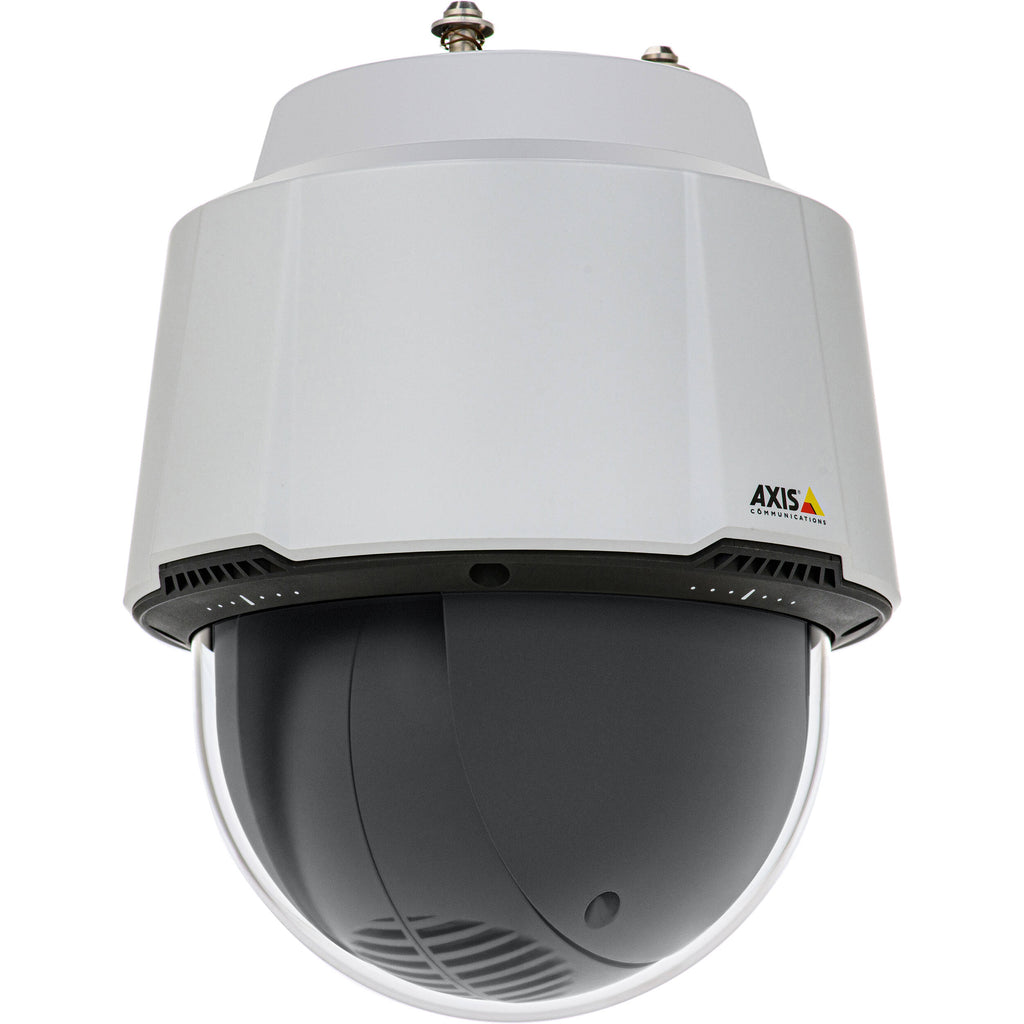

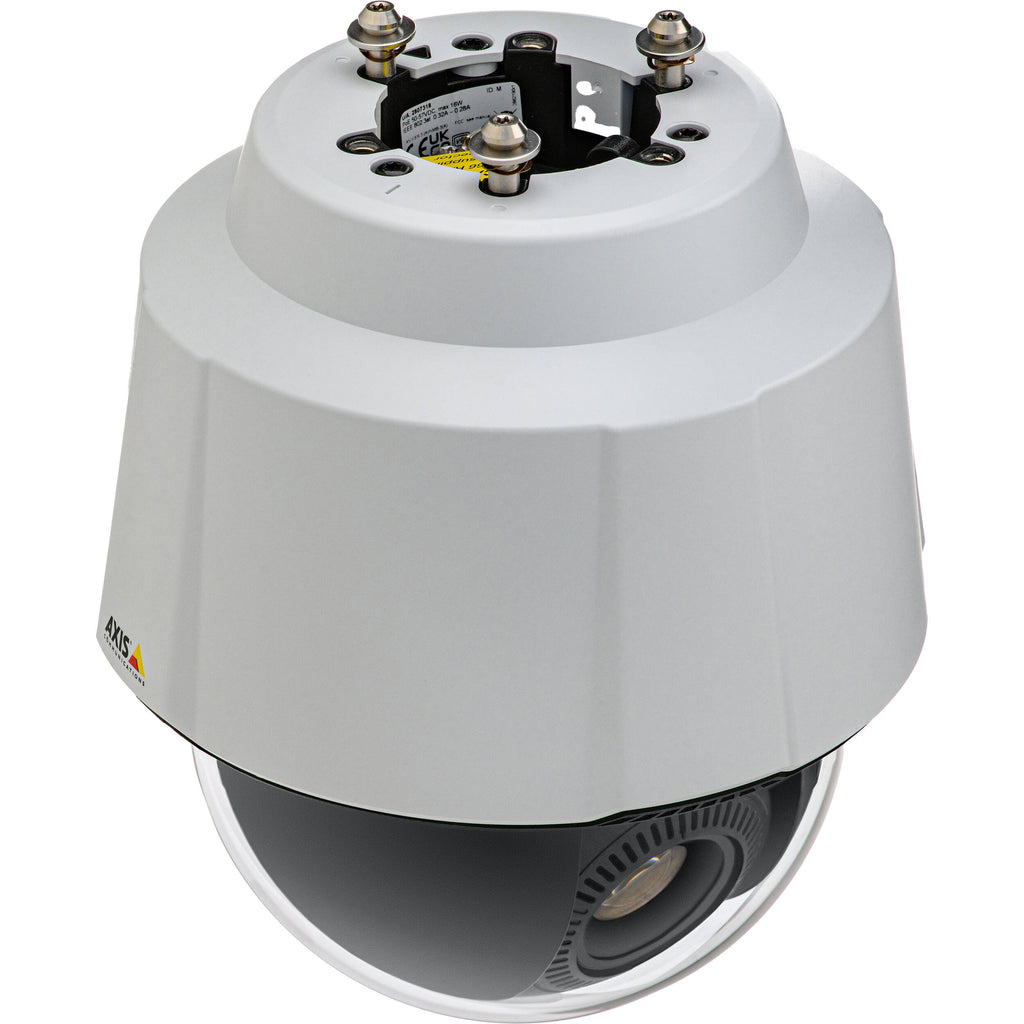

Axis Communications P5654-E Mk II Overview
Monitor an indoor or outdoor area with the P5654-E Mk II 1080p PTZ Network Camera (60 Hz) from Axis Communications. This unit uses a 1/2.8" progressive scan RGB CMOS sensor to capture 1080p resolution video at 60 fps. A 4-84.6mm varifocal lens delivers a 77 to 3.6° horizontal field of view. This camera features endless panning, a 180° tilt range, and 21x optical zoom. A built-in memory card slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by transferring data and power over one cable.
This PTZ camera complies with ONVIF profiles G, M, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66-, NEMA 4X-, and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
PTZ features include: 256 preset positions, e-flip, limited guard tour, control queue, on-screen directional indicator, set new pan 0°, focus window, and focus recall
Automatic IR cut filter for day and night functionality
Axis Zipstream technology lowers bandwidth and storage requirements
Multiple individually configurable streams in H.265, H.264, and MJPEG
Controllable frame rate and bandwidth (VBR/ABR/MBR H.264/H.265)
Lightfinder 2.0 technology and forensic WDR for challenging and low-light conditions
Image settings include: compression, saturation, brightness, sharpness, contrast, local contrast, white balance, exposure control, exposure zones, defogging, day/night shift level, tone mapping, fine tuning of low-light behavior, 0 and 180° rotation, text and image overlay, image freeze on PTZ, electronic image stabilization, scene profiles, 20 individual polygon privacy masks
Analytics include: AXIS Object Analytics, AXIS Video Motion Detection, AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, advanced gatekeeper, and autotracker 2, with support for third-party applications
Pixel counter
PVC free
TAA compliant
In the Box
- Axis Communications P5654-E Mk II 1080p Outdoor PTZ Network Dome Camera (60 Hz)
- Smoked Dome
- RJ45 Push-Pull Plug (IP66)
- Hard Ceiling Mount
- Spring Clip Adapter
- U-Profile Adapter Pipe
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Axis Communications P5654-E Mk IISpecs
Key Specs
| Sensor |
2 MP 1/2.8" CMOS
|
| Focal Length |
4 to 84.6mm
|
| Lens Field of View |
Horizontal: 77 to 3.6°
Vertical: 43.1 to 2.0° |
| Pan/Tilt |
Pan: 360° at 0.1 to 350°/s
Tilt: 180° at 0.1 to 350°/s |
| Power Source |
PoE+ 802.3at (30 W)
|
Camera
| Sensor |
2 MP 1/2.8" CMOS
|
| Focal Length |
4 to 84.6mm
|
| Maximum Aperture |
f/1.6 to 4.5
|
| Zoom |
Optical: 21x
Digital: 12x |
| Lens Field of View |
Horizontal: 77 to 3.6°
Vertical: 43.1 to 2.0° |
| IR Cut Filter |
Mechanical
|
| Day/Night |
Yes
|
| Minimum Illumination |
Color: 0.1 Lux
B&W: 0.01 Lux |
| Shutter Speed |
1/66500 to 2 Seconds
|
| DORI Coverage |
With 4 to 84.6mm Lens:
Detect: 187 to 3674' / 57.0 to 1119.8 m Observe: 75 to 1476' / 22.9 to 449.9 m Recognize: 36 to 738' / 11.0 to 224.9 m Identify: 20 to 361' / 6.1 to 110.0 m |
| Mobile App Compatible |
No
|
Video
| Streaming Resolution |
1920 x 1080
|
| Supported Video Compression |
H.264, H.265, MJPEG
|
| Multi-View Streaming |
Yes
|
Pan & Tilt
| Pan/Tilt |
Pan: 360° at 0.1 to 350°/s
Tilt: 180° at 0.1 to 350°/s |
Networking
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection
|
| Supported Protocols |
ARP, Bonjour, CDP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, mDNS, MQTT, NTCIP, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SRTP, SSH, SSL/TLS, syslog, TCP, UDP, UPnP, USGv6, Zero Configuration
|
System Integration
| Application Programming Interface (API) |
Open API for Software Integration, Including VAPIX and AXIS Camera Application Platform
One-Click Cloud Connection ONVIF Profiles G, M, S & T |
| Analytics |
Included: AXIS Object Analytics, AXIS Video Motion Detection, Active Tampering Alarm, AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, Advanced Gatekeeper, Autotracker 2
Supported: AXIS Camera Application Platform Enabling Installation of Third-Party Applications |
| Built-In Installation Aids |
Pixel Counter
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Data Streaming |
Yes
|
| Alarm I/O |
No
|
Hardware
| Memory |
1024 MB RAM / 512 MB Flash
|
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC
|
| Internal Storage |
No
|
| External Storage Options |
Cloud, NAS
|
Power
| Power Source |
PoE+ 802.3at (30 W)
|
| Power Consumption |
16 W
|
Environmental
| Operating Temperature |
-22 to 122°F / -30 to 50°C
|
| Storage Temperature |
-40 to 149°F / -40 to 65°C
|
| Operating Humidity |
10 to 100%
|
| Environmental Resistance |
Dust/Water-Resistant (IP66)
|
| IK Rating |
IK10
|
General
| Inputs/Outputs |
1x RJ45
|
| Video Management Software |
AXIS Companion, AXIS Camera Station, and Video Management Software from Axis' Application Development Partners
|
| Supported Languages |
Czech
Dutch English Finnish French German Italian Japanese Korean Polish Portuguese Russian Simplified Chinese Spanish Swedish Thai Traditional Chinese Turkish Vietnamese |
| Certifications |
CSA, EAC, FCC (Part 15 Class A), ICES-003 Class A, IEC60068-2-6, KC, NEMA Type 4X, NTCIP 1205, RCM, REACH, RoHS, UL, cUL, as per Manufacturer
|
| Material of Construction |
Aluminum, Polymer
|
| Dimensions |
ø: 5.9 x H: 8.5" / ø: 149.0 x H: 217.0 mm
|
| Weight |
5.5 lb / 2.5 kg
|
Packaging Info
| Package Weight |
7.63 lb
|
| Box Dimensions (LxWxH) |
17.5 x 9 x 9"
|
