Description
Product Overview

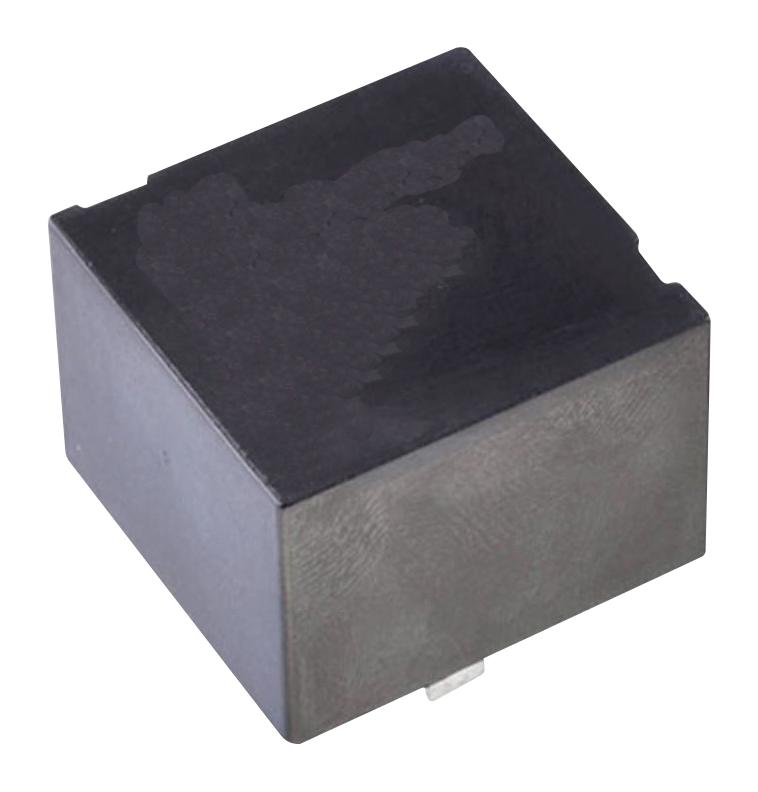

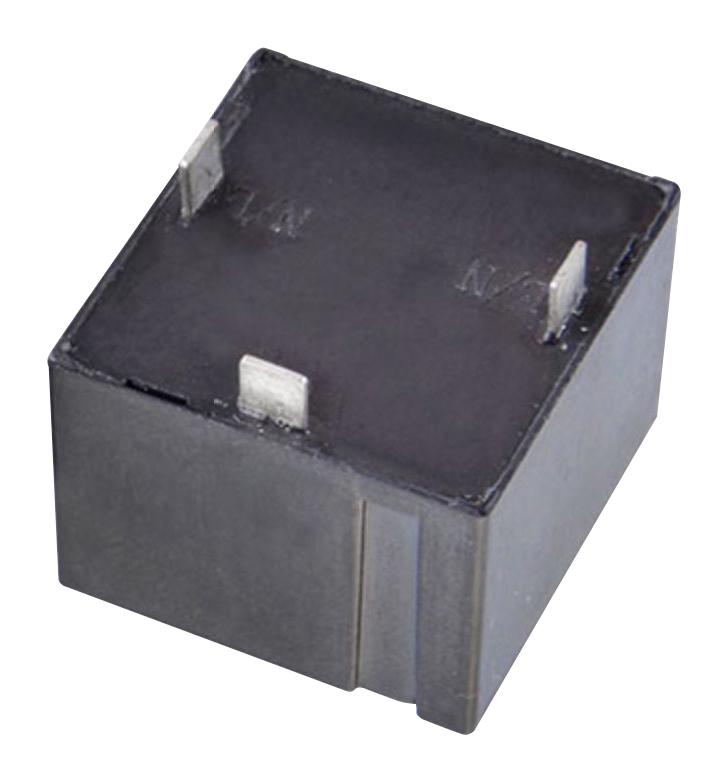

MPSM15S511P3NBB surge protective device module (SPD-M) is an onboard lightning protection module that integrates functions, such as thermal protection, overvoltage protection, and remote signalling, and others. A single module can meet common-mode, differential-mode or full-mode protection requirements. SPD-M, an integrated solution, can simplify the design and selection of surge protection modules for users, and is suitable for surge protection of low-voltage AC or DC power supply equipment. Surge protective device module (SPD-M) has the characteristics of small board space, high level of integration, and complete protection functions and solutions. Applications include telecom equipment, AC / DC power supply, uninterruptable power supply (UPS), surge protective device (SPD).
- High reliability, small size
- Combination technology of ATCO, MOV and GDT
- Comply with UL 1449 / IEC 61643-11
- Differential-mode / common-mode protection
- 320VAC maximum continuous operating voltage
- 5kA nominal discharge current (8/20?s)
- 10kA maximum discharge current (8/20?s)
- 1500V voltage protection level
- <lt/>25ns response time
- 10A external overcurrent protection
Notes
UL and TUV approved.
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MPSM15S511P3NBB |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2375.82 |
| 3-5 | ₹ 2351.58 |
| 5-10 | ₹ 2303.09 |
| 10+ | ₹ 2254.61 |
Bulk discount will be automatically applied during checkout based on quantity.
