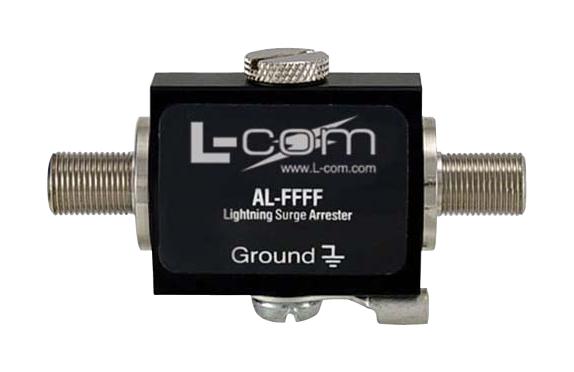

L-COM AL-FFFF-9 Coaxial Surge Protector, Coaxial, 75 ohm, Panel, 1 Pole

AL-FFFF-9 is a F-female to F-female coaxial lighting protector. This lightning protector model AL-FFFF is a high quality 75 ohm gas discharge tube suppressor featuring wide-band operation up to 3GHz. Since this protector will pass DC, it is suitable for applications where DC is carried through the coax cable, such as remote amplifiers and LNB's and down-converters. This provides protection no matter which way it is installed. Either port can face the antenna and either port can face the equipment. The unit's replaceable gas tube element, multi-strike capability, and fast response time make it suitable for a wide range of applications. A ground lug and terminal are supplied directly on the lightning protector housing, which provides superior grounding. Due to its low cost and superior RF performance, this unit is ideal for protecting cable television receivers, cable modems, CCTV cameras, DSS receivers, VSAT equipment, DBS installation and WLAN applications at 2.4GHz and 900MHz.

• Bi-directional protection
• Multi-strike capability
• Easily replaced gas tube element
• Protector will pass DC
• Reliable performance from DC ~ 3GHz
• VSWR is 1:1.3 maximum (0 to 3GHz)
• 75 ohm impedance, 90V 20% gas tube breakdown voltage
• Maximum withstand current is 5KA
• Nickel plated brass connector body, gold plated brass pin
• Dimension (L X H X W) is 82mm x 40mm x 20mm
