Description
Product Overview
ADM1232 is a microprocessor supervisory circuit monitors microprocessor supply voltage, whether a microprocessor has locked up, external interrupts. It is pin-compatible with the MAX1232, DS1232LP, and DS1232. Typical applications are microprocessor systems, portable equipment, computers, controllers, intelligent instruments, automotive systems.
- No external components
- Voltage rating range from 4.5 to 5.5V (VCC=full operating range, TA=TMIN to TMAX)
- Current is 50?A max (VIL, VIH=CMOS, VCC=full operating range, TA=TMIN to TMAX)
- Reset active time is 1000ms (VCC=full operating range, TA=TMIN to TMAX)
- RESET output voltage is VCC ? 0.1V (when sourcing less than 50?A, TA=TMIN to TMAX)
- Output delay is 50?s (after VCC falls below the set tolerance voltage, TA=TMIN to TMAX)

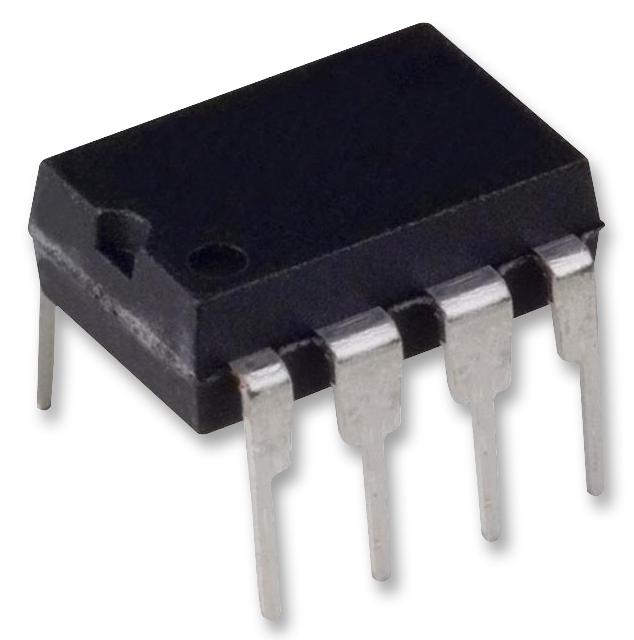

- 8-lead plastic dual in-line package [PDIP]
- Temperature rating range from -40°C to +85°C
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | ADM1232ANZ |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 649.91 |
| 3-5 | ₹ 643.27 |
| 5-10 | ₹ 630.01 |
| 10+ | ₹ 616.75 |
Bulk discount will be automatically applied during checkout based on quantity.
