Description

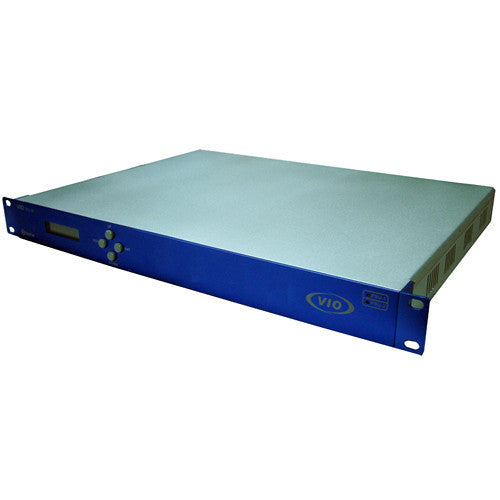

The Gra-Vue VIO DLG-HD SD / HD-SDI Logo Generator can store 1 to 4 full-bandwidth logos uncompressed 4:2:2 quality still and / or motion logos with its own luminance key channel with 128MB memory. It has a built-in web server and through the IE browser in a control PC, you can create logos via importing MOV, etc. format pictures.

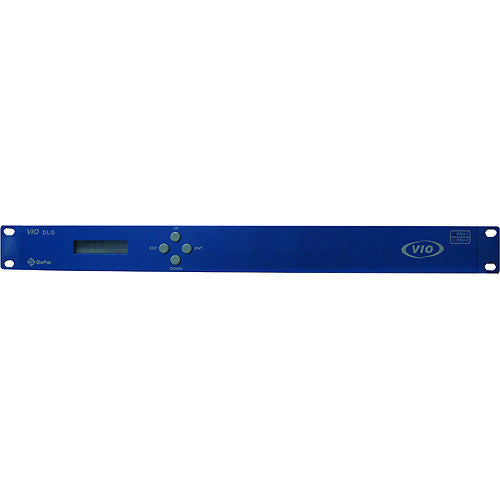

The size of each logo is variable and ranges from 1/25th to full screen. The position of the logo is programmable. The SNMP (Simple Network Management Protocol) and RS-232 control protocol are also built in the machine. All the configuration and operation can be done by 4 ways, which are MCU (Multipoint Control Unit) on the front panel, browser, SNMP, and RS-232.
- 20-bit processing, full-bandwidth HD-SDI video format
- Uncompressed 4:2:2 still and / or motion logo
- Up to 4 static and / or motion bugs display simultaneously
- LTC / EBU time correction with the system main clock
- Position, size, of logos changed freely and conveniently by Web UI
- 4 Control Modes: Front panel MCU, IE browser, SNMP, and RS-232
- Support tri-level and / or NTSC / PAL bi-level synchronization
- Real-time remote control and monitor
- Standard 1U frame
- Redundant PSU unites and fans
- Limited 1-Year Warranty

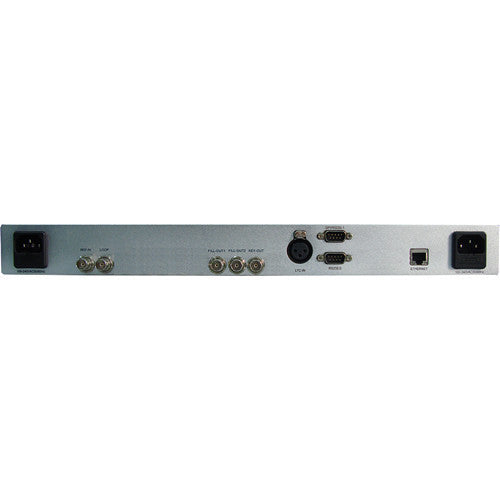

| Reference | Signal Style: Tri-level or NTSC / PAL bi-level synchronization Input Interface: 1x BNC, 75 ? Output Interface: 1x BNC loop output |
| Digital Video Output | FILL: Output Interface: 2x HD / SD-SDI, BNC, 75 ? Format: SMPTE 259M 270 Mb/s, SMPTE 292M; 1.48 Gb/s |
| Digital Video Output | KEY: Output Interface: 2x HD / SD-SDI, BNC, 75 ? Format: SMPTE 259M 270 Mb/s, SMPTE 292M; 1.48 Gb/s |
| Settings | Inner: Image Phase Adjustment: H / V Key Delay: 0 to 32p White / Black Key: White / Black Step Length: 1 / 5 / 10 / 50 / 100 Status Director: LCD display, LOGO, and menu |
| Control Interface | Network: 1x RJ45 1000M Ethernet GPI: 2x GPI Serial: 1x DB15 RS232 LTC: 1x XLR |
| Power | 2x 120 W, 100 to 256 VAC, 50 to 60 Hz |
| Dimensions | 17.32 x 19.01 x 1.77" (440.00 � 483.00 � 45.00 mm) |
| Packaging Info | |
|---|---|
| Package Weight | 17.64 lb |
| Box Dimensions (LxWxH) | 24.0 x 24.0 x 8.0" |
