Description

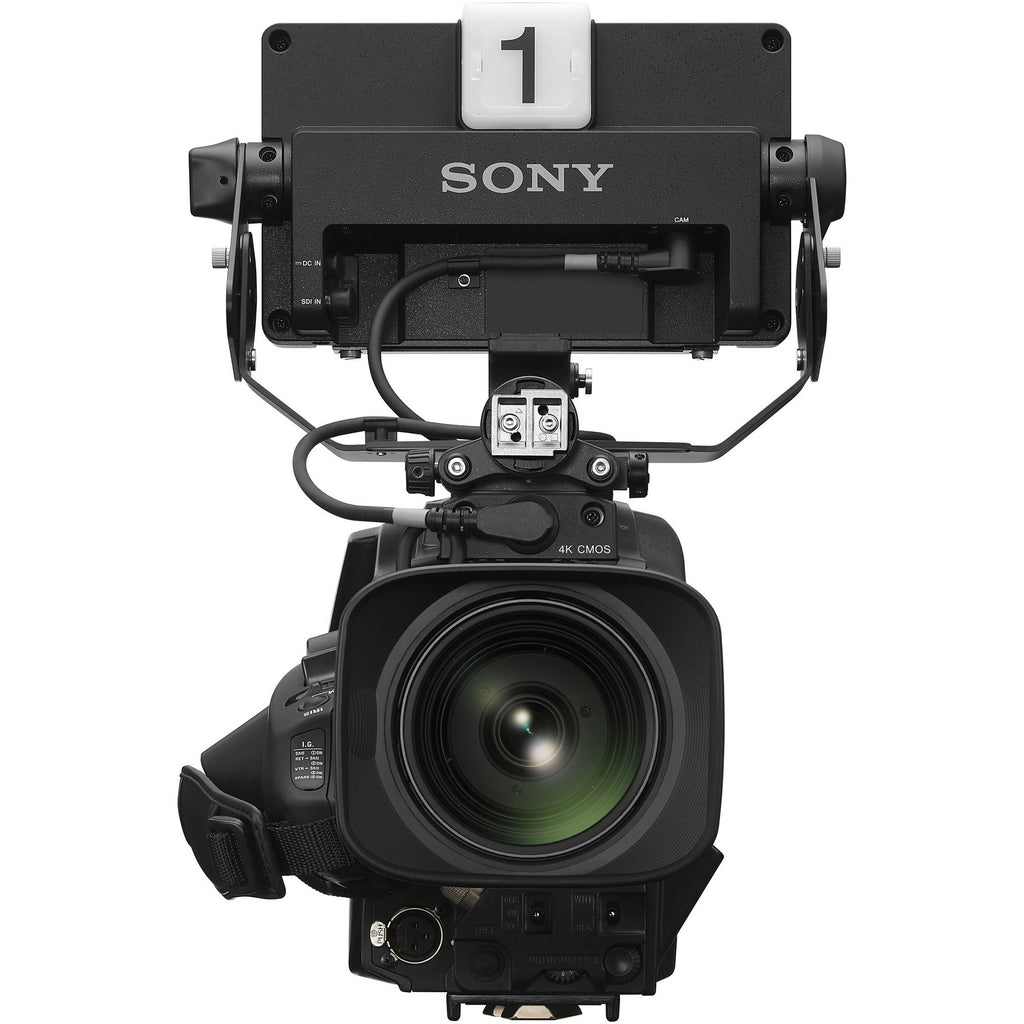

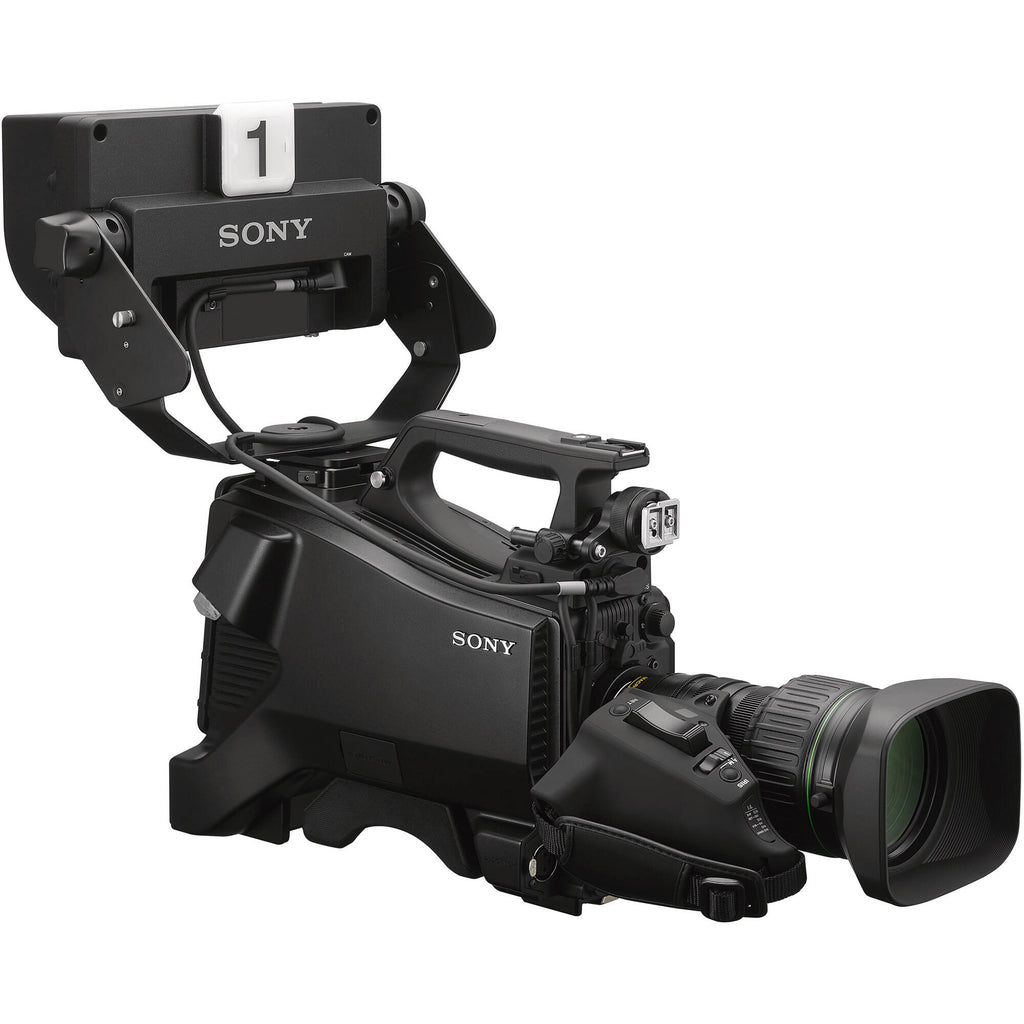

Sony HXC-FZ90 Overview
Portable Studio Camera for 4K Production
The
HXC-FZ90SL2 Camera Kit from
Sony incorporates a 2/3" 4K CMOS sensor for producing oversampled HD imaging or UHD 4K with a separately available license. This broadcast-style camera has a SMPTE LEMO connector for connecting to a separate HXCU-FZ90 CCU. This kit includes a 20x zoom lens and an HDVF-EL740 7.4" OLED viewfinder.
2/3" 4K CMOS Sensor
The highly sensitive Sony 2/3" 4K CMOS sensor captures optimal HD images with 2000 TVL resolution that are down converted from 4K. Ideally suited for 4K HDR productions, it supports both the BT.2020 color gamut and Sony's SR Live for HDR with HLG and S-Log 3.
Up to 1080p60 Video | Optional 4K License
The SL2 natively supports 1080 HD video resolutions at rates up to 60p. UHD 4K imaging requires a separately available license for weekly, monthly, or permanent use. UHD 4K can be output directly via the 12G-SDI connection or using an HXCU-FZ90 CCU component.
Easy Studio Integration
- Easily integrated with your studio setup, the HXC-FZ90SL2 offers simple iris, gain, and shutter control plus functions like Dynamic Focus and Focus Assist Indicator to help operators keep their images sharp.
- The Network Trunk connection simplifies your setup by enabling components to exchange control signals.
- Use the Total Control System function for proper exposure, even without a dedicated camera operator.
Canon 20x Zoom Lens
The Canon 20x servo zoom included in this camera kit has a focal length of 8.2-164mm and a maximum aperture of f/1.9 for low-light capture. Focus, iris, and zoom functions are automatically or manually selectable, with a macro function providing focus down to 0.4" for extreme close-ups.
Long-Distance Sports Transmission
The SMPTE LEMO connector enables the SL2 to fit into your existing infrastructure and supports single-mode fiber extension at distances up to 6.2 miles when used with an HXCE-FZ90 or camera power supply. The ARIA (Automatic Restoration of Illumination Attenuation) compensates for peripheral light loss, letting you consistently deliver clear, dynamic images.

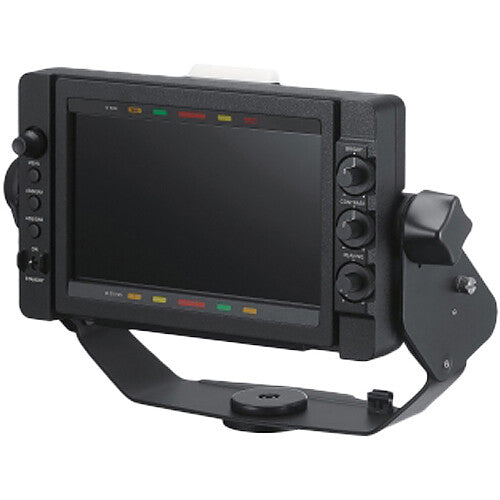

7.4" HDVF-EL740 Viewfinder
The included 7.4" HDVF-EL740 Viewfinder uses organic LED technology that draws less energy and offers deep blacks to peak brightness with a contrast ratio of more than 1,000,000:1. Its user-friendly features include focus assist, four assignable switches, and a versatile mount with pan, tilt, and height adjustments.
Flexible Live Event Capture
- This highly sensitive camera captures high-quality images for a variety of live events and offers a native 60p format for online streaming. The UMBRA dynamic contrast function provides focus assistance even in lower light settings.
- The intercom supports 5-pin XLR input and both 5-pin XLR and stereo mini-jack output for using your own headphones.
Versatile Connectivity
Versatile connectivity interface includes 8-pin RS-422, optical, BNC test output, BNC 3G/HD-SDI output, BNC HD prompter output/video trunk input, BNC prompter output/genlock input, DC output, DC input, dual XLR line/mic audio, and stereo mini earphone connectors.
Corporate, HoW, and Education
Features like focus assist, focus peaking, UMBRA, and TLCS let even operators with minimal experience capture high-quality images for corporate, educational, and houses-of-worship applications. The built-in 2x digital extender lets users get up close and personal without having to reposition their camera.
Items Included
- Sony HXC-FZ90SL2 Camera Kit with 20x Lens, HDVF-EL740 EVF & Fiber Connector (SMPTE LEMO)
- Canon 20x Zoom Lens
- Sony HDVF-EL740 7.4" HD Color OLED Viewfinder
- Body Cap
- Flange Focus Chart
- Cable Clamp Belt
- Tally Number Plate Set (0-9)
Additional Resources
No additional resources available
Sony HXC-FZ90 Specs
Key Specs
| Lens Mount |
B4
|
| Image Sensor |
2/3"-Type CMOS
|
| Sensor Resolution |
Effective: 8.3 Megapixel (3840 x 2160)
|
| Image Stabilization |
No
|
| ISO/Gain Sensitivity |
Gain: -6 to 12 dB
|
| Internal Recording |
3840 x 2160 at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080p 1280 x 720 |
| Video Output |
Optical Fiber / SDI/BNC
HD (1920 x 1080p) at 50/59.94/60.00 fps HD (1920 x 1080i) at 50/59.94 fps HD (1920 x 1080PsF) at 23.98/24.00/25/29.97 fps |
| Media/Memory Card Slot |
No
|
| Video I/O |
1x BNC (12G-SDI) Input/Output
1x BNC (HD-SDI) Output |
| Mobile App Compatible |
No
|
| Battery |
V-Mount
|
Imaging
| Lens Mount |
B4
|
| Image Sensor |
2/3"-Type CMOS
|
| Sensor Resolution |
Effective: 8.3 Megapixel (3840 x 2160)
|
| Image Stabilization |
No
|
| Built-In ND Filter |
Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
|
| Built-In CC Filter |
Mechanical Filter Wheel with Electrical Color Correction Filter
|
| Capture Type |
Video Only
|
Exposure Control
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/2000 to 1/100 Second
|
| ISO/Gain Sensitivity |
Gain: -6 to 12 dB
|
| Signal-to-Noise Ratio |
-62 dB
|
Lens
| Focal Length |
8.2 to 164mm
|
| Zoom |
20x Optical
|
| Maximum Aperture |
f/1.9
|
| Minimum Aperture |
f/16
|
| Minimum Focus Distance |
35.4" / 90 cm
|
| Filter Size |
82 mm
|
| Control Rings |
Focus
Zoom Iris |
Focus
| Focus Mode |
Automatic, Manual Focus
|
Video Capture
| Internal Recording |
3840 x 2160 at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080p 1280 x 720 |
| Video Output |
Optical Fiber / SDI/BNC
HD (1920 x 1080p) at 50/59.94/60.00 fps HD (1920 x 1080i) at 50/59.94 fps HD (1920 x 1080PsF) at 23.98/24.00/25/29.97 fps |
| Broadcast Output |
NTSC with 2000 TV Lines
PAL with 2000 TV Lines |
| Fast-/Slow-Motion Support |
No
|
| Interval Recording Modes |
No
|
| Gamma Curve |
HDR-HLG, Rec2020, Sony S-Log 3
|
| Audio Recording |
2-Channel
|
| IP Streaming |
Yes
|
Interface
| Media/Memory Card Slot |
No
|
| Internal Storage |
No
|
| Video I/O |
1x BNC (12G-SDI) Input/Output
1x BNC (HD-SDI) Output |
| Audio I/O |
2x XLR 3-Pin Mic/Line Input
1x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone Output 1x XLR 5-Pin Intercom Input/Output |
| Power I/O |
1x XLR 4-Pin (10.5 to 17VDC) Input
1x XLR 4-Pin (10.5 to 17VDC) Output |
| Other I/O |
1x 20-Pin Viewfinder Output
1x BNC (Genlock) Control 1x Hirose 8-Pin (RS-422) Control |
| Wireless |
No
|
| Mobile App Compatible |
No
|
| Global Positioning (GPS, GLONASS, etc.) |
No
|
Monitor
| Display Type |
No
|
| Resolution |
No
|
Viewfinder
| Type |
Removable Electronic
|
| Resolution |
1920 x 1080
|
Power
| Battery |
V-Mount
|
| Power Consumption |
56 W
|
Environmental
| Operating Conditions |
14 to 113?F / -10 to 45?C
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C
|
General
| Shoe Mount |
1x Cold Shoe
|
| Tripod Mount |
VCT-14
|
| Accessory Mounting Thread |
No
|
| Built-In Video Light |
No
|
| Dimensions (W x H x D) |
12.8 x 10.5 x 6.3" / 326 x 266 x 160 mm
|
| Weight |
8.4 lb / 3.8 kg (Body Only)
|
