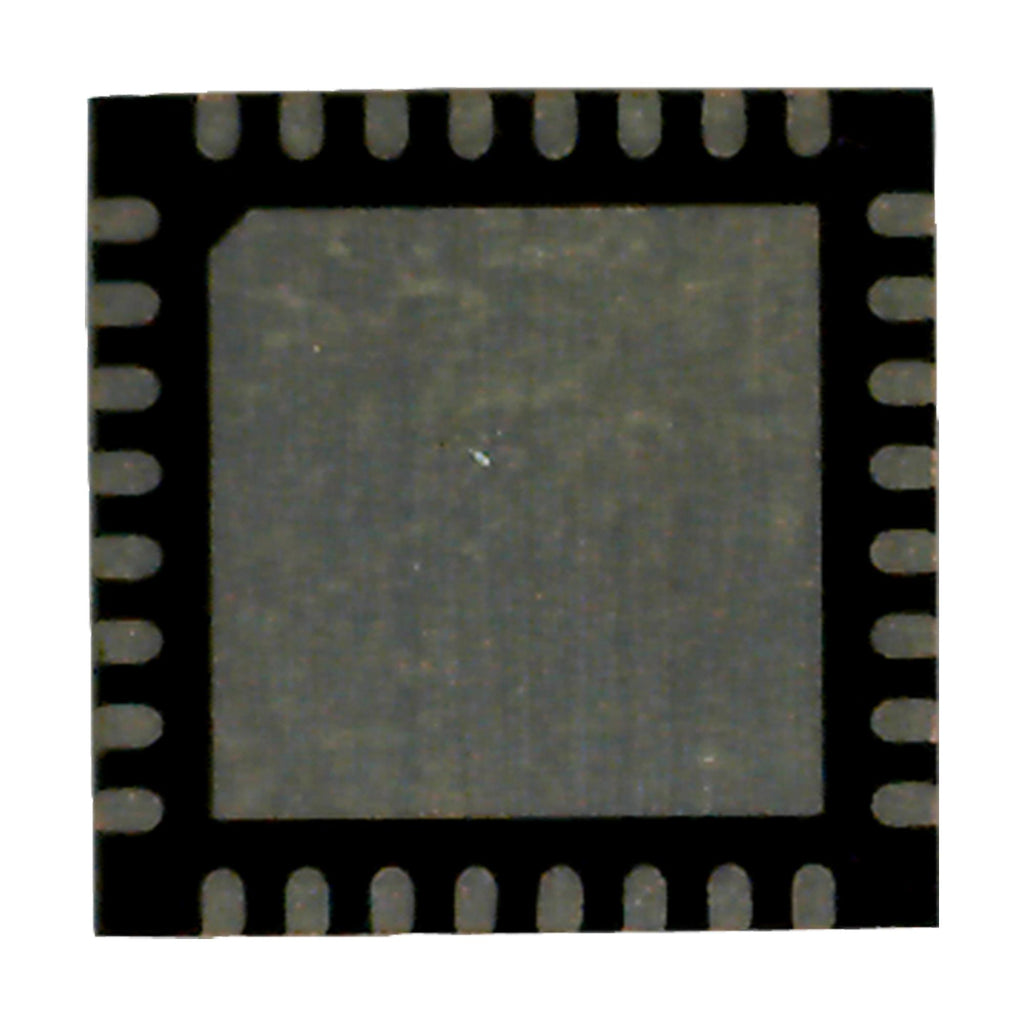

TEXAS INSTRUMENTS DP83822IRHBT Ethernet Physical Layer Transceiver, 3.15 V to 3.45 V, VQFN-32

The DP83822IRHBT is a robust, low power 10/100Mbps Ethernet physical layer transceiver in 32 pin VQFN package. It provides all physical layer functions needed to transmit and receive data over both standard twisted-pair cables or connect to an external fibre optic transceiver. Additionally it provides flexibility to connect to a MAC through a standard MII, RMII or RGMII interface. It offers integrated cable diagnostic tools, built-in self-test and loopback capabilities for ease of use. It supports multiple industrial buses with its fast link-down timing as well as Auto-MDIX in forced modes. It is a feature rich and pin-to-pin upgradeable option for the TLK105, TLK106, TLK105L and TLK106L 10/100Mbps Ethernet PHYs. It is used in motor and motion control, IP network cameras.

• IEEE 802.3u compliant, 100BASETX and 10BASE-Te
• ±16KV HBM ESD & ±8KV IEC 61000-4-2 ESD protection
• Start of frame detect for IEEE 1588 time stamp, fast link-down timing
• Auto-crossover in force modes
• Power savings features, Energy Efficient Ethernet IEEE 802.3az, programmable energy savings modes
• Energy efficient Ethernet (EEE) IEEE 802.3az, WoL (wake-on-LAN) support with magic packet detection
• Cable diagnostics, MDC / MDIO interface
• Mixed-signal processing to perform equalization, data recovery and error correction
• Operating temperature range from -40°C to 85°C

Applications

Communications & Networking, Industrial, Building Automation, Motor Drive & Control
