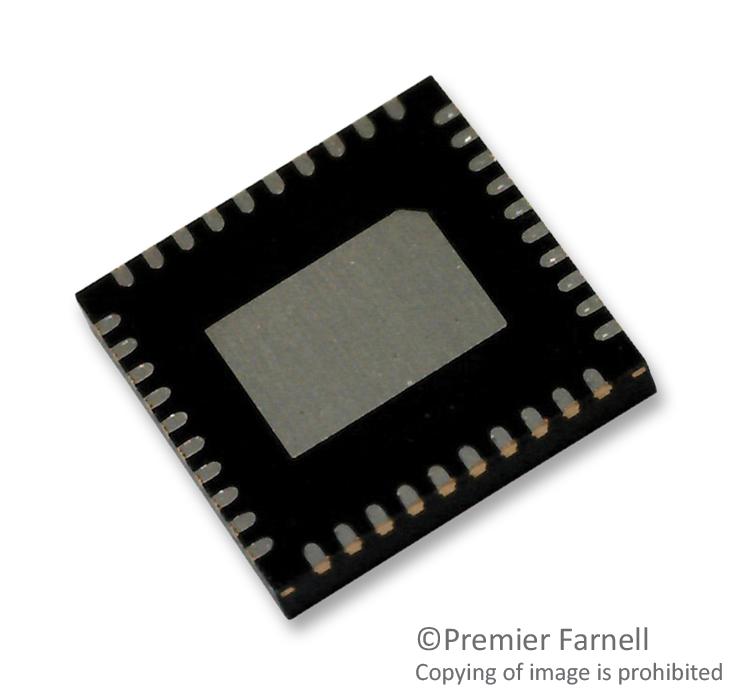

Texas Instruments AFE4490RHAT Analogue Front End Device Pulse Oximeter 3 V to 5.25 VQFN-40

The AFE4490RHAT is a fully-integrated Analog Front End that is ideally suited for pulse-oximeter applications. The device consists of a low-noise receiver channel with a 22-bit analog-to-digital converter (ADC), an LED transmit section and diagnostics for sensor and LED fault detection. The device is a very configurable timing controller. This flexibility enables the user to have complete control of the device timing characteristics. To ease clocking requirements and provide a low-jitter clock to the device, an oscillator is also integrated that functions from an external crystal. The device communicates to an external microcontroller or host processor using an SPI� interface.

• Flexible pulse sequencing and timing control
• Transmit - Integrated LED driver (H-Bridge, Push or Pull)
• Transmit - 110dB Dynamic range across full range (Enables low noise at low LED current)
• Transmit - Programmable ranges of 50mA, 75mA 100mA, 150mA and 200mA, with 8-bit current resolution
• Transmit - LED on-time programmability from (50µs + Settle Time) to 4ms
• Transmit - Independent LED2, LED1 current reference
• Receive channel with high dynamic range
• Receive - 50pARMS (at 5µA PD Current) Input-referred noise
• Receive - 13.5 Noise-free bits (at 5µA PD Current)
• Receive - Analog ambient cancellation scheme with selectable 1 to 10µA Ambient current

• Receive - 50µs to 4ms Rx Sample time
• Receive - I-V Amplifier with seven separate LED2 and LED1 programmable feedback R and C settings
• Receive - Integrated digital ambient estimation and subtraction
• Integrated fault diagnostics - Photodiode and LED Open/Short detection, Cable ON or OFF detection

Applications

Metering, Medical, Industrial

Other details

Brand	TEXAS INSTRUMENTS
Part Number	AFE4490RHAT
Quantity	Each (Supplied on Cut Tape)
