Description

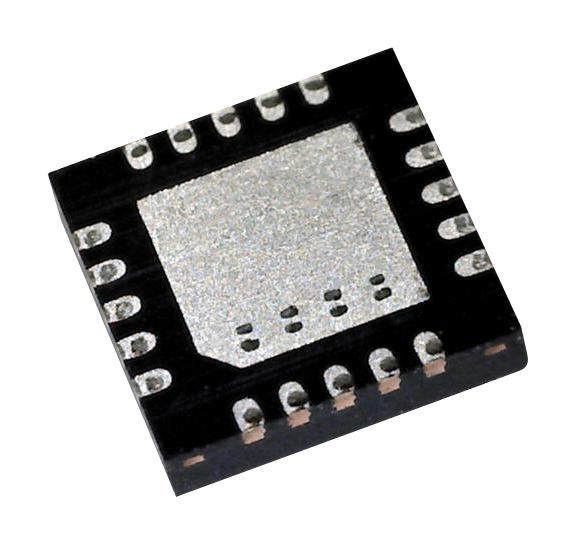

The MCP9600 converts thermocouple EMF to degree Celsius with integrated cold-junction compensation. It comes with user-programmable registers which provide design fl exibility for various temperature sensing applications. This sensor uses an industry standard 2-wire, I2 C compatible serial interface and supports up to eight devices per bus by setting the device address using the ADDR pin.
- Thermocouple Electromotive Force (EMF) to °C converter
- Supported types (designated by NIST ITS-90): Type K, J, T, N, S, E, B and R
- Measurement resolution: Hot and cold-junctions: +0.0625°C (typical)
- 2-wire interface: I2 C compatible, 100 kHz
- Operating current: 300 µA (typical)
- Shutdown current: 2 µA (typical)
Applications
Industrial & Manufacturing, Test & Measurement
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| IC Function: Thermocouple EMF to Temperature Converter |
| Supply Voltage Min: 2.7V |
| Supply Voltage Max: 5.5V |
| IC Package Type: MQFN |
| No. of Pins: 20Pins |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 125°C |
| Product Range: MCP9600/L00/RL00 |
| Automotive Qualification Standard: - |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | MCP9600-E/MX |
| Quantity | Each |
| Technical Data Sheet EN |  |
