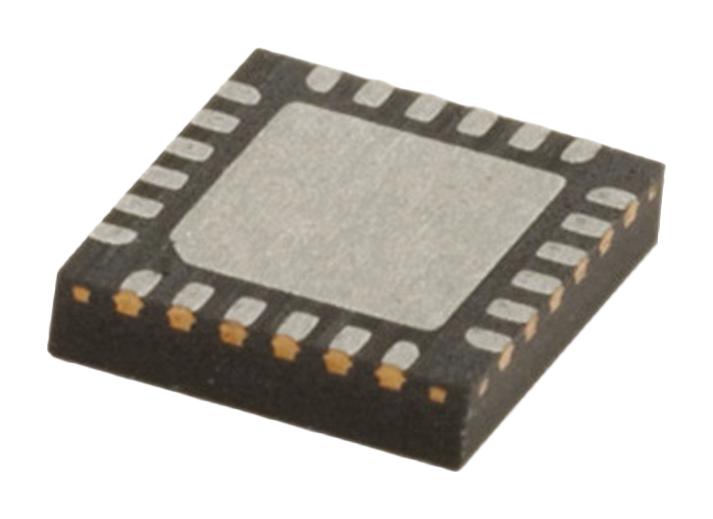

ANALOG DEVICES MAX14824GTG+ IO-Link Device Transceiver, 9 V to 36 V, TQFN-24

The MAX14824GTG+ is an IO-link master transceiver in 24 pin TQFN package. The IO-Link master interface that integrates an IO-Link physical layer transceiver with an auxiliary digital input and two linear regulators. High port count IO-Link master applications are supported through in-band SPI addressing and the 12MHz SPI interface minimizes host controller access times. In-band addressing and selectable SPI addresses enable cascading up to 16 devices. The device supports all the IO-Link data rates and features slew-rate-controlled drivers to reduce EMI. The driver drives up to 300mA (min) load current. Internal wake-up circuitry automatically determines the correct wake-up polarity allowing for the use of simple UARTs for wake-up pulse generation. Typical applications include IO-link master controllers, PLC field-bus gateways, high port count IO-link masters and 24V digital inputs and outputs.

• Supply voltage range is 9V to 36V
• Operating temperature range from -40°C to 105°C
• IO link v.1.0 and v.1.1 physical layer compliant
• Supports COM1, COM2 and COM3 data rates
• Push-pull, high-side or low-side outputs
• 1?F C/Q load drive capability
• Generates 500mA wake-up pulse
• Automatic wake-up pulse polarity
• 5V and 3.3V linear regulators
• SPI interface for configuration and monitoring and SPI based chip addressing

Applications

Communications & Networking
