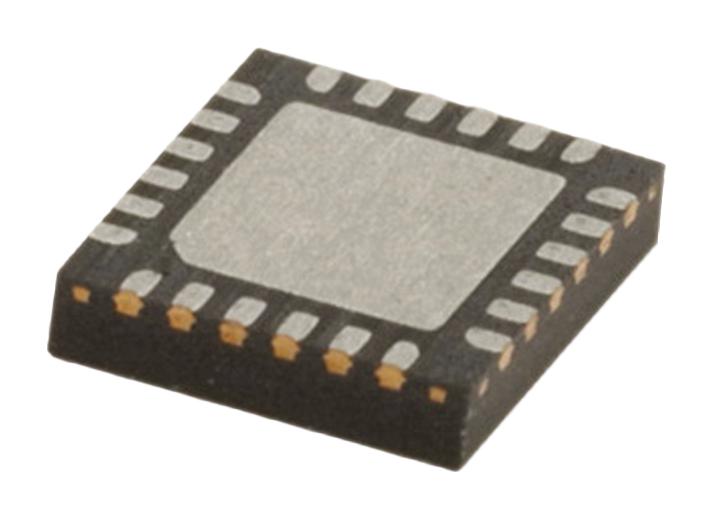

ANALOG DEVICES HMC642ALC5TR Digital Phase Shifter, 5 V, -40 °C to 85 °C, LCC-EP-32

HMC642ALC5TR is a 6bit digital phase shifter which is rated from 9 to 12.5GHz, providing 360 degrees of phase coverage, with an LSB of 5.625 degrees. The HMC642ALC5 features very low RMS phase error of 4.5 degrees and extremely low insertion loss variation of ±0.4dB across all phase states. This high-accuracy phase shifter is controlled with positive control logic of 0/+5V. The HMC642ALC5 is housed in a compact 5x5 mm ceramic leadless SMT package and is internally matched to 50 ohms with no external components. Applications include EW receivers, weather & military radar, satellite communications, beamforming modules, phase cancellation.

• Frequency range from 9 to 12.5GHz
• Insertion loss is 7dB typical at (TA = +25°C)
• Input return loss is 14dB typical at (TA = +25°C)
• Output return loss is 11dB typical at (TA = +25°C)
• RMS phase error is 4.5deg typical at (TA = +25°C)
• Input power for 1dB compression is 30dBm typical at (TA = +25°C)
• Input third order intercept is 35dBm typical at (TA = +25°C)
• Control voltage current is <250µA typical at (TA = +25°C)
• Bias control current is <12mA typical at (TA = +25°C)
• Operating temperature range from -40 to +85°C, 32-lead SMT package
