| ₹ 22780.44 includes GST and import duties. | |
| B2B customers can avail ₹ 3474.02 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview

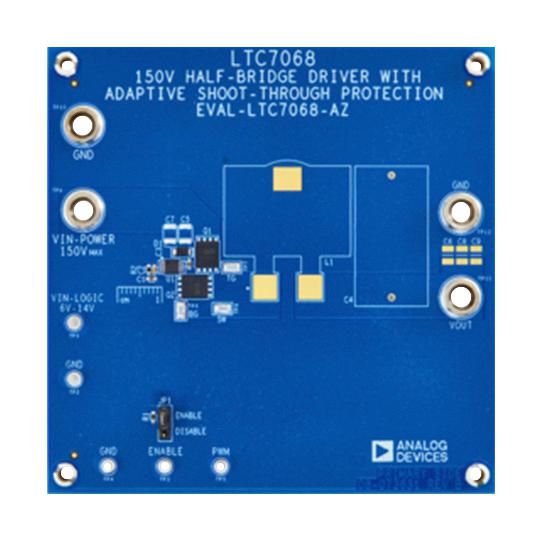

EVAL-LTC7068-AZ evaluation circuit features LTC7068 driving two N-channel MOSFETs in a half-bridge configuration. The PWM input control is 5V logic compatible and controls both gate outputs, with one output complementing the other. The evaluation-board has several unpopulated Printed Circuit Board (PCB) pads to help the user customize the board for their application. The LTC7068 driver has powerful 1.3ohm pull-down and 1.6ohm pull-up MOSFET drivers driving two 150V N-Channel MOSFETs.
- 150V half-bridge driver with adaptive shoot-through protection
- 6V to 14V logic-input supply (VIN�LOGIC)
- 150V maximum power-input supply (VIN�POWER)
- 10A maximum output current
- 2,000+ KZ maximum PWM control frequency
- 5.5V maximum pulse-width modulation (PWM) control voltage
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | EVAL-LTC7068-AZ |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 22324.83 |
| 3-5 | ₹ 22097.03 |
| 5-10 | ₹ 21641.42 |
| 10+ | ₹ 21185.81 |
Bulk discount will be automatically applied during checkout based on quantity.
