Tannoy CI 6DC Overview

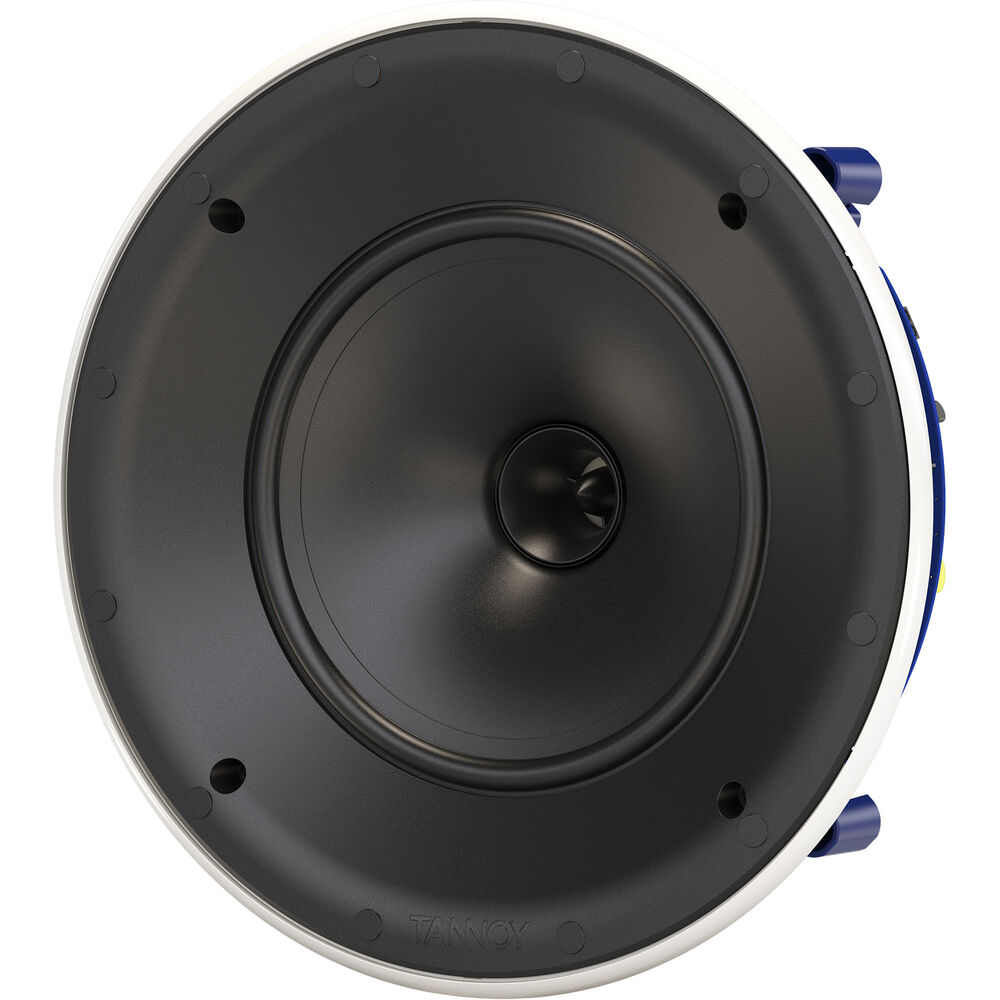

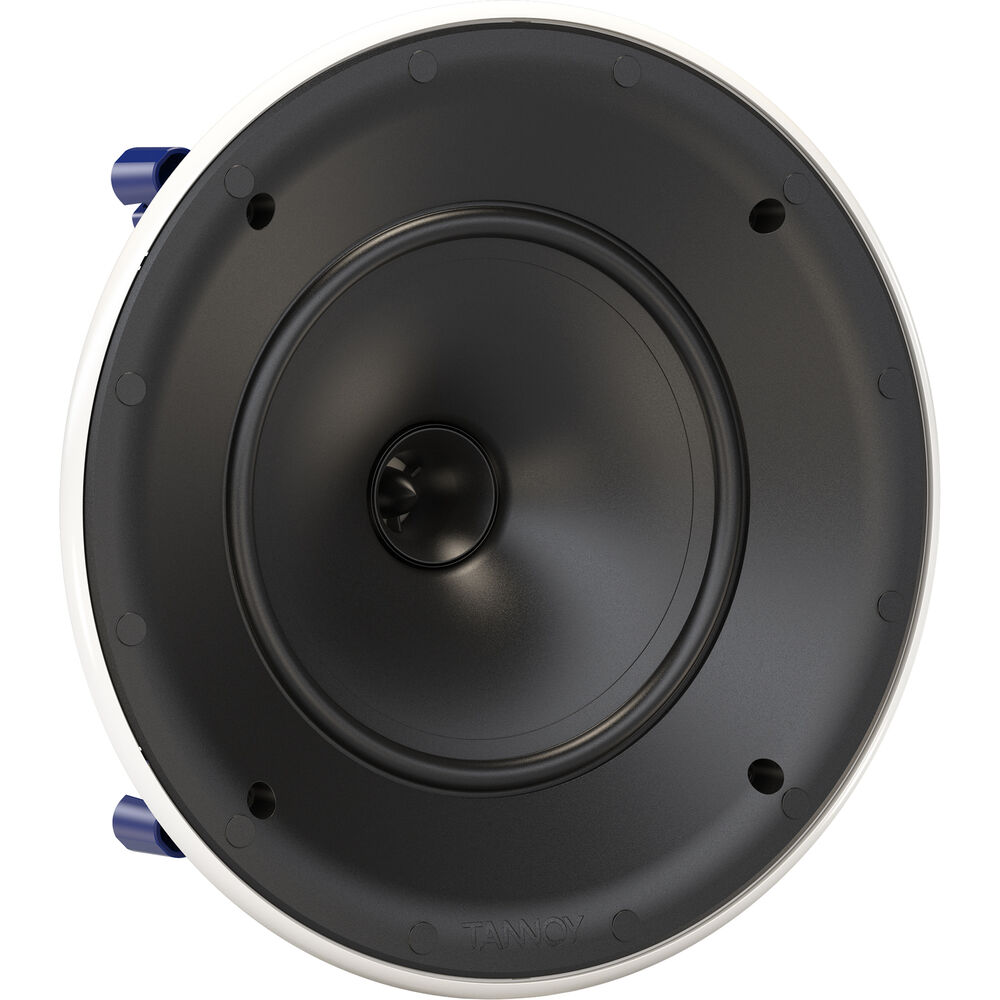

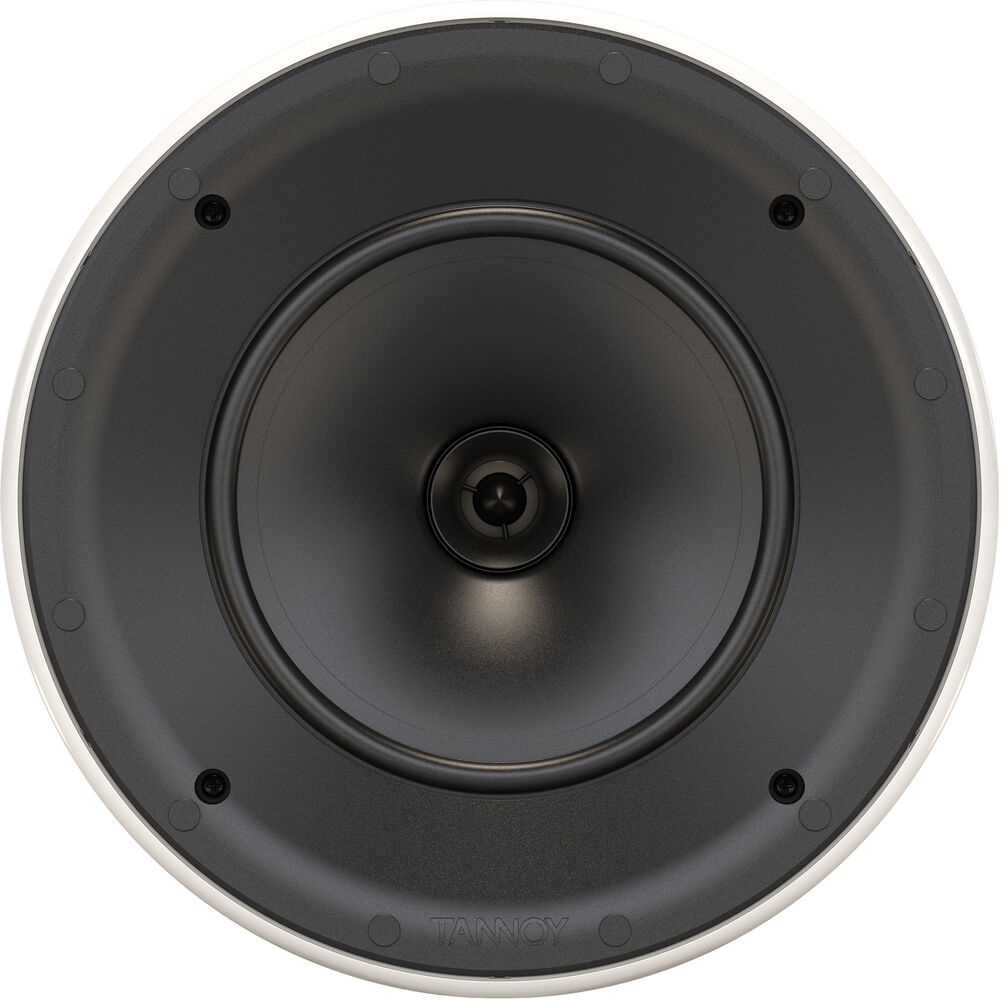

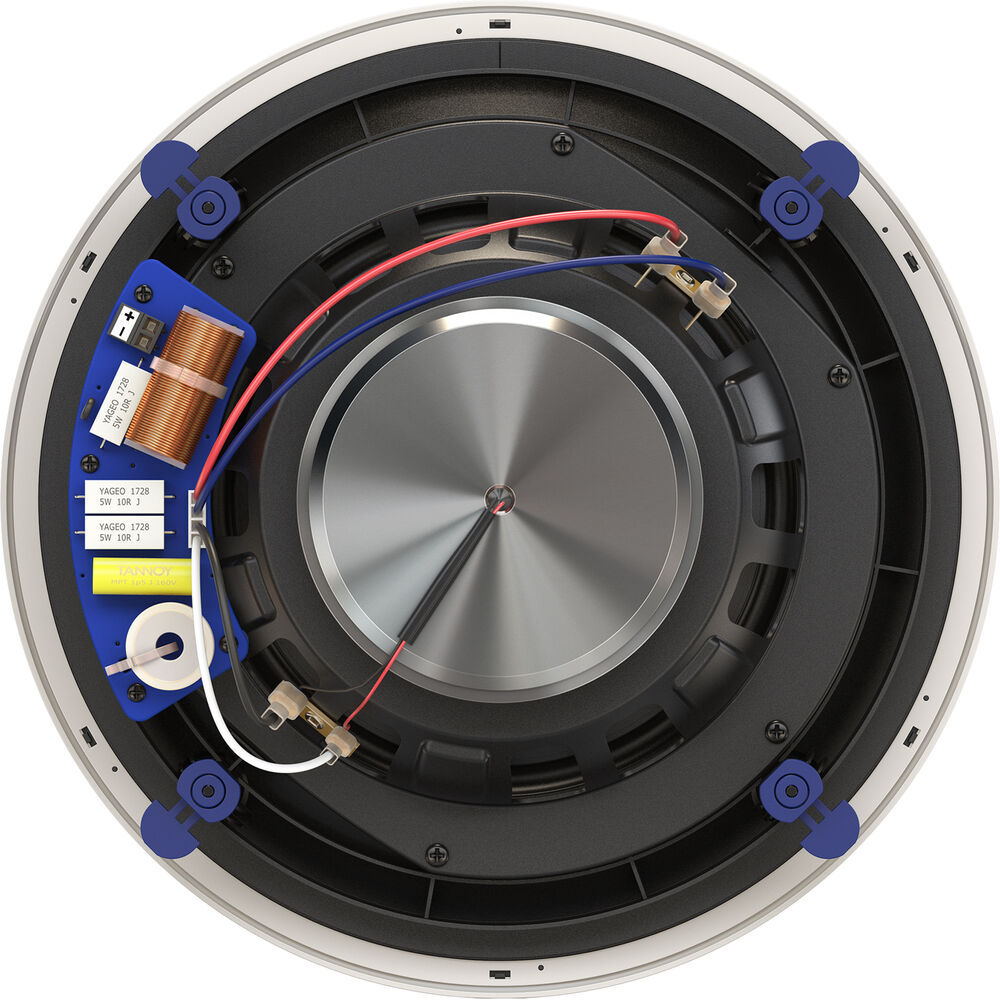

Using the same standards from their flagship hi-fi and pro loudspeakers, the QCI 8DC 8" Dual Concentric In-Ceiling Loudspeaker from Tannoy features up to 320W of peak output from a dual concentric driver system. The system includes a 8" bass/mid-range driver with a glass fiber cone is joined by a centrally located 1" tweeter. Thanks to Tannoy's omnimagnet technology, the drivers can be placed close together to improve integration and time alignment, resulting in balanced, high-quality sound in a discrete in-ceiling solution. Installation can be seamless, with a powder-coated perforated UV/dust-resistant steel mesh grille that can be painted to match your decor.
Torus Ogive Waveguide
Enhancing performance, the Torus Ogive waveguide of the QCI 8DC used rapid wavefront expansion to improve high frequency directivity and deliver a focused audio image.
Additional Features
- Thin bezel for unobtrusive installation

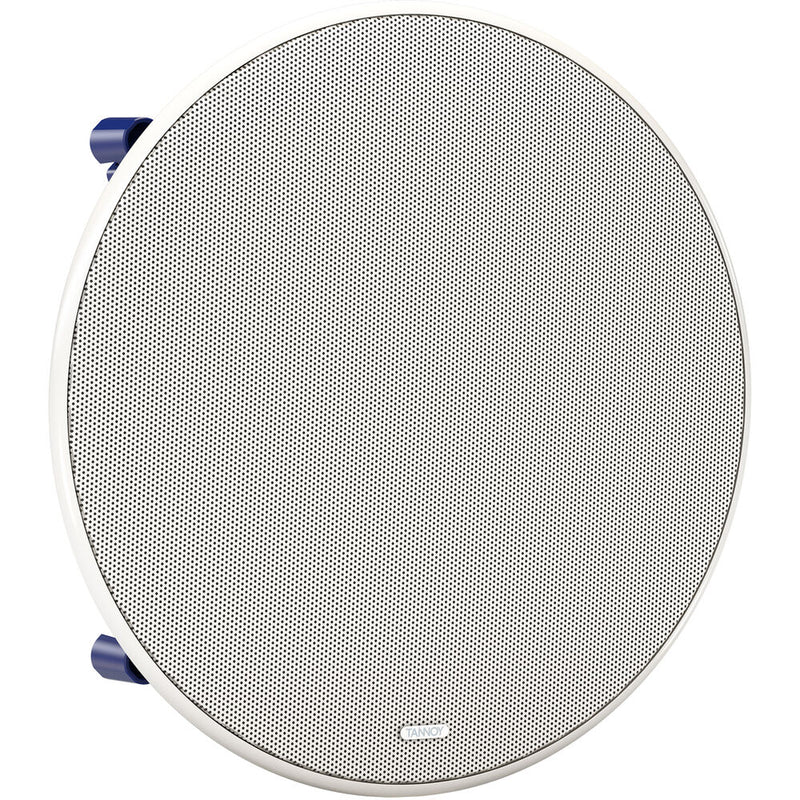

- Self-aligning clamping system for easy installation
- Circular and square baffles and grilles included
Items Included
- Tannoy QCI 8DC 8" Dual Concentric In-Ceiling Loudspeaker
- Circular Baffle
- Square Baffle

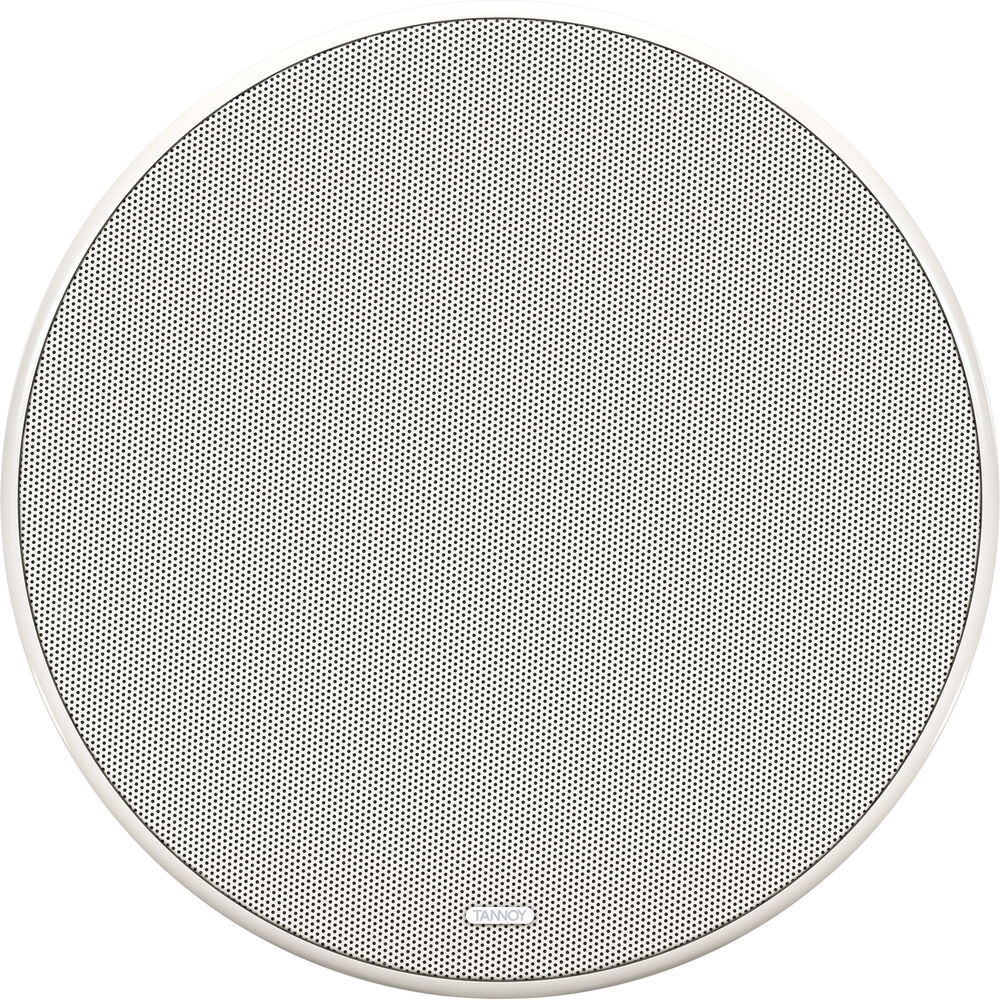

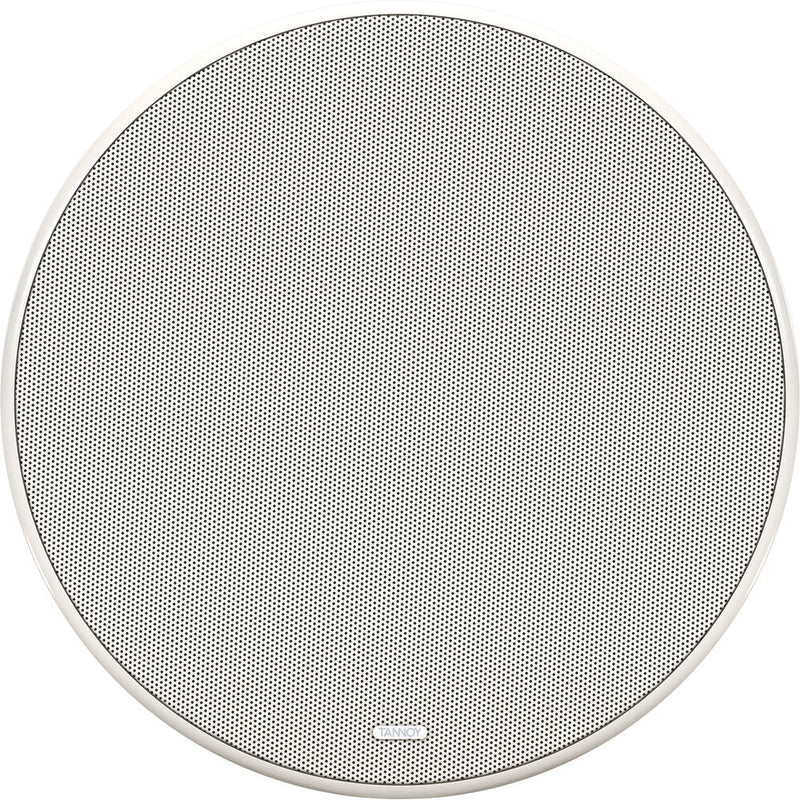

- Circular Grille

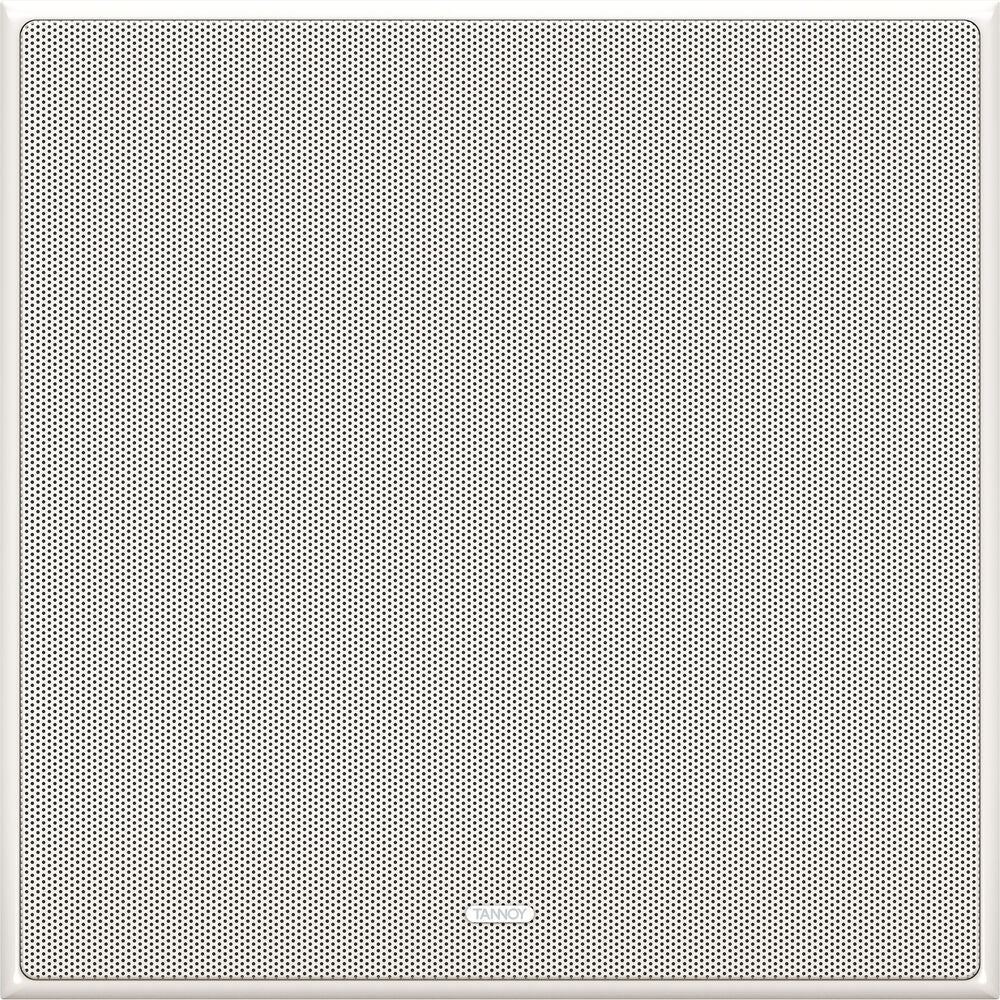

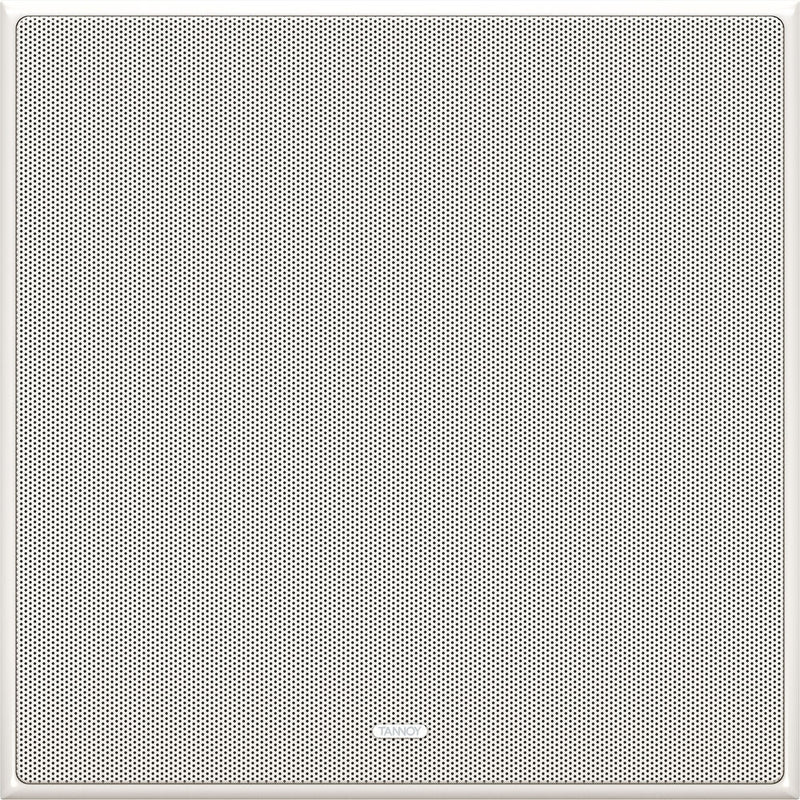

- Square Grille
- Circular Paint Mask
- Square Paint Mask
- Cutout Template
- Screw
- Limited 1-Year Manufacturer Warranty
Additional Resources
Tannoy CI 6DC Specs
Key Specs
| Active/Passive |
Passive
|
| Number of Included Speakers |
1
|
| Speaker Configuration |
2-Way
|
| Power Handling |
80 W RMS
320 W Peak |
| Impedance |
8 Ohms
|
| HF Driver |
1x 1" / 25.4 mm Tweeter
|
| MF Driver |
1x 8" / 203.2 mm Cone
|
| Frequency Range |
35 Hz to 20 kHz ±3 dB
25 Hz to 20 kHz -10 dB |
| Color |
Black
|
Speaker
| Active/Passive |
Passive
|
| Number of Included Speakers |
1
|
| Speaker Configuration |
2-Way
|
| Power Handling |
80 W RMS
320 W Peak |
| Recommended Amplifier Power |
240 W
|
| Impedance |
8 Ohms
|
Drivers
| HF Driver |
1x 1" / 25.4 mm Tweeter
|
| MF Driver |
1x 8" / 203.2 mm Cone
|
Performance
| Frequency Range |
35 Hz to 20 kHz ±3 dB
25 Hz to 20 kHz -10 dB |
| Sensitivity |
106 dB (Average)
112 dB (Peak) |
| Crossover |
1.6 kHz
|
Connectivity
| Inputs/Outputs |
1x Block
|
Physical
| Color |
Black
|
| Mounting |
In-Ceiling
|
| Cutout Depth |
4.2" / 106 mm
|
| Cutout Size |
9.8" / 250 mm
|
| Construction Material |
Steel
|
| Dimensions |
11.4 x 11.4 x 4.5" / 290 x 290 x 114 mm
|
| Weight |
6.8 lb / 3.1 kg
|
