Description

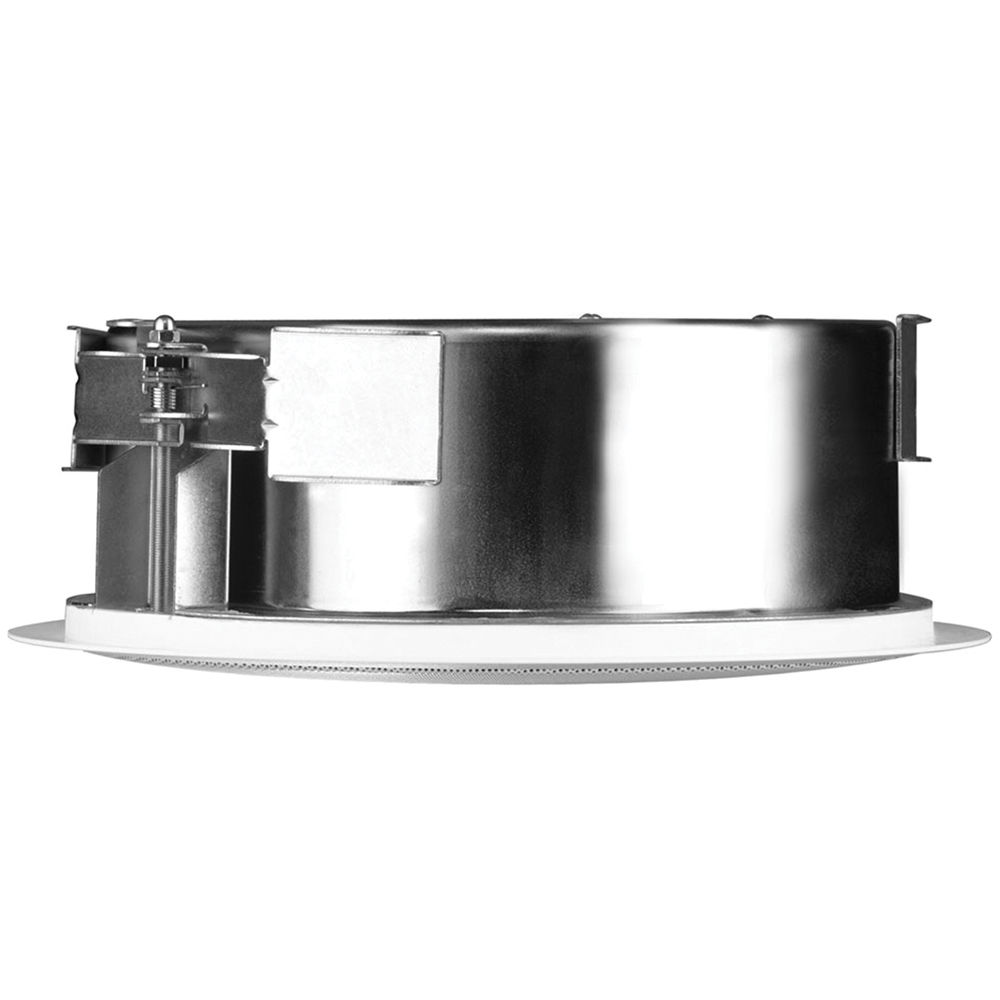

SoundTube Entertainment CM62-EZS-II Overview
System installers looking for an in-ceiling speaker for paging and background music will appreciate the white SoundTube CM62-EZS-II, a two-way blind mount speaker, which delivers true high efficiency and performance across the operating bandwidth.
The coaxial speaker utilizes a 6.5" woofer and a 1" silk dome tweeter which combine for a 125 Hz to 22 kHz frequency response. This speaker is designed for applications with limited plenum space and incorporates a SoundTube-specific shallow backcan with a 3.5" installed depth. The 16-ohm in-ceiling speaker includes a six-position rotary switch with a transformer bypass position and incorporates a painted steel grille and has a ceramic input terminal. The CM62-EZS-II speaker is designed to fit most industrial or commercial suspended ceilings, and features a slim profile on surface mount. A 0.5" flex conduit clamp, paint shield, and two wire nuts are included. A tile bridge is available separately.
- Engineered for applications with limited plenum space incorporating a SoundTube-specific shallow backcan with an installed depth of only 3.5�
- One 6.5� treated fiber woofer with cloth surround and one 1� silk dome tweeter
- Easy-access six-position tap switch for 25/70.7/100V and 16-ohm transformer bypass position allows for easy ordering, stocking, and installation
- Reduced amplification costs with maximum efficiency including 90.5 dB sensitivity and 16-ohm impedance
- Superior voice intelligibility with a 10 kHz coverage angle of 80° (independently verified)
- Cost-effective 16-ohm settings allows for the use of multiples of two, four, or six speakers in a system using a standard amplifier without a transformer
- Incorporates a painted steel grille for lasting durability
- Adaptable to material thicknesses ranging from 0.04 to 1.6�
- UL1480A and 2043, CE (EMC Directive 89/366/ EEC, EN55020, EN55013) approved
- High-quality white painted finish grille. Grille is paintable
- Included accessories: UL-listed 0.5" flex conduit clamp, paint shield, and two wire nuts
In the Box
- SoundTube Entertainment CM62-EZS-II 6.5" Coaxial In-Ceiling Speaker (White)
- UL Listed Flex Conduit Clamp
- Paint Shield
- Hole Template
- Wire Nuts
- Limited 5-Year Manufacturer Warranty
SoundTube Entertainment CM62-EZS-II Specs
| Active or Passive | Passive |
| Number of Included Speakers | 1 |
| Speaker Configuration | 2-Way |
| Power Handling | 50 W RMS 100 W Peak |
| Constant Voltage / Transformer Taps | 25 V: 4 / 2 / 1 / 0.5 W or 16 Ohms Bypass 70 V: 32 / 16 / 8 / 4 / 2 W or 16 Ohms Bypass 100 V: 32 / 16 / 8 / 4 W |
| Impedance | 16 Ohms |
| Enclosure Type | Sealed |
| HF Driver | 1 x 1" / 25.4 mm Silk Soft-Dome Tweeter |
| LF Driver | 1 x 6.5" / 165.1 mm Woofer |
| LF Voice Coil | 1" / 25.4 mm |
| Frequency Range | 65 Hz to 22 kHz ±10 dB |
| Frequency Response | 125 Hz to 22 kHz ±3 dB |
| Maximum SPL | 107.5 dB |
| Sensitivity | 90 dB |
| Coverage Angle | 120° at 2 kHz (Conical) |
| Directivity | 5.1 dB (Directivity/Q Factor) 6.2 dB (Directivity Index) |
| Crossover | 4 kHz |
| I/O | 1 x Barrier Strip 4-Pin Speaker Input |
| Maximum Wire Gauge | 10 AWG |
| Environmental Protection | None |
| Color | White |
| Mounting | In-Ceiling |
| Cutout Depth | 3.5" / 88.9 mm |
| Mount Surface Thickness | 0 to 1.6" / 1 to 40.6 mm |
| Construction Material | ABS, Steel |
| Dimensions | 9.67 x 3.37" / 245.62 x 85.6 mm |
| Weight | 7 lb / 3.2 kg |
| Package Weight | 9.05 lb |
| Box Dimensions (LxWxH) | 14.8 x 13 x 6.1" |
