SoundTube Entertainment CM400i 4" Coaxial In-Ceiling Speaker (White)

Roll over image to zoom in

SoundTube Entertainment CM400i 4" Coaxial In-Ceiling Speaker (White)


	₹ 40350.0 includes GST and import duties.
	B2B customers can avail ₹ 6153.38 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	SoundTube Entertainment
SKU:	8911321744

Share this product

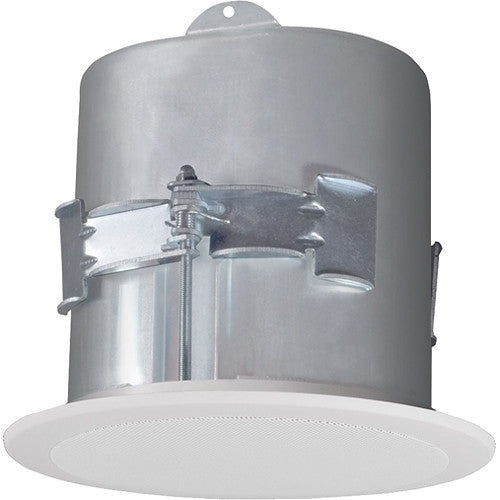

The white CM400i 4" Coaxial In-Ceiling Speaker by SoundTube is a two-way, blindmount, in-ceiling speaker that delivers effective low-end response and optimal off-axis performance. The CM400i speaker design incorporates a low-profile grille and five position tap switch with a transformer bypass position. Mounting hardware is included and features a fast and secure constant-tension fixed-wing mounting system.

One 4" polypropylene woofer and one 1" convex aluminium tweeter with FerroFluid cooling

Rapid installation blind-mount, fixed-wing mounting mechanism with constant tension design affixed to ceiling

Separate tool-free magnetic grille and bezel assembly for ease of install and in-field painting

Powder-coated steel grille for lasting durability

90 dB average sensitivity, offers high output capabilities and reduced amplification costs

High-quality white paint finish

In the Box

SoundTube Entertainment CM400i 4" Coaxial In-Ceiling Speaker (White)

Color-coded (orange) tile bridge
Paint mask
UL cover plate
Limited 5-Year Warranty

Speaker Type	48" coaxial, in-ceiling, ported (20 W transformer for 25, 70.7, 100 VDC or transformer bypass)
Impedance	4 ? nominal
Sensitivity	90 dB @ 2.83 V/1 m 87 dB @ 1 W/1 m (1 W 1 m sensitivity determined using nominal impedance)
Frequency Response	90 Hz - 22 kHz @ -3 dB 75 Hz - 22 kHz @ -10 dB (Frequency response measured in half or full space as dictated by speaker mounting configuration) Frequency response measured in half or full space as dictated by speaker mounting configuration.
Max. Program Power	40 W (Max program power is 3 dB above max continuous power)
Max. Continuous Power RMS	20 W (Continuous power rating, EIA-426-B test)
Max. power SPL	100 dB @ 1 m (Max output based on max continuous power)
Coverage Angle	100ï¿½ (-6 dB @ 2 kHz) 65ï¿½ (-6 dB @ 10 kHz) 95ï¿½ (averaged 2-10 kHz)
Directivity Factor	4.6 (averaged 100 Hz - 10 kHz) 4.3 (2 kHz)
Directivity Index	5.6 dB (averaged 100 Hz - 10 kHz) 6.3 dB (2 kHz)
Tap Selector	5-position rotary switch with transformer bypass position
Transducer	Low-Frequency Driver: 4" (102 mm) Polypropylene cone, butyl rubber surround High-Frequency Driver: 1" (25 mm) Silk dome tweeter
Voice Coil	Low-Frequency: 0.75" (19 mm)
Crossover Frequency	1.8 kHz
Network Type	Low and High Pass 12 dB per octave, 2nd order
Certifications	UL 1480 and 2043 Approved CE Approved
RoHS	Approved
Input Connector	1 x 4-pin, Euroblock terminal
Color	White
Mounting Holes Diameter	6.6" (167.6 mm)
Ceiling Thickness	0.025 to 1.87" (0.6 to 47.5 mm) minimum to maximum
Dimensions (ï¿½ x D)	6.05 x 6.55" (153.7 x 166.4 mm)
Weight	5.5 lb (2.5 kg)

Packaging Info
Package Weight	7.0 lb
Box Dimensions (LxWxH)	10.0 x 10.0 x 9.0"

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

Quantity	Price
2	₹ 39543.0
3-5	₹ 39139.5
5-10	₹ 38332.5
10+	₹ 37525.5

Bulk discount will be automatically applied during checkout based on quantity.
