SparkFun pi-top [4] Complete

Design, code & make anything you can imagine.

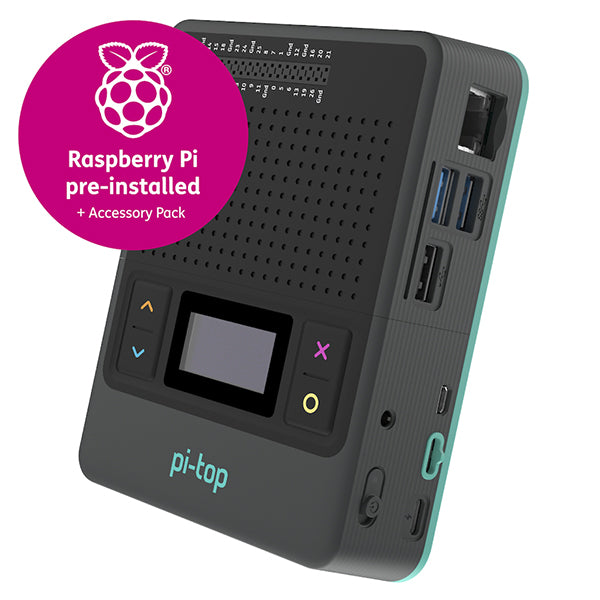

pi-top [4] Complete is the fastest and simplest way to start using Raspberry Pi. Everything you need to power up your projects is pre-installed in this rugged case, including the Raspberry Pi 4 itself.

Paired with our Sensor Foundation Kit, pi-top [4] Complete is a Raspberry Pi kit that will take you from beginner to superuser. With the modular pi-top [4] system you can create anything from a musical instrument to the ultimate alarm system. Explore our online project library to learn to code and control your creations.

Please note: You can use your own components and sensors - pi-top [4] is compatible with Grove components, Arduino, BBC micro:bit and many others. Or purchase pi-top [4] with our Sensor Foundation Kit including 14 components including LEDs, sound & light sensors, buttons and more.

Every pi-top [4] comes with the latest operating system, pi-topOS SIRIUS. Built on the rock-solid foundations of Raspbian (Buster), it�s packed with features and sports a clean, crisp look and feel.

There's a whole range of apps; from Scratch 3 and Mu for coding to GIMP for image editing and Sonic Pi for making music. There�s even access to cool games like Minecraft Raspberry Pi edition.

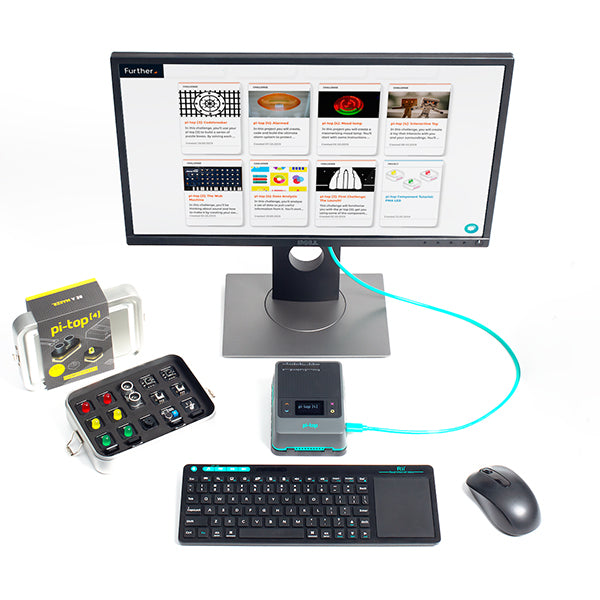

You'll need to connect to your pi-top [4] to a monitor & keyboard, or to a laptop, tablet, or desktop computer.

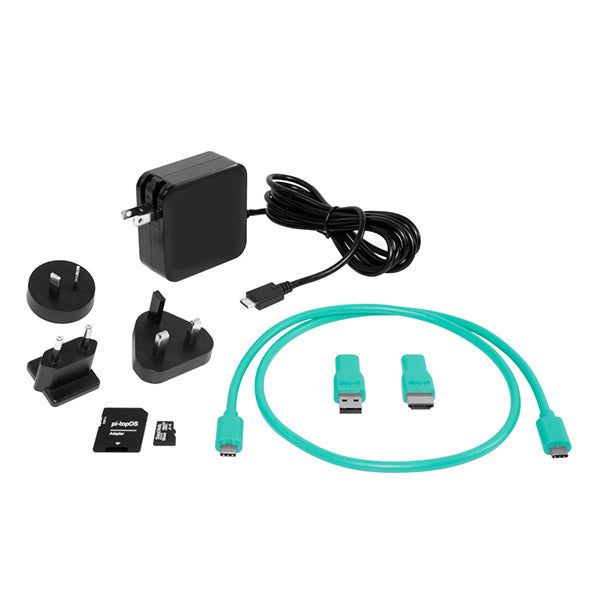

Includes:

• A pi-top [4]
• Raspberry Pi 4 with 4Gb RAM
• 16Gb SD card with pi-topOS
• 15V 36W USB-C PD Power Supply
• pi-top Display Cable
• HDMI Adapter
• USB Adapter
• Online project library with dozens of step-by-step project tutorials (most tutorials make use of the Sensor Foundation Kit)

Features:

pi-top [4] computing power

• Single Board Computer: Raspberry Pi 4 Model B
• CPU: Quad Core 64 bit SoC @ 1.5 GHz
• Memory: 4GB LPDDR4
• Storage: 16 GB micro-SD card (Gigabit Ethernet up to 1 Gbps)
• Wi-Fi: 2.4 GHz + 5.0 GHz IEEE 802.11ac
• Bluetooth: Low Energy v5.0
• Multimedia: H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES, 3.0 graphics

pi-top [4] cooling system

• Heat Sink: Aluminium finned heat sink for Raspberry Pi 4 SoC
• Fan: Integrated 0.9 Watt centrifugal cooling fan (30 x 30 x 7 mm)
  • Air flow rate: 1.5 CFM
  • Static Pressure: 92 Pa
  • Raspberry Pi CPU temperature at 100% 4-core CPU load:
    • Inside pi-top [4]: 64 °C
    • Standalone RPi: 85 °C with thermal throttling of CPU due to max temperature of Pi being 85 °C

pi-top [4] battery and power

• Charge Time: 1 hour 15 minutes from 0% to 100%
• Discharge Time:
  • 5 hours as standalone pi-top [4]
  • 2.5 hours with screen/keyboard attached
• Battery Type:
  • Built-in 19.24 Watt-hour (7.4 V, 2600 mAh) Lithium Polymer Battery
  • 5 hours as standalone pi-top [4]
  • 2.5 hours with screen/keyboard attached
• Voltage:
  • Min = 6 V, Nominal = 7.4 V, Max = 8.4 V
• Power Supply:
  • 36 Watt, 12 V, 3 Api-top [4] connectors

pi-top [4] connectors

• DC Jack: 5.5 x 2.1mm barrel jack, 12 V, 3 A

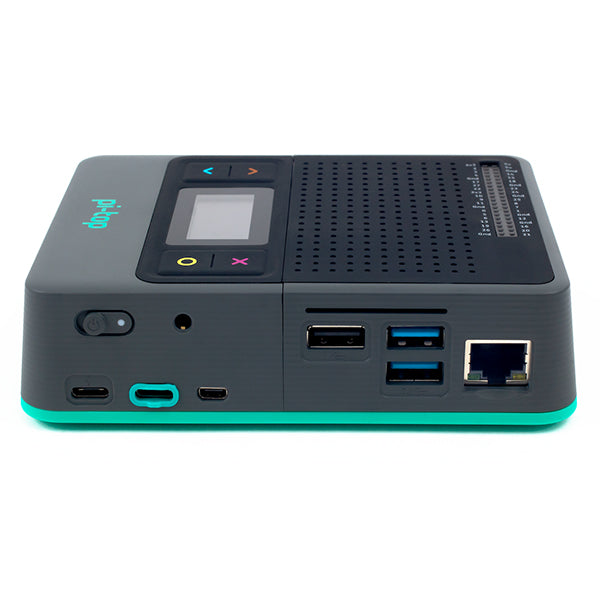

• HDMI: 1 x micro HDMI out ports (support HDMI Audio)

• 1 x pi-top Display port: this comes with the USB2.0 and HDMI adapters to connect to monitors or computers (listed below)

  • 1 x pi-top display cable
  • 1 x pi-top Display port cable to USB2.0 adapter
  • 1 x pi-top display port cable to HDMI adapter

• 3.5mm Audio Jack aka Headphone Jack: Stereo audio and analogue video out. Same 4-pole TRRS pinout as Raspberry Pi 4

• USB: 2 x USB 3.0 and 1 x USB 2.0
• Ethernet: 1 x RJ45 Gigabit Ethernet Socket
• GPIO: 40-pin female socket (28 programmable General Purpose Input/Output)
• Micro SD Card Slot: Externally-accessible micro SD card slot for Raspberry Pi
• CSI / DSI Ribbon Cable Slots: Slots provided for easy routing of camera (CSI) and display (DSI) cables to/from Raspberry Pi
• pi-top Maker Architecture (PMA)Connector: Single 100p Connector carrying Raspberry Pi GPIOs, USB 2.0, Power and DSI for interfacing to all peripherals and the pi-top Maker Architecture; includes pi-top [4] back power capability
• Pogo Interface: 8 pins with 5 V, UART, and I2C. Can also identify the plate connected

pi-top [4] speaker

• Internal Speaker: 1 W Nominal (2 W max), mono speaker

pi-top [4] physical specification

• Dimensions: 131.9 x 99.4 x 34 mm
• Weight: 0.51 kg

pi-top [4] user interface

• Programmable Buttons: 4 x Buttons, also available on system standby
• Mini Display: OLED Monochrome Screen, 128 x 64 pixels. Available on system standby
• Power Switch: Power on device + Soft/Hard Shutdown
• Status LEDs: Raspberry Pi Power LED (Red) + SD Card Activity (Green) + Power Supply LED

Documents:

• pi-top[4] Quick Start Guide

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
