| ₹ 11630.0 includes GST and import duties. | |
| B2B customers can avail ₹ 1773.58 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

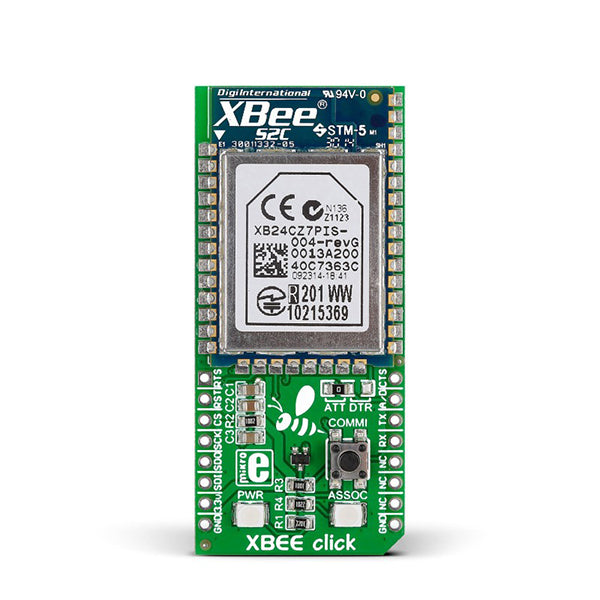

MIKROE XBee Click carries the Xbee�® and Zigbee-compliant XB24CZ7PIS-004 module with a PCB antenna from Digi International. The module provides wireless connectivity to end-point devices in ZigBee mesh networks. The module has a wireless range of up to 60 meters indoors, or up to 1200m in outdoor line-of-sight applications. The RF data rate is up to 250,000 Kbps. The board can communicate with the target MCU either through the mikroBUS UART interface (TX, RX, RTS i CTS), or SPI (MISO, MOSI, SCK, CS). Additional functionality is provided by Reset, and ATTN-DTR pins. To simplify deployment, the click board features a pushbutton to issue simple configuration commands with subsequent button presses. Uses 3.3V power supply only.
Features:
- Interface: SPI, UART, GPIO
- Compatibility: mikroBUS�
- Dimensions: 57.15 x 25.4mm
- Input Voltage: 3.3V
Documents:
Videos
Bulk Discount
| Quantity | Price |
| 2 | ₹ 11397.4 |
| 3-5 | ₹ 11281.1 |
| 5-10 | ₹ 11048.5 |
| 10+ | ₹ 10815.9 |
Bulk discount will be automatically applied during checkout based on quantity.
