Description

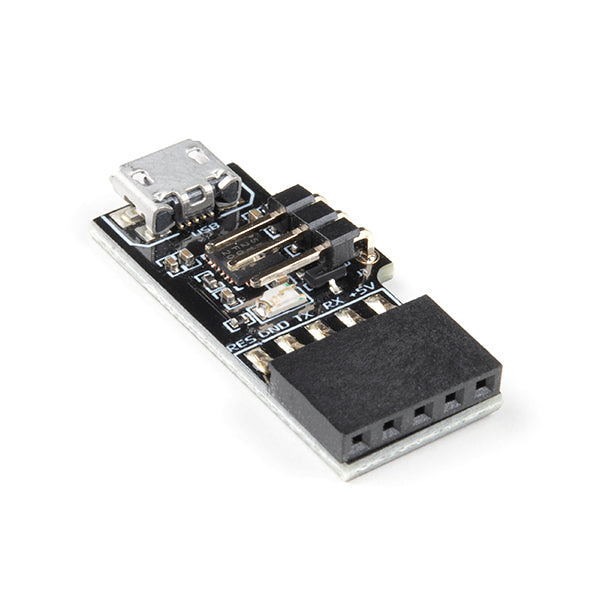

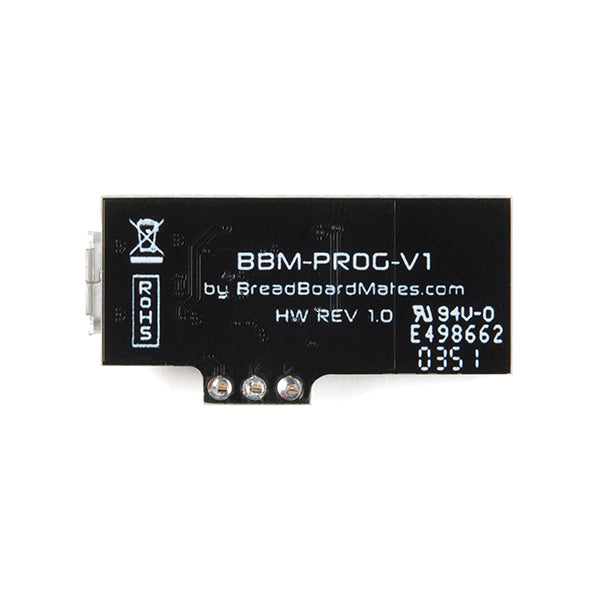

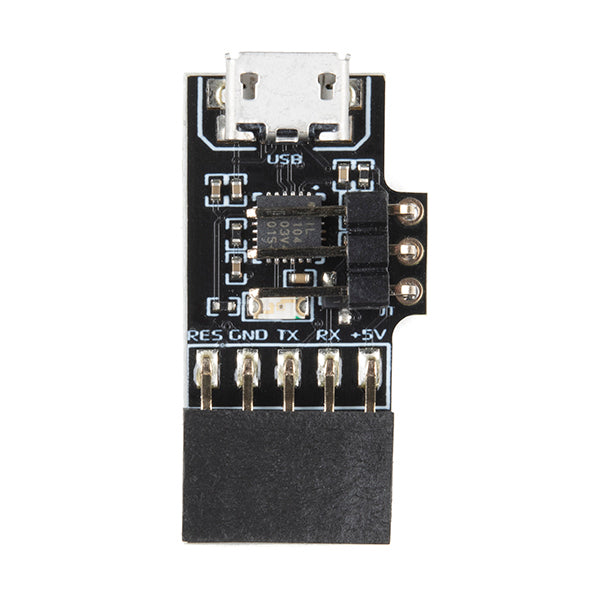

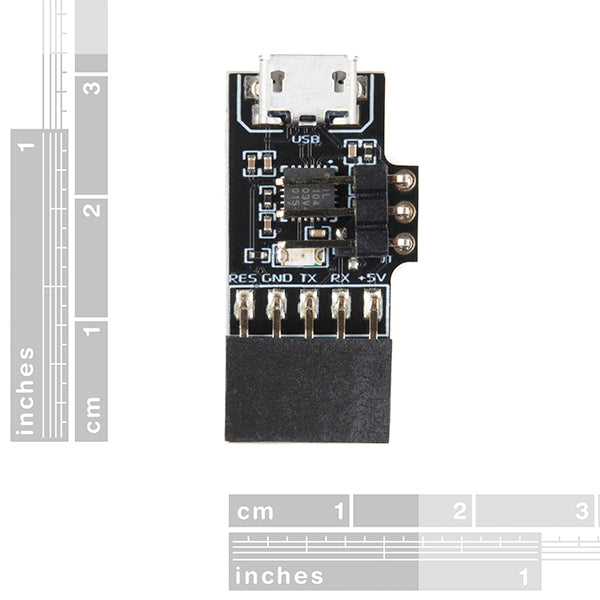

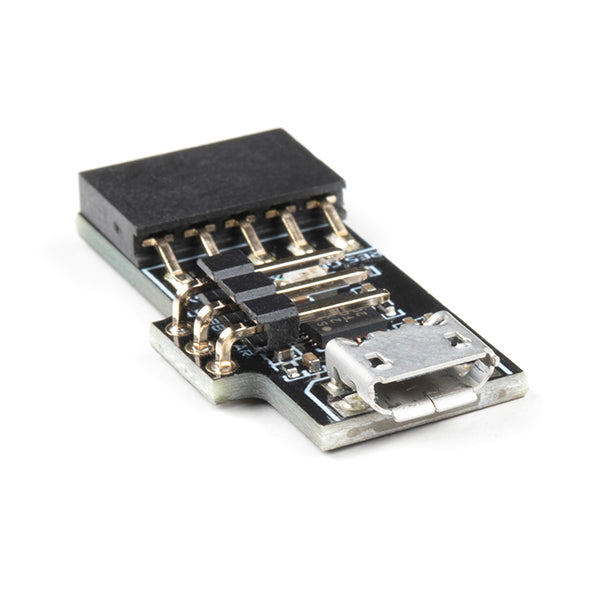

The Mates Programmer is a simple USB programmer for all Breadboard Mates products, providing a simple five-way programming interface and selection option for programming other devices such as �barebones� Arduino (Atmel) processors.

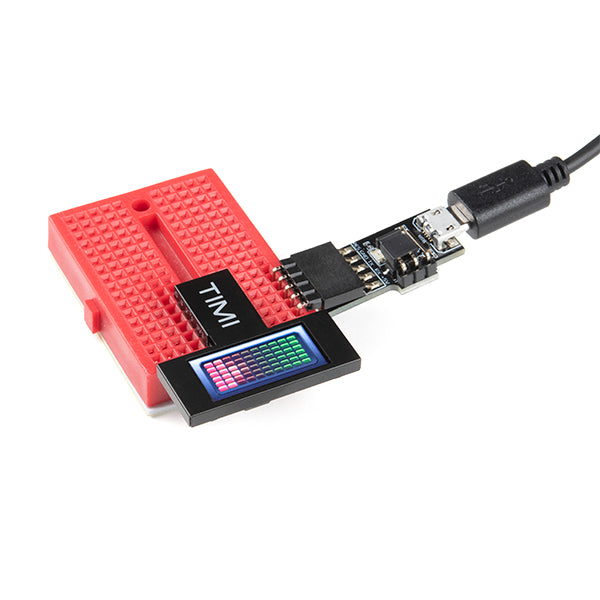

The BreadBoard Mates Programmer offers a simple connection for a MatesBUS compatible device, such as the TIMI-96, connecting to one side (5-pin) of the MatesBUS interface, allowing easy programming of the device using Mates Studio.
The Mates Programmer has a microUSB Interface to connect the programmer to the PC, using a standard microUSB cable; it then utilizes a standard 5-pin interface for programming the 4D Labs processors found Breadboard Mates products, such as the TIMI-96. This 5-pin interface is one side of the MatesBUS Interface. The MatesBUS Interface is made up of two rows of five pins, 0.1� (2.54mm) pitch, spaced 0.3� (7.62mm) apart, ideal for direct plug into a breadboard or compatible adapter or development board.
Note: The Mates Programmer does not come with the microUSB cable.

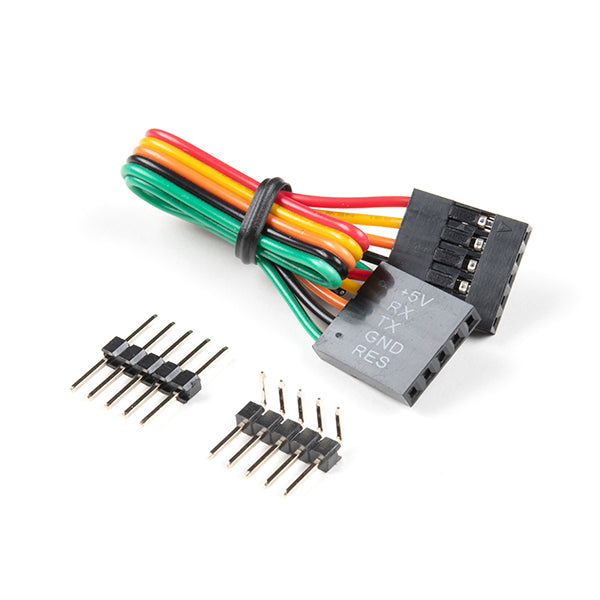

Includes:
- 1x Mates Programmer
- 1x 5-pin header straight
- 1x 5-pin right angle header
Documents:
