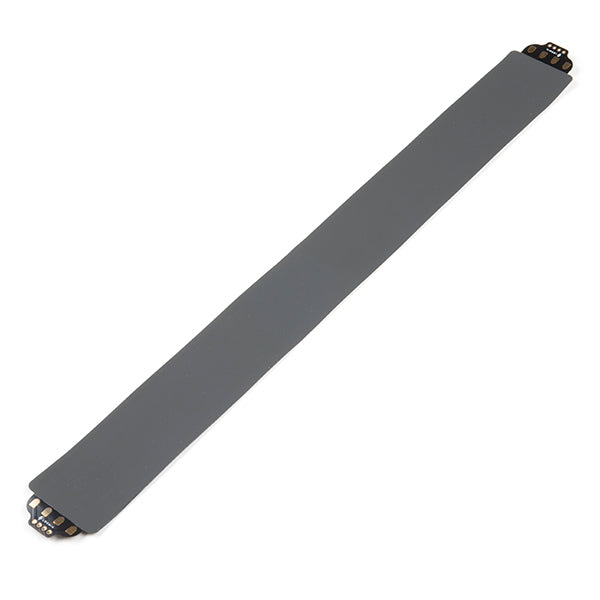

SparkFun Loomia 4-Wire Bus

The straight Loomia 4-wire Bus has four leads that are each 0.15in wide. Each "wire" is low resistance, giving you fast data speed and solid wattage without heating up. Each bus is twistable, drapable, and bendable for all soft circuit needs. This bus can be easily soldered to the S-curve Bus or C-Curve Bus to make different shaped traces for wearable tech applications.

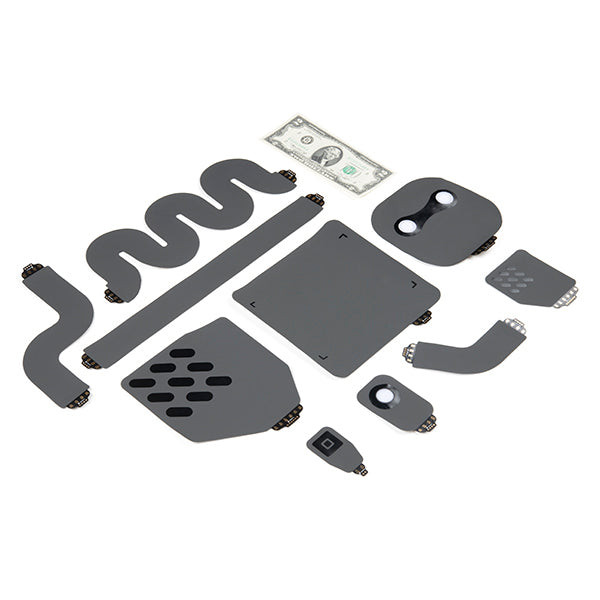

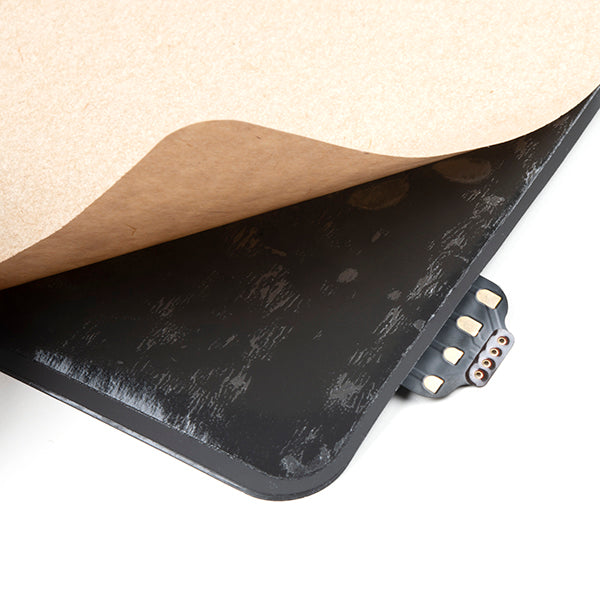

Loomia parts are designed to be easily soldered together, and work well with popular micro controllers like Arduino Nano and Teensy. The system revolves around Loomia's custom interconnect, which allows for a simple connection between buses. The interconnect can be soldered to headers for easy breadboarding. From fabric to wood, Loomia components can stick onto a range of materials, making your prototypes look clean and polished.

Note: There are a number of operating procedures to be aware of before using Loomia products. This includes directions to not wash or sew any of the parts. Make sure to check the Datasheet in the Documents tab for more information.

Documents:

• Datasheet
• Quick Start Guide
• Pinout Guide
