Description

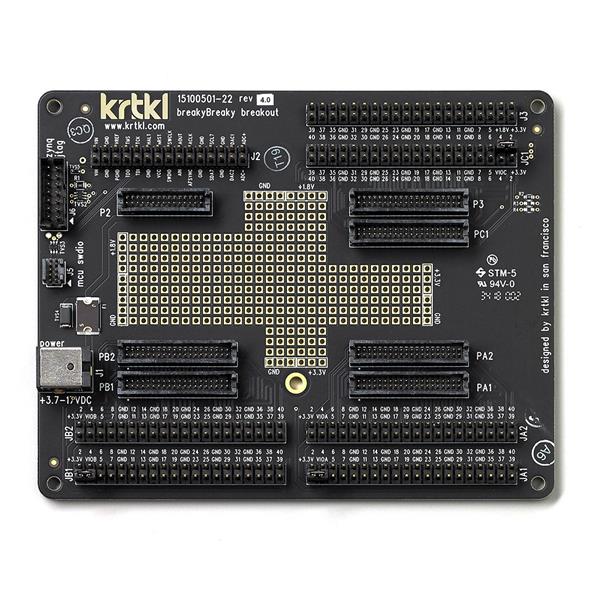

krtkl breakyBreaky Breakout Board is a snickerdoodle breakout baseboard that enables engineers to access the full snickerdoodle pinout via 0.1" (2.54mm) headers. For applications and projects that have less stringent size constraints, the 3.94�4.92" (100�125mm) breakyBreaky comes loaded with 270 pins, and a 14-pin Xilinx JTAG header, a 0.1" (2.54mm) grid plated-through-hole prototyping area, DC power jack, and four adhesive-backed locking PCB supports.
Features:
- I/O
- 270 I/O pins on 0.1� Pitch Headers
- Programming Interfaces
- 14-pin 2mm Xilinx JTAG Header
- Additional Features
- 0.1" grid plated-through-hole prototyping area
- Power
- 5-12V via 2.5x5.5mm DC Barrel Jack
- Mechanical
- 4.92x3.94" (125x100mm)
- 4 adhesive-base locking PCB supports
