Description

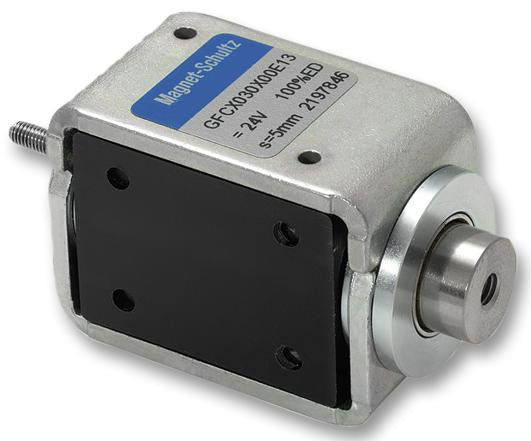

The GFCX030X00E13,24V100% from Magnet Schultz is a DC open frame solenoid.
- According to DIN VDE 0580 and ISO9001 standards
- Small dimension
- Push and pull operation
- High endurance, maintenance free PTFE armature and pushrod bearings
- Coil with insulation to Class F
- Encapsulated coil
- Power Consumption is 7W
- Work rating of 2.2Ncm
- Standard voltage of 24V
- Available with linear shotbolt / spring return for energise to lock or unlock operation
Applications
Industrial, Power Management, Automation & Process Control
Product details
| Coil Voltage | 24VDC |
| Coil Resistance | - |
| Holding Force - Metric | 4.3N |
| Solenoid Duty Cycle | - |
| Product Range | - |
| Coil Power Continuous | 7W |
| Solenoid Operation | Push or Pull |
Other details
| Brand | MAGNET SCHULTZ |
| Part Number | GFCX030X00E13,24V100% |
| Quantity | Each |
| Technical Data Sheet EN |  |
