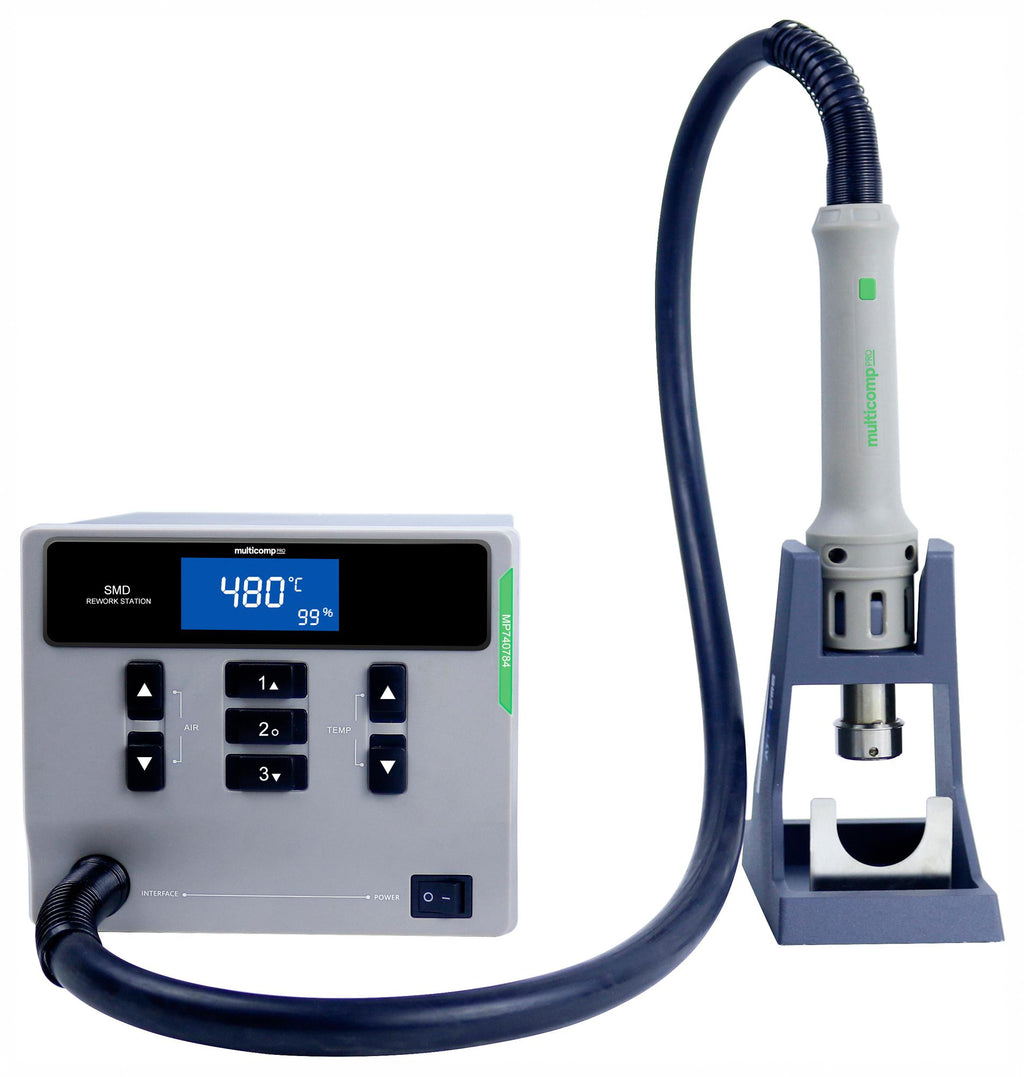

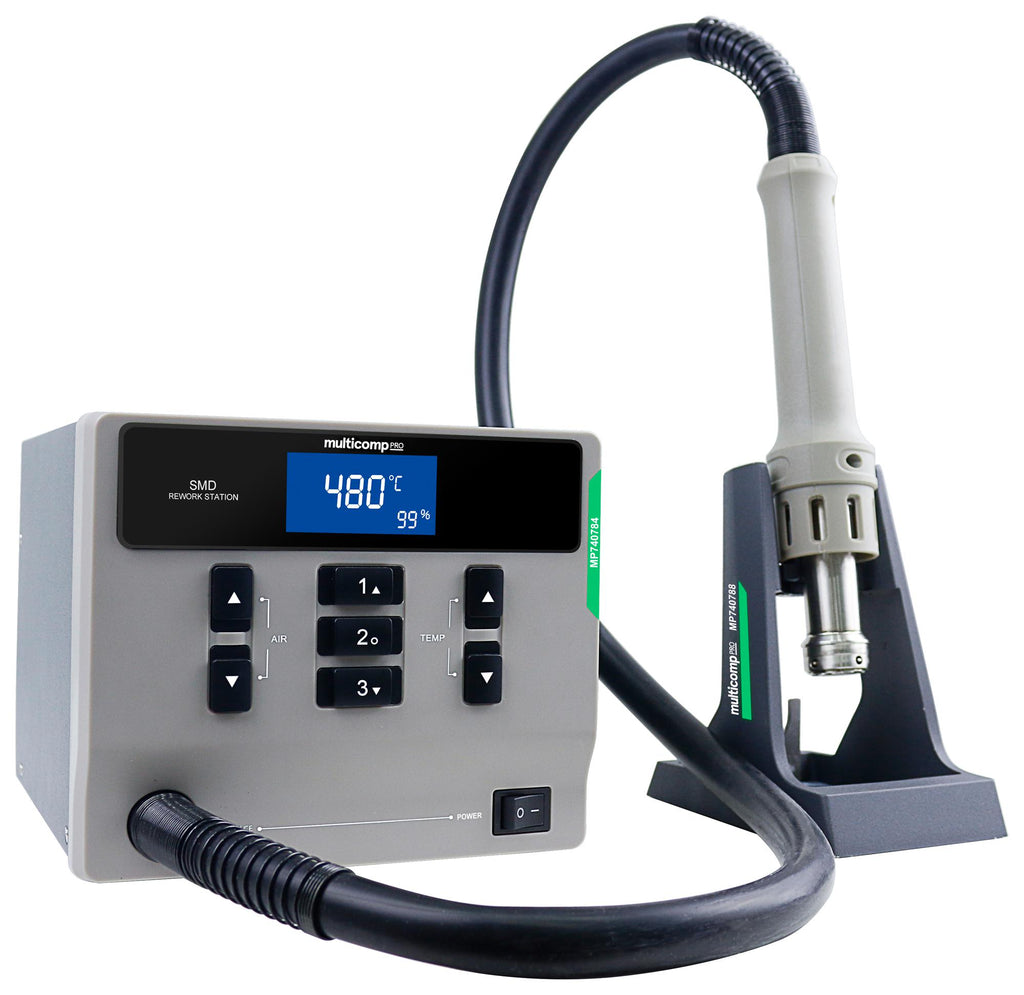

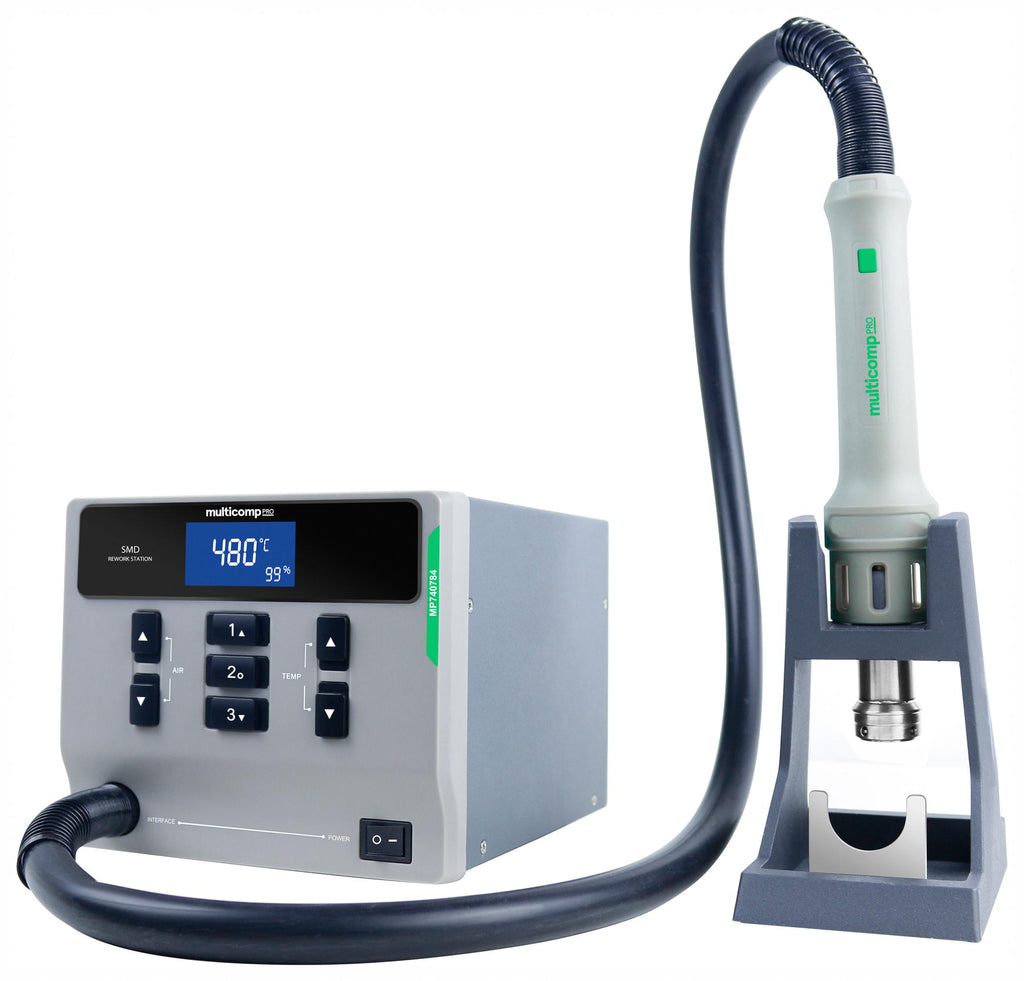

Multicomp PRO MP740784 EU MP740784 EU Hot Air Station 1 kW 230 Vac

This Multicomp Pro Hot Air Station has LCD display screen for control visualization, temperature unit switching, locking and auto-sleep functions. Built in Timer and Temperature Calibration. Easy to replace with pluggable heater and convertible with straight air and spiral air.

• Voltage: 230V AC ±10% 50Hz
• Power: 1000W
• Temperature Range: 100°C to 480°C / 212°F to 896°F
• Temperature unit: °C / °F (default °C)
• Fuse Type: T6.3A
• Temperature Accuracy: ± 35%
• Setting Range of air volume: 1% to 99%
• Heater: Pluggable
• The standard nozzles: MP740789, MP740794, MP740791, MP740792
• Working condition: Temperature: 0°C to 40°C, Relative Humidity: <80%

• Storage condition: Temperature: -20°C to 80°C, Relative Humidity: <80%
• Air flow: 20L/min to 130L/min
• Dimension: 208(L)x175(W)x150(H)mm
• Weight: 3340g

Applications

Embedded Design & Development, Electronics Design, Industrial, Installations

Contents

x1 Main unit; x1 Hot air gun holder; x4 Spray nozzles; x1 Power cord; x1 Ground wire; x1 Manual

Footnotes The hot air handle is connected with the main unit with the un- pluggable cable

Other details

Brand	MULTICOMP PRO
Part Number	MP740784 EU
Quantity	Each
Technical Data Sheet EN
User Manual EN
