ERSA 0IC1105A0C Soldering Station, 230 VAC, 80 W, 450°C Max, i-CON 1 MK2 Series

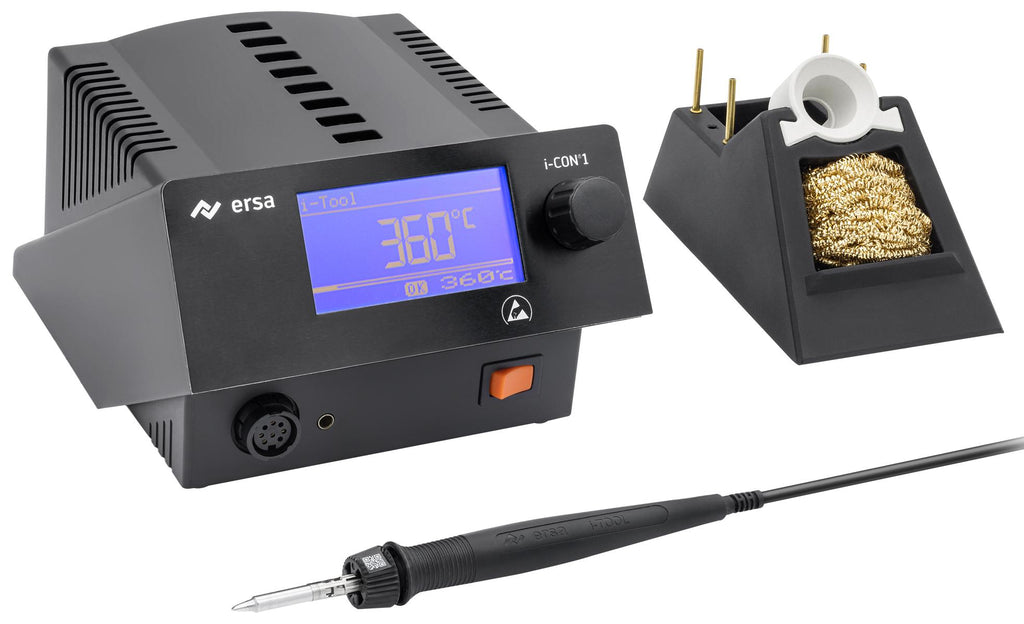

0IC1105A0C is a i-CON 1C MK2 soldering station with interface, complete with i-TOOL MK2 soldering iron (0105CDJ), soldering tip 0142CDLF16 and holder 0A59 with dry sponge 0008M. The digital i-CON 1 MK2 control station features the modern �OneTouch� operating concept with iOp control and large, backlit plain text display. i-CON 1C and i-CON 1VC, the versions with interface, provide for the connection of an IR heating plate and a solder fume extraction system. The i-CON 1 MK2 is suitable for all SMT and PTH soldering tasks in electronic production, rework and R&D. The powerful i-TOOL provides sufficient energy for high mass solder joints; a wide range of i-Tips allows to quickly adapt the tool to the current soldering task.

• Digital soldering station with ergonomic and powerful 150W i-TOOL MK2 soldering iron
• Motion sensor in the hand piece for energy and tip saving standby mode
• Easy operation - intuitive one touch push button and large multifunctional displays
• Optical information when the optimal process window is reached
• Available with interface to solder fume extraction unit, heating plate and PC
• Dimensions (W x D x H) is 150 x 175 x 105mm
• 80W power rating, 230VAC nominal voltage
• Temperature range from 150 to 450°C
• Heat up time is 9sec
