| ₹ 3590.94 includes GST and import duties. | |
| B2B customers can avail ₹ 547.62 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

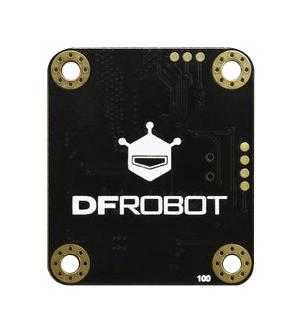

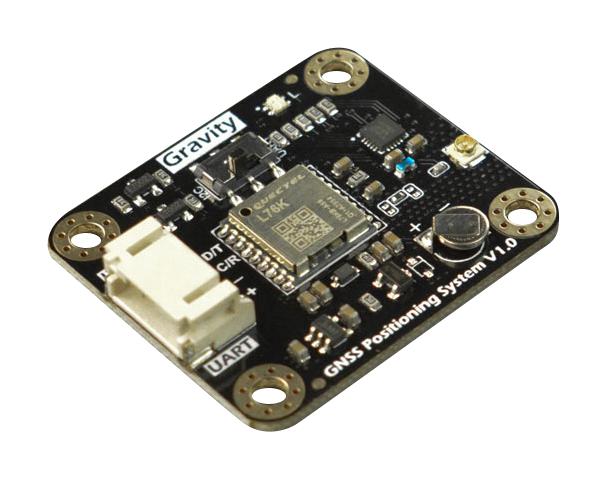

TEL0157 is a Gravity: GNSS GPS BeiDou receiver module (I2C&UART). This GNSS BeiDou positioning module supports multi-satellite system joint positioning and provides high-precision, high-speed, and stable data such as longitude, latitude, time, and altitude. It is suitable for various outdoor positioning scenarios, such as vehicle positioning, item tracking, weather stations, and outdoor positioning.
- Supports both single and multiple systems positioning
- Higher precision and faster speed than traditional single GPS positioning
- More stability and ease of use
- Operating voltage from 3.3 to 5.5VDC
- I2C/UART output signal
- 2m CEP positioning accuracy and 40mA power consumption
- Time for first positioning: 30s for cold start, 2s for hot start
- IPEX1 antenna interface
- Antenna frequency range from 1561-1575.42MHz ±3MHz
- Dimension of 27mm- x 37mm
Contents

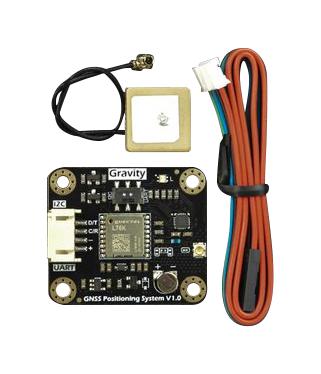

Gravity: GNSS positioning module, GPS/BeiDou active ceramic antenna (IPEX1 connector), Gravity 4P sensor cable.
Product details
Other details
| Brand | DFROBOT |
| Part Number | TEL0157 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 3519.12 |
| 3-5 | ₹ 3483.21 |
| 5-10 | ₹ 3411.39 |
| 10+ | ₹ 3339.57 |
Bulk discount will be automatically applied during checkout based on quantity.
