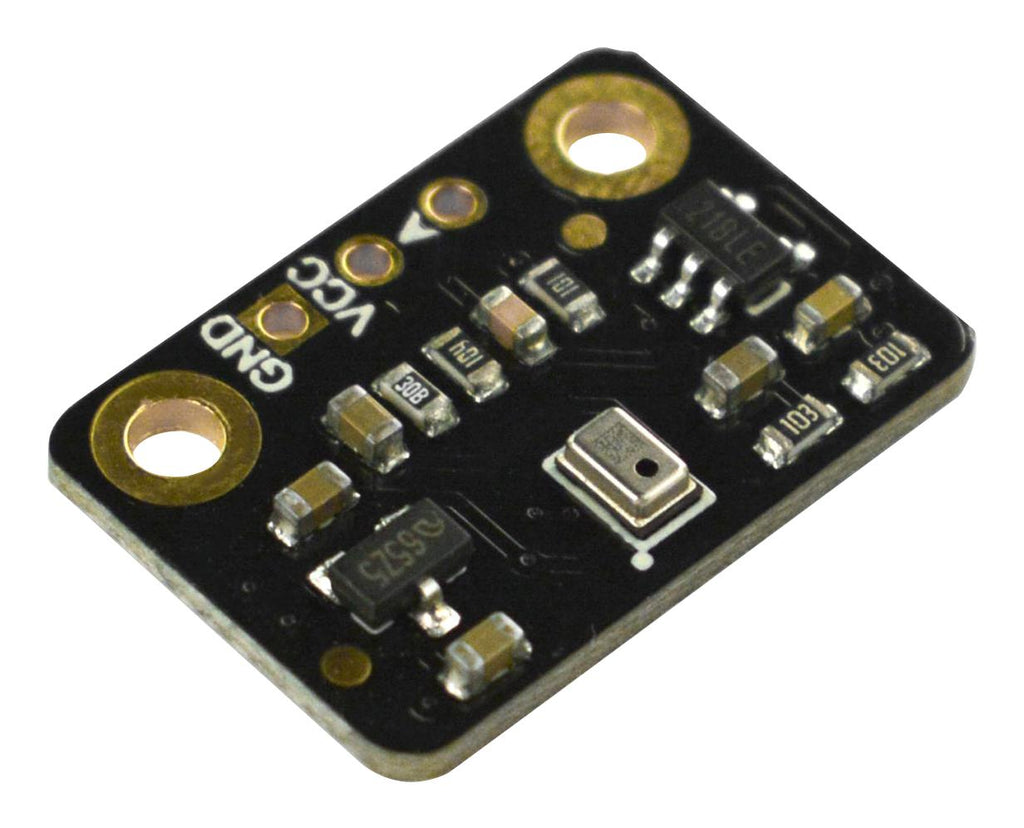

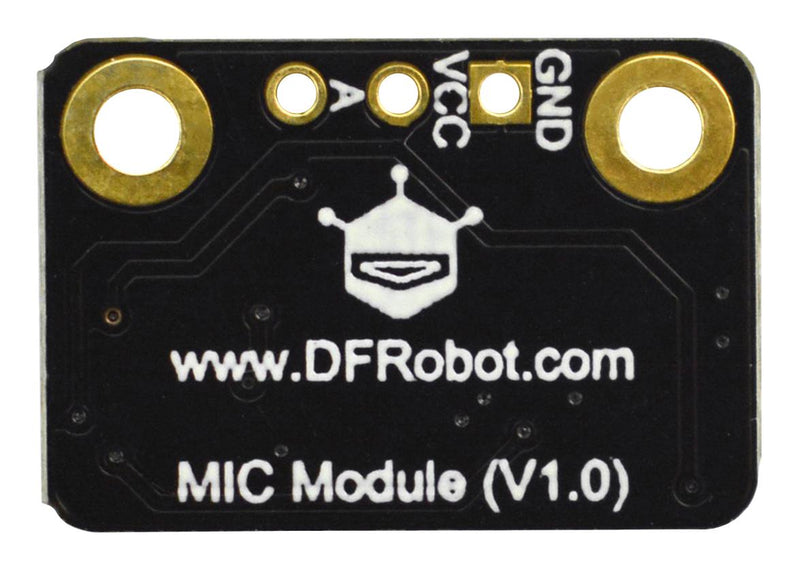

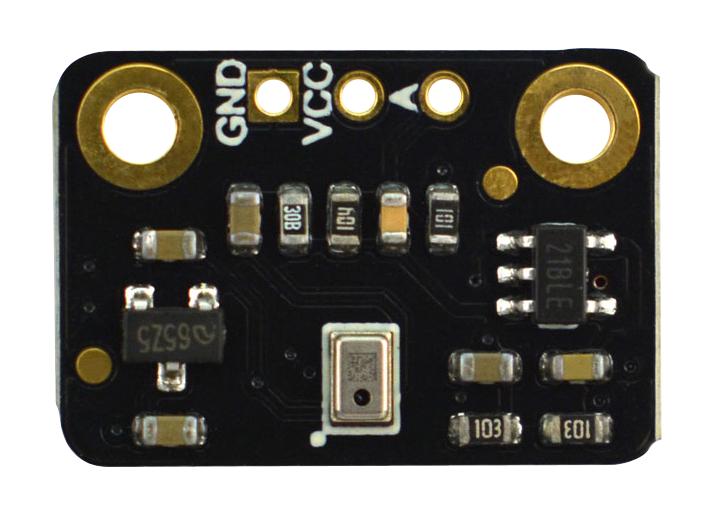

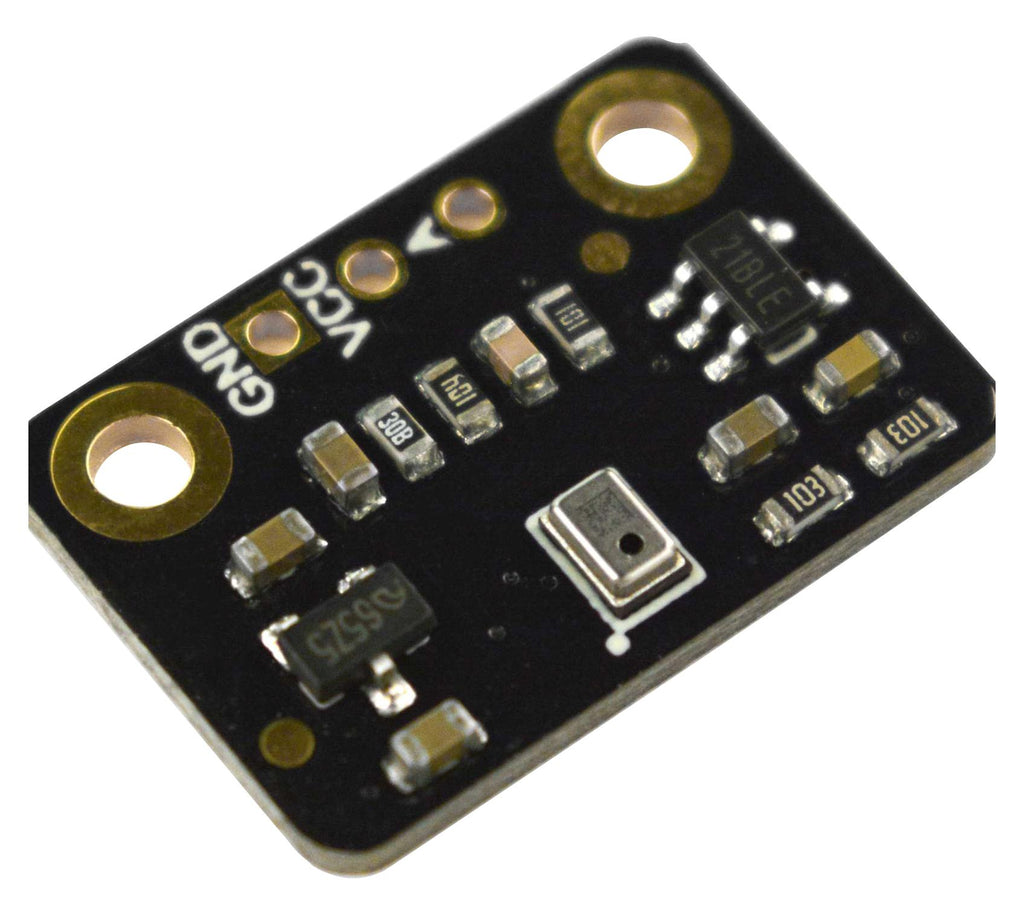

Fermion MEMS microphone module. This tiny MEMS microphone has an amplifier gain of 66. When there is no sound detected, it outputs voltage around 0.66xVCC. When speaking, you can easily get the acoustic waveform by ADC sampling. The module can be used on all kinds of 3.3V/5V main-controllers.
- Analog signal type
- 3.3V/5V power supply
- Directivity is all-round
- Sensitivity of -42dB
- 59dBA S/N ratio
- Frequency range of 100Hz to 8KHz
- Dimension of 18x12.5mm/ 0.71x0.49"
Contents

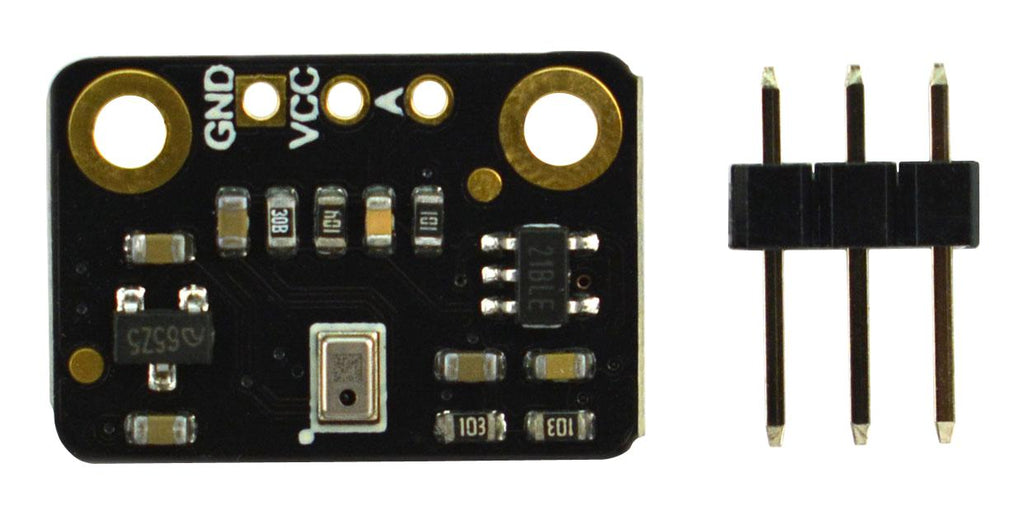

Fermion MEMS microphone module, 2.54-3P black single row pin header.
Product details
| Accessory Type |
MEMS Microphone Module |
| For Use With |
Arduino Board |
| Product Range |
- |
Other details
| Brand |
DFROBOT |
| Part Number |
SEN0487 |
| Quantity |
Each |
