Dfrobot SEN0156 Rotary Switch Analog Interface 3.3 V to 12 43 mm x 38 Arduino UNO R3 Board Gravity Series

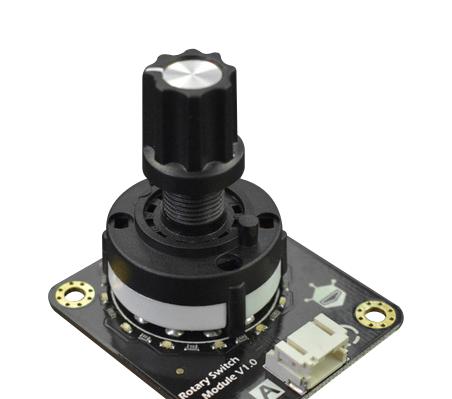

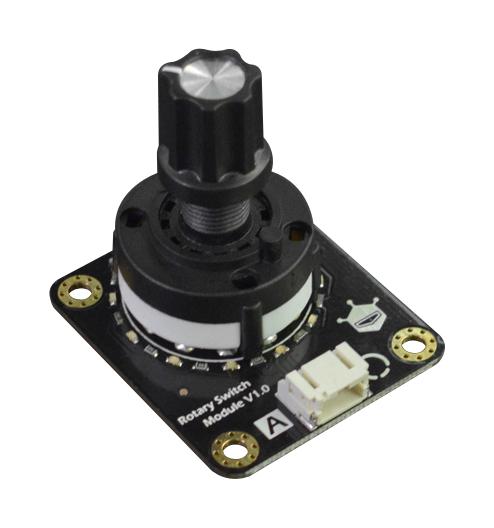

SEN0156 is a Gravity: analogue rotary switch module V1. Rotary switch is often used when more than 2 positions are needed, such as multi-speed control. The rotary switch uses an analogue input to read the 12 state which saves IO resource for the Arduino.

• 2-12 selectable tap position

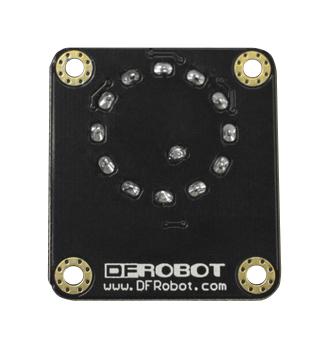

• Indicator LEDs for each position
• Supply voltage: voltage controller
• Analogue interface

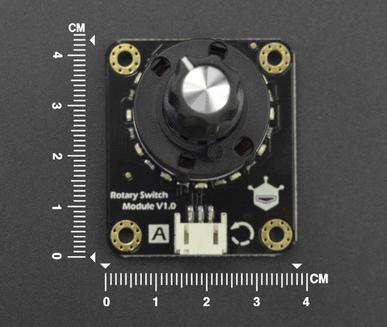

• Size is 43mm x 38mm x 40mm

Contents

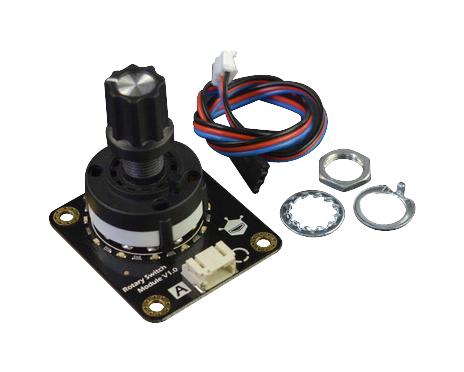

Rotary switch x 1, Analog interface cable x 1.

Other details

Brand	DFROBOT
Part Number	SEN0156
Quantity	Each
Technical Data Sheet EN
