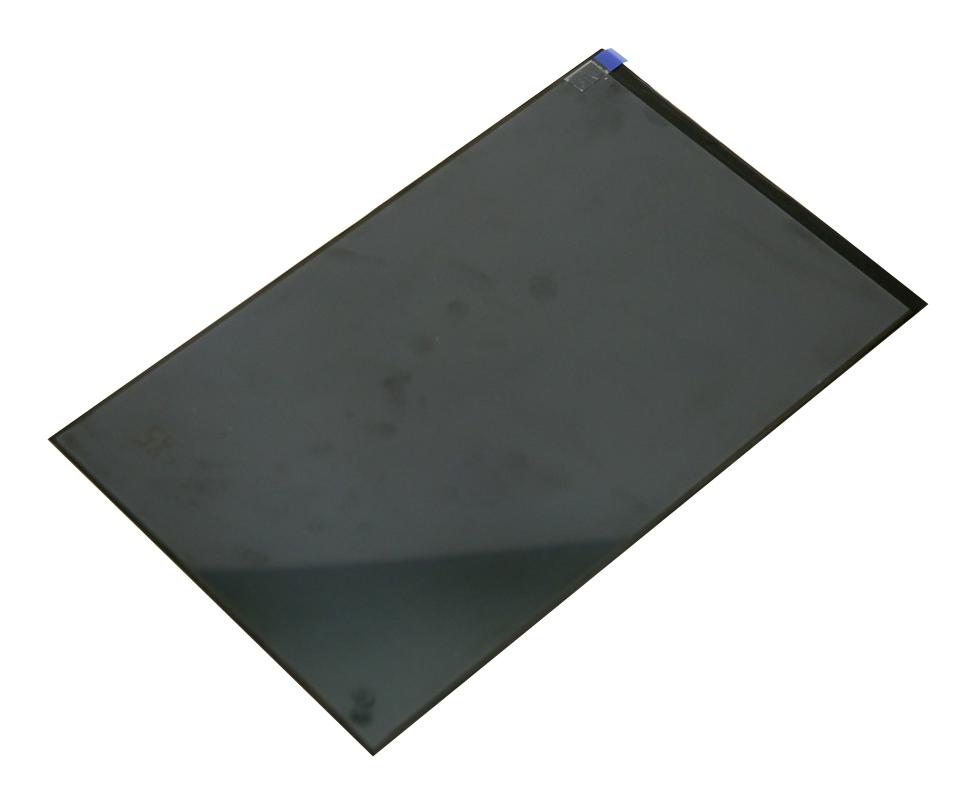

- 10.1", high resolution 1200 x 1920 IPS display for LattePanda V1 single board computer
- Supports LattePanda V1 (not compatible with LattePanda Alpha and Delta)
- Gives users ability to create all-in-one integrated projects (tablets, infotainments, embedded)
- Active area dimension of 135 x 217mm/5.31 x 8.54inch (10:16)
- Display dimension of 143 x 230 x 2.2mm/5.6 x 9.05 x 0.1inch
- TFT-LCD panel
- Resolution (RGB) of 1200x1920, WUXGA
- Brightness is 300 cd/m²
- 800:1 typical contrast ratio, 3W rated power
- MIPI-DSI signal input, 190g weight
Contents

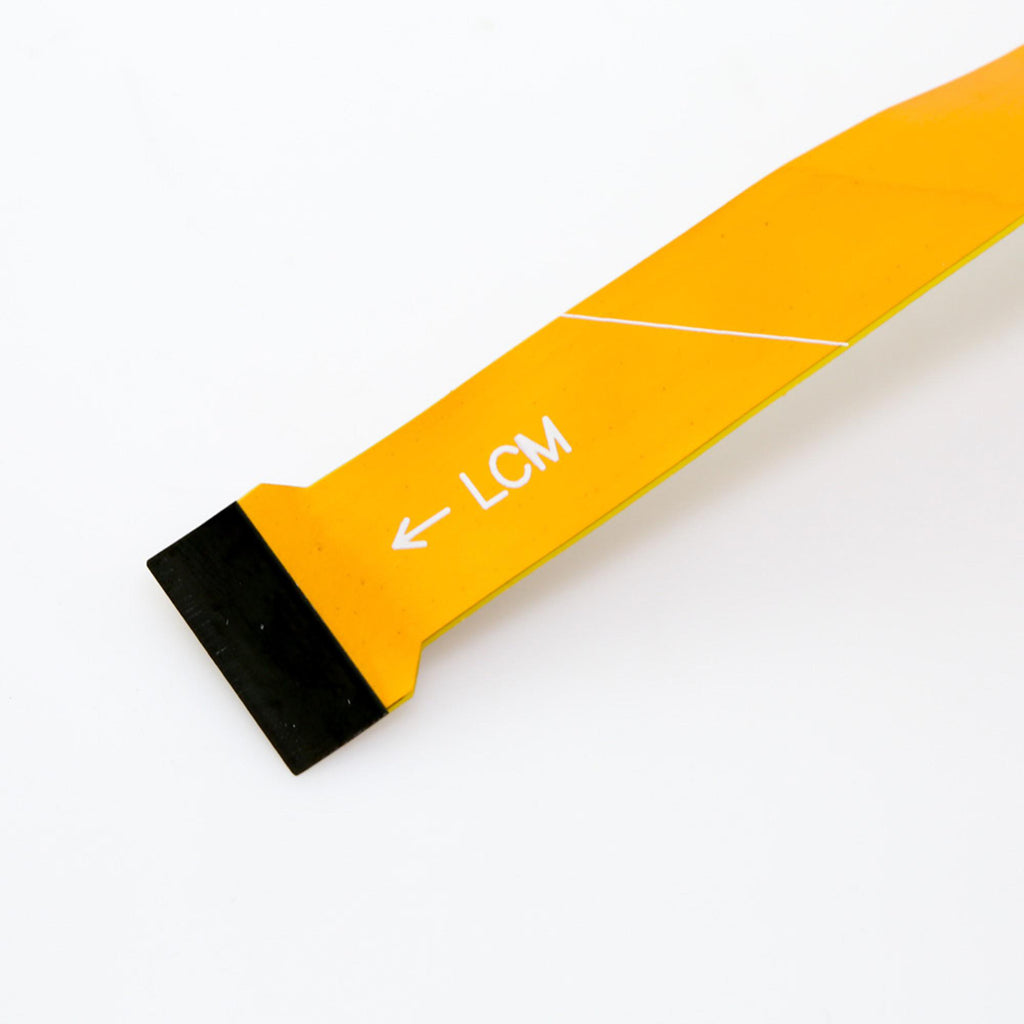

10.1" 1200 x 1920 IPS display, FPC cable x1.
Product details
| Accessory Type |
10.1" 1200 x 1920 IPS Display |
| For Use With |
LattePanda V1 Single Board Computer |
| Product Range |
- |
Other details
| Brand |
DFROBOT |
| Part Number |
FIT0515 |
| Quantity |
Each |
| Manufacturer Product Page EN |
 |
