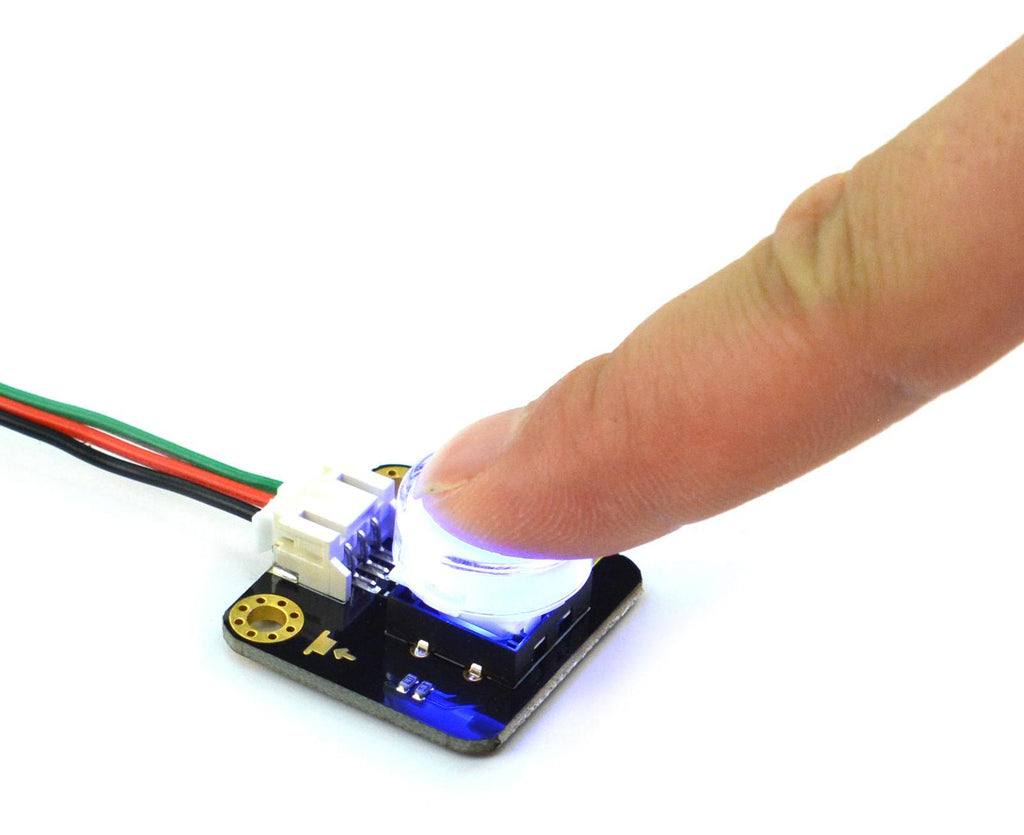

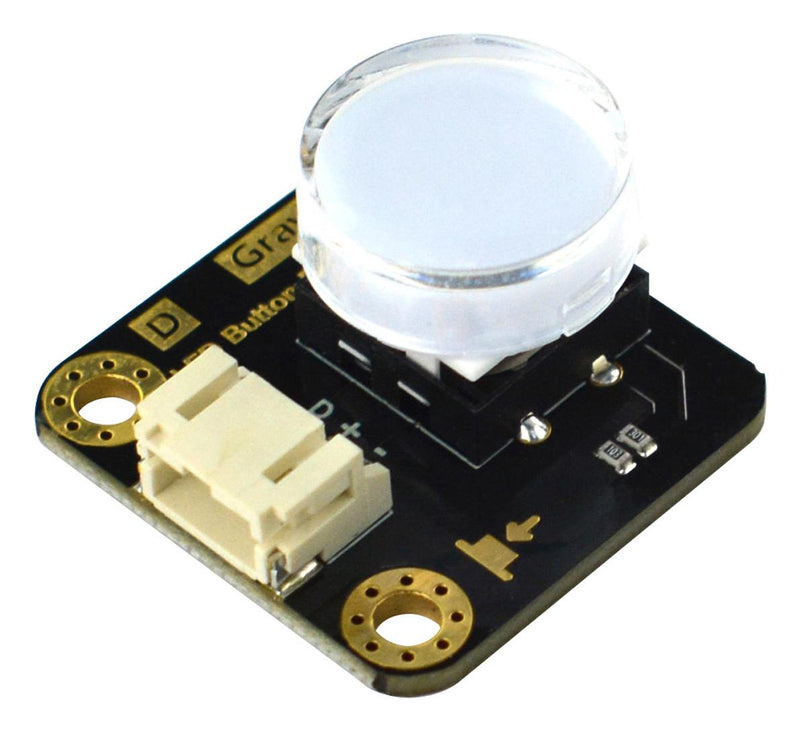

Simple gravity blue LED-illuminated switch button with a transparent cap. It's just like a basic switch button but it lights up colour blue when pressed down, which gives you visual feedback. This little button can be used with micro:bit to realize various fun interactive projects. When pressed down, the module outputs high and the LED lights up. When released, the module outputs low and the LED turns off.
- Internal LED turns on when the button is pressed down
- Operating Voltage: +3.3-5V (3.3V is recommended)
- Digital output
- PH2.0-3P connector
Contents

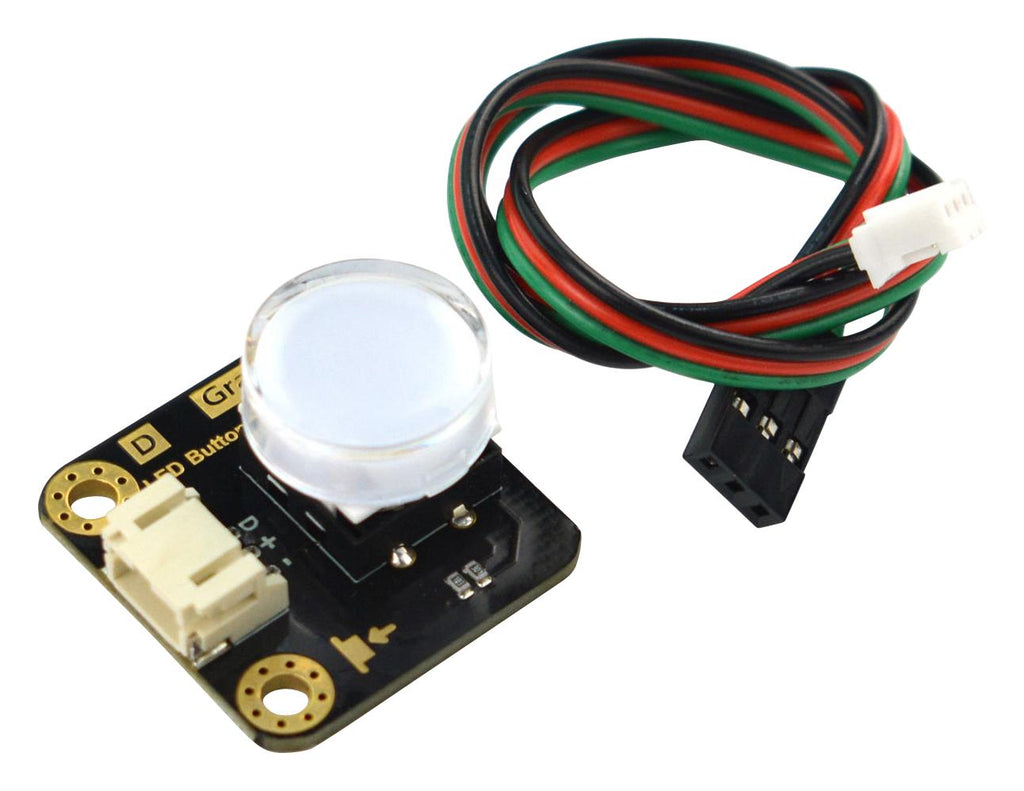

Gravity LED button - Blue x1, Digital sensor connector x1.
Product details
| Accessory Type |
LED Button |
| For Use With |
Arduino Board |
| Product Range |
- |
Other details
| Brand |
DFROBOT |
| Part Number |
DFR0785-B |
| Quantity |
Each |
