Fermion: voice recorder module supports 4 controlling modes (Arduino, AT command, on-board buttons, and ADKEY), and multi-segment voice recording. You can directly press the on-board buttons to record or play voice without using a controller. Moreover, the 16MB storage on the module can store up to 40 minutes of voice recording and the recorded files can be copied to your computer via the type-C interface.
- Support multi-segment voice recording
- Voice recording/playing via on-board buttons
- On-board power amplifier
- Support analogue U-disk
- Operating voltage range from 3.3 to 5V
- UART communication

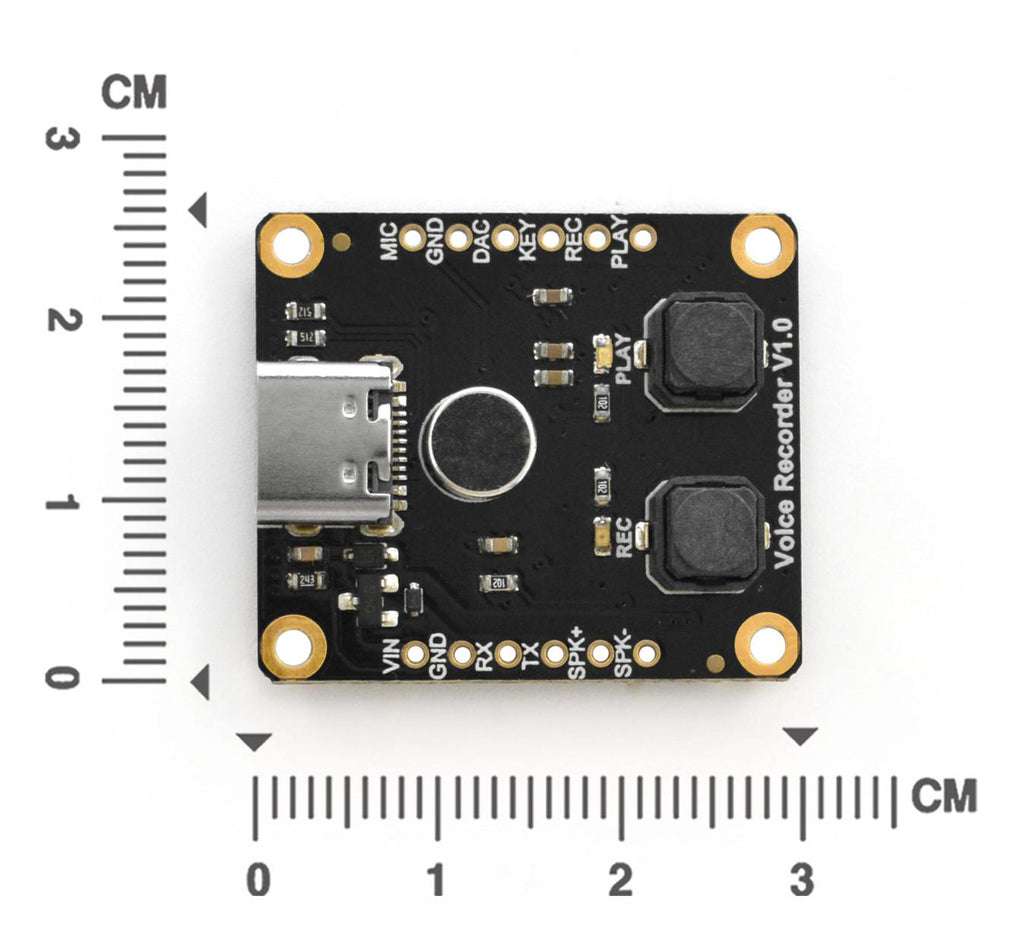

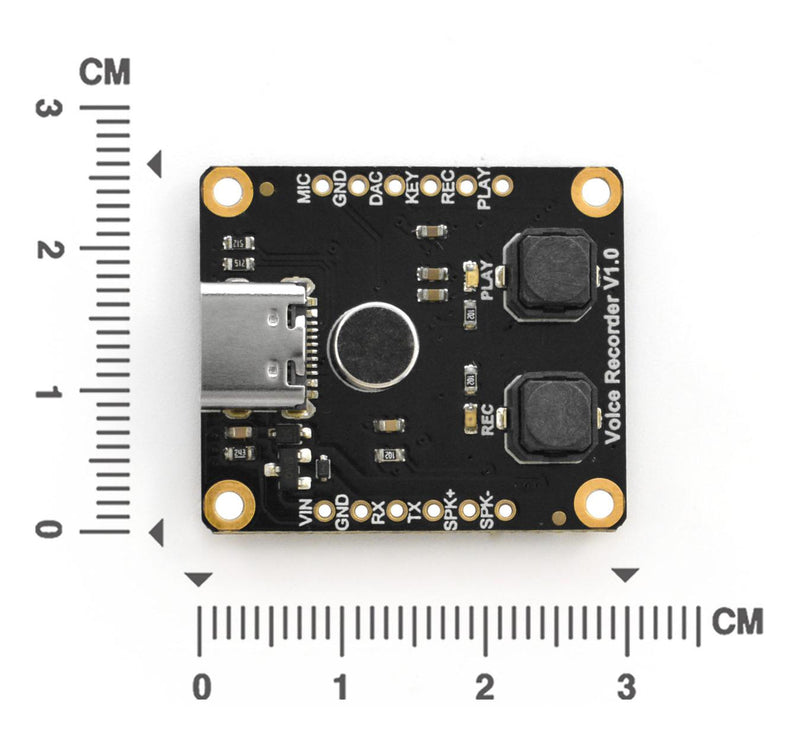

- Dimension is 26*30mm/1.02*1.18"
Contents

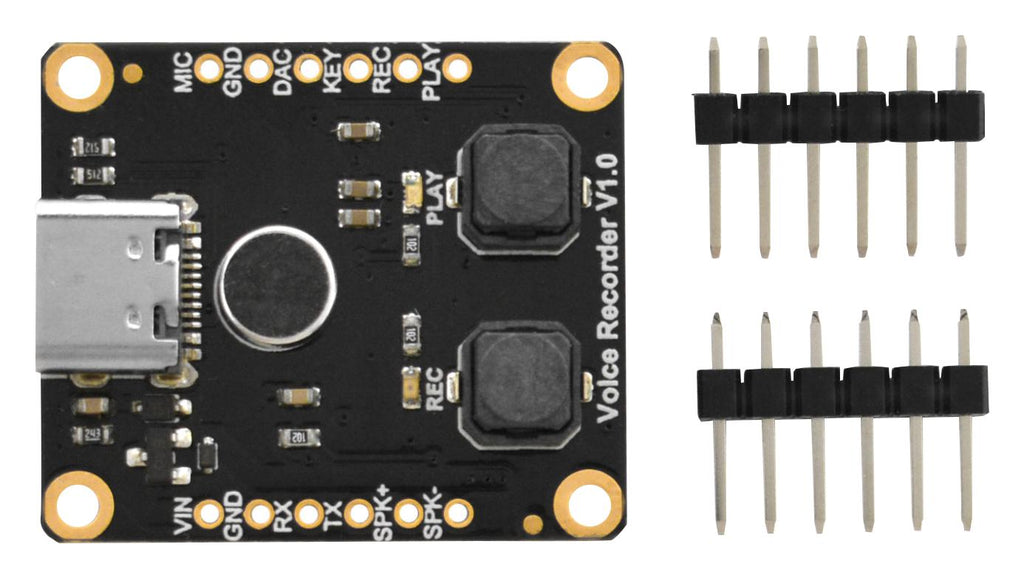

Voice recorder module-breakout x 1, 2.54-6P single-row-pin black x 2.
Product details
| Silicon Manufacturer |
- |
| Core Architecture |
- |
| Core Sub-Architecture |
- |
| Silicon Core Number |
- |
| Silicon Family Name |
- |
| For Use With |
DFRduino UNO R3 Board |
| Kit Contents |
Voice Recorder Module-Breakout, 2x 2.54-6P Single-Row-Pin Black |
| Product Range |
- |
Other details
| Brand |
DFROBOT |
| Part Number |
DFR0745 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
