Description

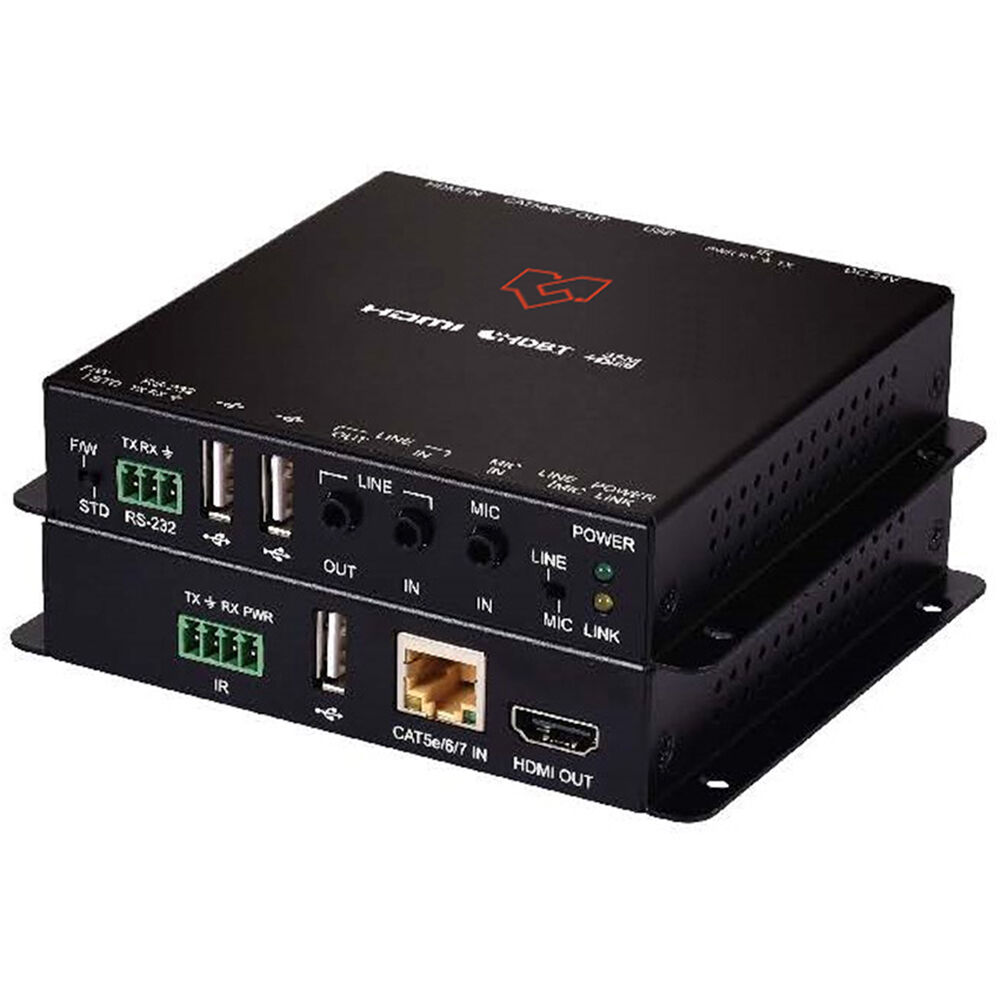

VigilLink VLEX-CHT235 Overview
The HDMI/USB to HDBaseT UHD 4K Extender Transmitter/Receiver Set from VigilLink features an HDBaseT receiver unit and a transmitter unit to extend UHD 4K 4:2:0 8-bit video signals up to up to 131'. It can be helpful in building out educational, corporate, and enterprise classrooms and meeting rooms.
The transmitter unit features one HDMI input, an HDBaseT output, 3.5mm stereo analog input/output, and it also features a USB-B host port and two USB-A passthrough ports to extend KVM functionality. The receiver unit features one HDBaseT input with a single HDMI video output, three USB-A passthrough ports, and a 3.5mm output to de-embed stereo audio. Power-over-HDBaseT (PoH) is supplied from TX to RX, so only the transmitter needs to be powered via mains. It can be controlled via IR or RS-232.
- HDMI 2.0 and DVI 1.0 compatible
- HDCP 2.2 and HDCP 1.x compliant
- HDBaseT 2.0 compliant (backwards compatible with 1.0)
- One HDMI input and one HDBaseT output on transmitter
- One HDMI output, and one HDBaseT input on receiver
- Supports up to 10.2 Gb/s, 4K60 4:2:0, 8-bit video input and output over both HDMI and HDBaseT
- Supports Deep Color input and output up to 12-bit
- Supports CEC bypass
- HDBaseT extends video, audio, and data over a single Cat 6a/7 cable and can reach distances up to 131'
- HDBaseT feature support: HD video and audio, PoH (TX to RX), bidirectional audio (analog), and control (bidirectional USB/IR/RS-232 passthrough)
- Two USB-A 2.0 device ports and one USB-B 2.0 host port on transmitter
- Three USB-A 2.0 device ports on receiver
- Supports passthrough of digital audio formats, including 8-channel LPCM, bitstream, and HD bitstream
- Selectable stereo/microphone analog audio bypass functionality
- Transmitter can supply PoH to the connected receiver
- Receiver is powered directly via PoH from the connected transmitter
Items Included
- VigilLink HDMI/USB to HDBaseT UHD 4K Extender Transmitter/Receiver Set
- Transmitter Unit
- Receiver Unit
- Power Supply
- Limited 6-Year Manufacturer Warranty
Additional Resources
