Description
VigilLink VLML-4X2KM4K-SR Overview

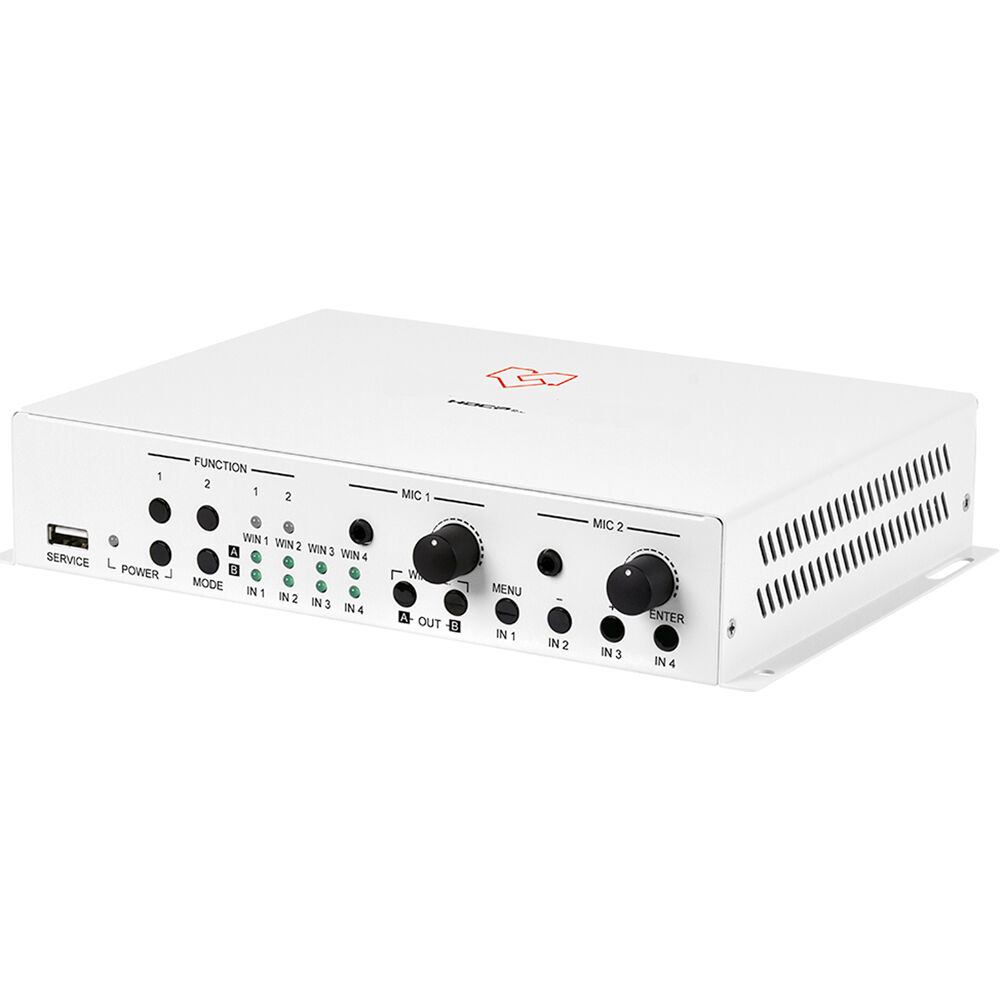

This 4x2 Modular Multiview Processor from VigilLink features seamless switching and multiview display modes for digital signage and video wall applications. The processor features four HDMI inputs and two HDMI outputs that support up to UHD 4K60 video I/O.

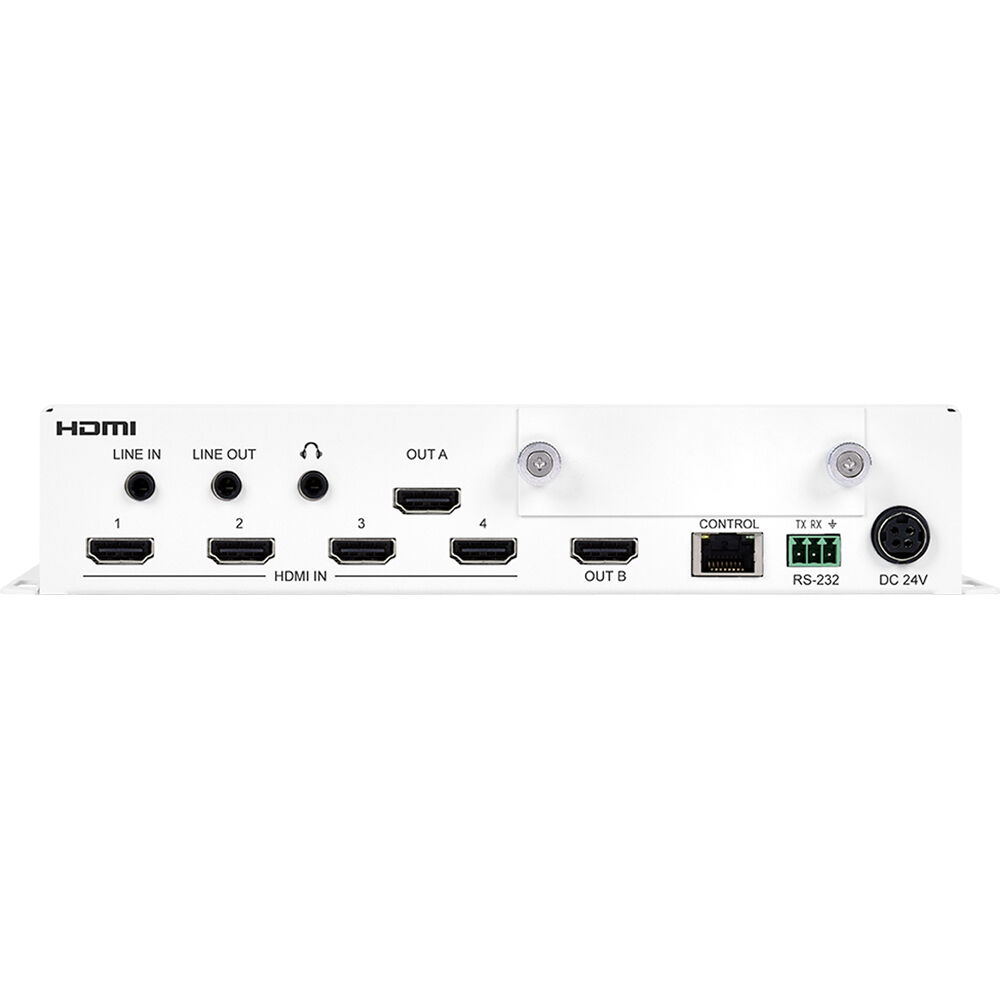

Its internal audio mixer supports embedding analog audio via 3.5mm jacks to insert into your embedded output. Multiview modes like Picture-in-Picture, Picture-on-Picture, and Quad can be freely switched for display. Control options include front-panel buttons, an IP web GUI, and RS-232 communication. There is an optional module slot on the back for a compatible card to expand functions such as streaming and recording.
- Signage platform to couple with CYP modular solutions for multiple ProAV purposes
- HDMI inputs and outputs with 18 Gb/s (600 MHz) 4K UHD support
- Seamless switching (no loss of sync to display) when switching sources in 4x2 matrix mode
- Supports PiP (Picture-in-Picture), PoP (Picture-on-Picture), quad-mode display options with independent audio source selection
- Supports the ability to store a multi-window arrangement as a preset that can be recalled later
- EDID management
- Uploadable and freely positioned graphic logo support
- Supports easy adjustment of window size, position, and settings in the PiP windowing mode via the WebGUI

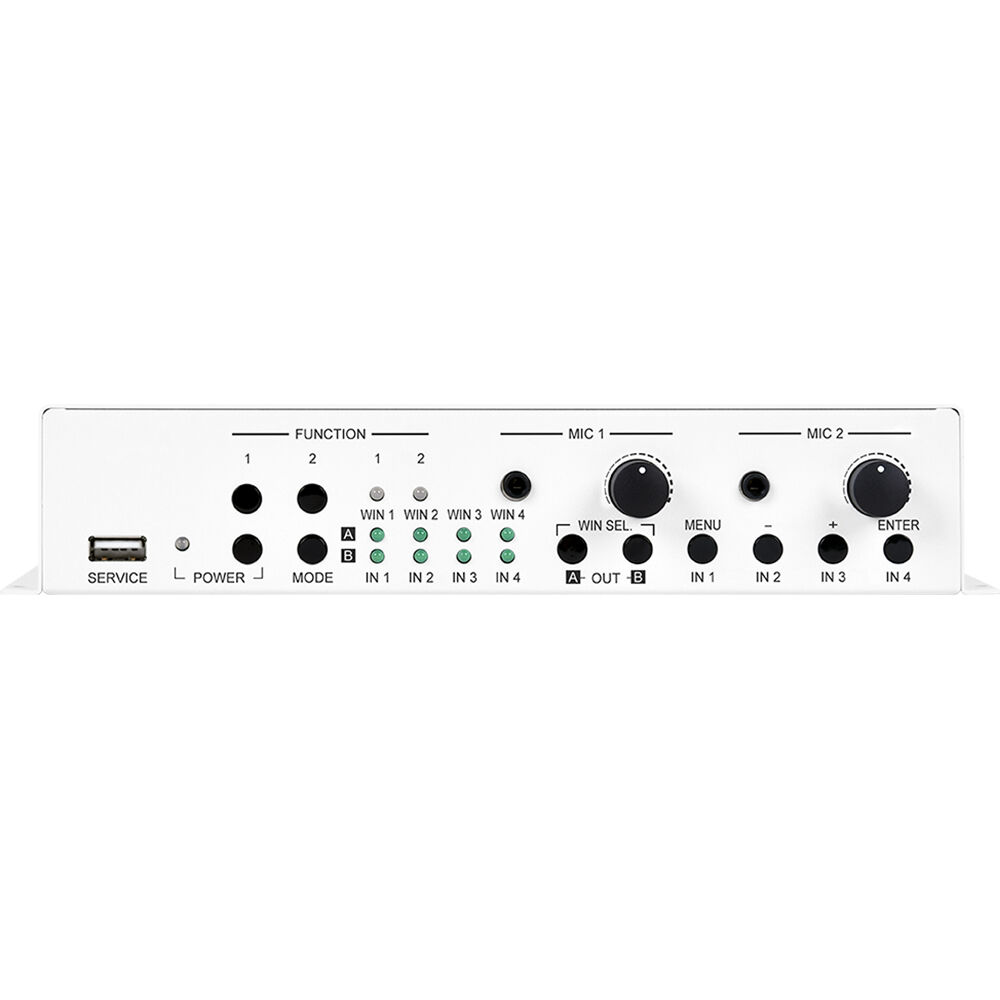

- Controllable via front-panel buttons, WebGUI, telnet, and RS-232
Items Included
- VigilLink 4x2 Modular Multiview Processor
- Power Adapter
- Limited 6-Year Manufacturer Warranty
Additional Resources
VigilLink VLML-4X2KM4K-SR Specs
| Inputs |
4 x HDMI (HDMI 2.0) Female
3 x 1/8" / 3.5 mm TRS (Stereo Analog) Female |
| Embedded Audio |
HDMI Input: 8-Channel
HDMI Input: 2-Channel |
| Outputs |
2x HDMI (HDMI 2.0) Female
2x 1/8" / 3.5 mm TRS (Stereo Analog) Female |
| Video Format |
HDMI (8-Bit 4:4:4 YUV)
DCI 4K: 60 fps |
| Inputs |
4 x HDMI (HDMI 2.0) Female
3 x 1/8" / 3.5 mm TRS (Stereo Analog) Female |
| Embedded Audio |
HDMI Input: 8-Channel
HDMI Input: 2-Channel |
| Outputs |
2x HDMI (HDMI 2.0) Female
2x 1/8" / 3.5 mm TRS (Stereo Analog) Female |
| Other I/O |
1x RJ45 (10/100 Mbps Ethernet) Input/Output
1x USB-A (Firmware) Input 1x Block 3-Pin (RS-232) Input/Output |
| HDR Support |
No
|
| HDCP Support |
Yes, Version 2.2
|
| EDID Support |
Yes
|
| Video Format |
HDMI (8-Bit 4:4:4 YUV)
DCI 4K: 60 fps |
| Maximum Multiple Display Configuration |
2 x 2
|
| Audio Format |
Analog
Unspecified Digital Signal |
| Maximum Data Rate |
18 Gb/s
|
| Power I/O |
1x DIN 4-Pin (24 VDC at 7 A) Input
|
| Power Consumption |
Device: (24 W)
|
| ESD Protection |
±8 kV Air-Gap Discharge
±4 kV Contact Discharge |
| Certifications |
CE, FCC, UL
|
| Operating Conditions |
32 to 122°F / 0 to 50°C at 20 to 90% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C
|
| Material of Construction |
Steel
|
| Dimensions |
8.4 x 7.1 x 1.7" / 213.5 x 179.3 x 43.0 mm
|
| Weight |
2.78 lb / 1.26 kg
|
