Description

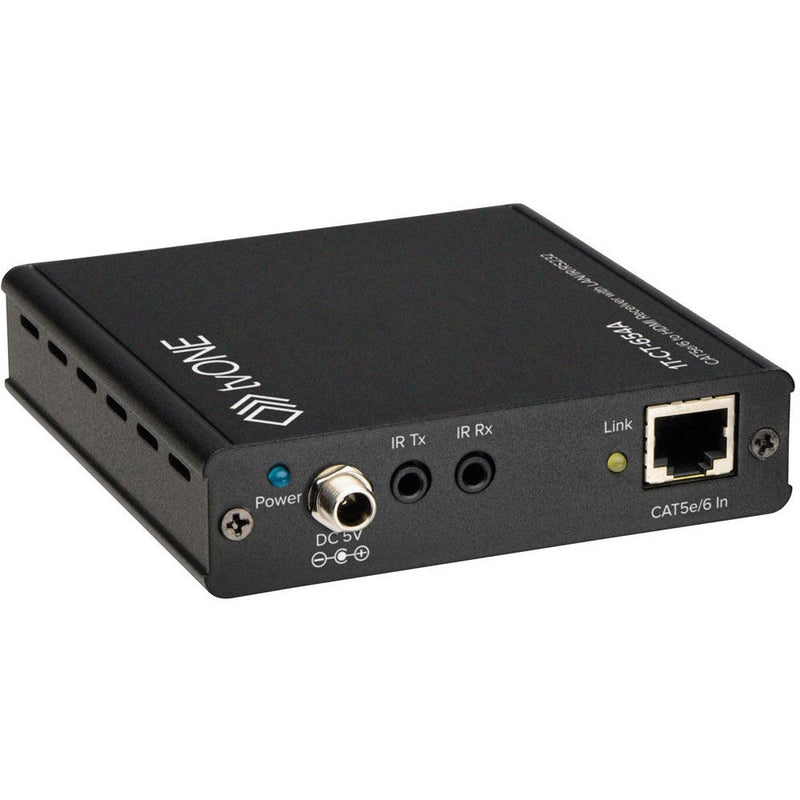

The One Task 1T-CT-654A HDMI over CAT5e/6 Receiver employs HDMI v1.4 capability and HDBaseT 5Play technology to allow transmission of uncompressed, 1080p high-definition television signals over a single CAT5e or CAT6 cable. It receives HDMI v1.4 signals that include 3D and 4K UHD formats, and also allows DVI signal transmission with appropriate DVI-to-HDMI cable adapters.
The 1T-CT-654A Receiver also features embedded 7.1 channel LPCM, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio capability. It can achieve signal distribution to distances up to 325� for uncompressed 1080p signals without signal degradation. The PoH (Power Over HDBaseT) technology is employed to allow powering of the receiver from the 1T-CT-653 Transmitter (sold separately), avoiding the need for a separate power supply for that unit.
Note: Requires the separately-sold 1T-CT-653 Transmitter at the receiving end.
- HDMI 1.4a, HDCP 1.1, and DVI 1.0
- Uncompressed HDMI signal distribution to 325'
- Uses HDBaseT performance enhancing technology
- Supports embedded HDMI lossless digital audio
- Full HD resolution support (1080p @ 60 Hz/36 bit) & 3D
- UHD support (4k @ 30 Hz)
- PC resolutions up to WUXGA
- Supports HDCP repeater and CEC bypass
- Uses a single CAT5e/CAT6 Ethernet cable
- Bi-directional infrared remote support
- Bi-directional RS-232 and Ethernet support
- Power over HDBaseT (PoH) or local power input
- Compatible with CORIOmax HDBaseT output modules
- Power Adapter
- Limited 3-Year Warranty on Parts & Labor
| Input | 1 x via HDMI connector |
| I/O | Cable I/O CAT5e/CAT6: 1 x via RJ45 connector |
| Connector | 1 x LAN RJ45, 1 x DB9 RS-232 2 x 3.5 mm mini-jack (Infrared) |
| Standards | Signals & Protocols: HDMI v1.4a, 3D, 4 x 2 K, HDCP, DVI 1.0, IR, RS-232, and Ethernet |
| Maximum Resolution | HD up to 1080p @ 60 Hz/36 bit UHD to 4k @ 30 Hz, PC to WUXGA |
| Audio Support | LPCM 7.1 channels, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master |
| Bandwidth | 10.2 Gb/s / 300 MHz |
| Maximum Range | Up to 1920 x 1200 @ 60 Hz: 325' (100 m) using CAT5e/6 Up to 3840 x 2160 @ 30 Hz: 230' (70 m) using CAT5e/6 325' (100 m) using CAT6a/7 |
| Regulatory Approvals | Encoder / Decoder Unit: FCC, CE, RoHS Power Supply: UL, CUL, CE, PSE, GS, RoHS |
| Cable Requirements | CAT5e, CAT6, CAT6a, or CAT7 cable |
| Power Requirement | 5 VDC Locking Connector |
| Environmental | |
|---|---|
| Operating Temperature | 32 to 104�F (0 to 40�C) |
| Storage Temperature | -4 to 140�F (-20 to 60�C) |
| Operating Humidity | 20 to 90%, non-condensing |
| Storage Humidity | 20 to 90%, non-condensing |
| Mechanical | |
|---|---|
| Dimensions (H x W x D) | 0.98 x 4.0 x 4.21" (2.5 x 10.2 x 10.7 cm) |
| Weight | 9 oz (256 g) |
