Description

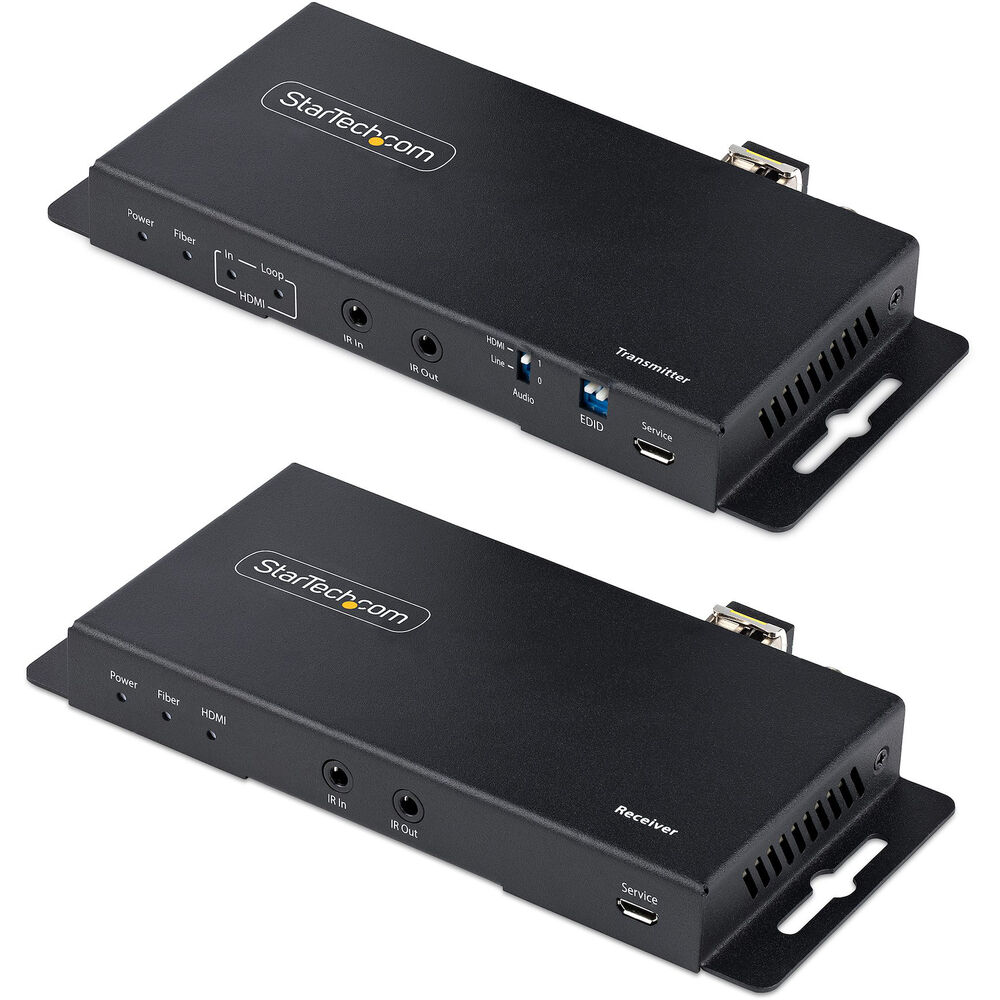

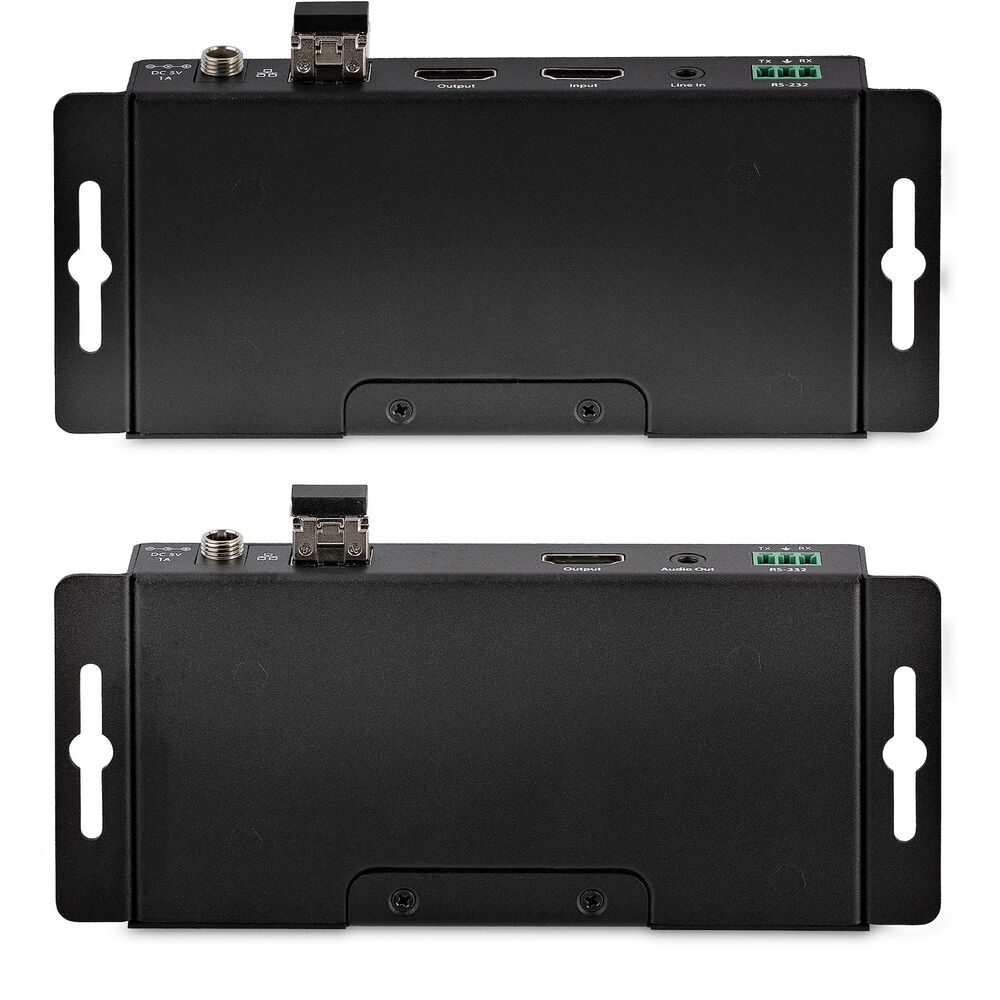

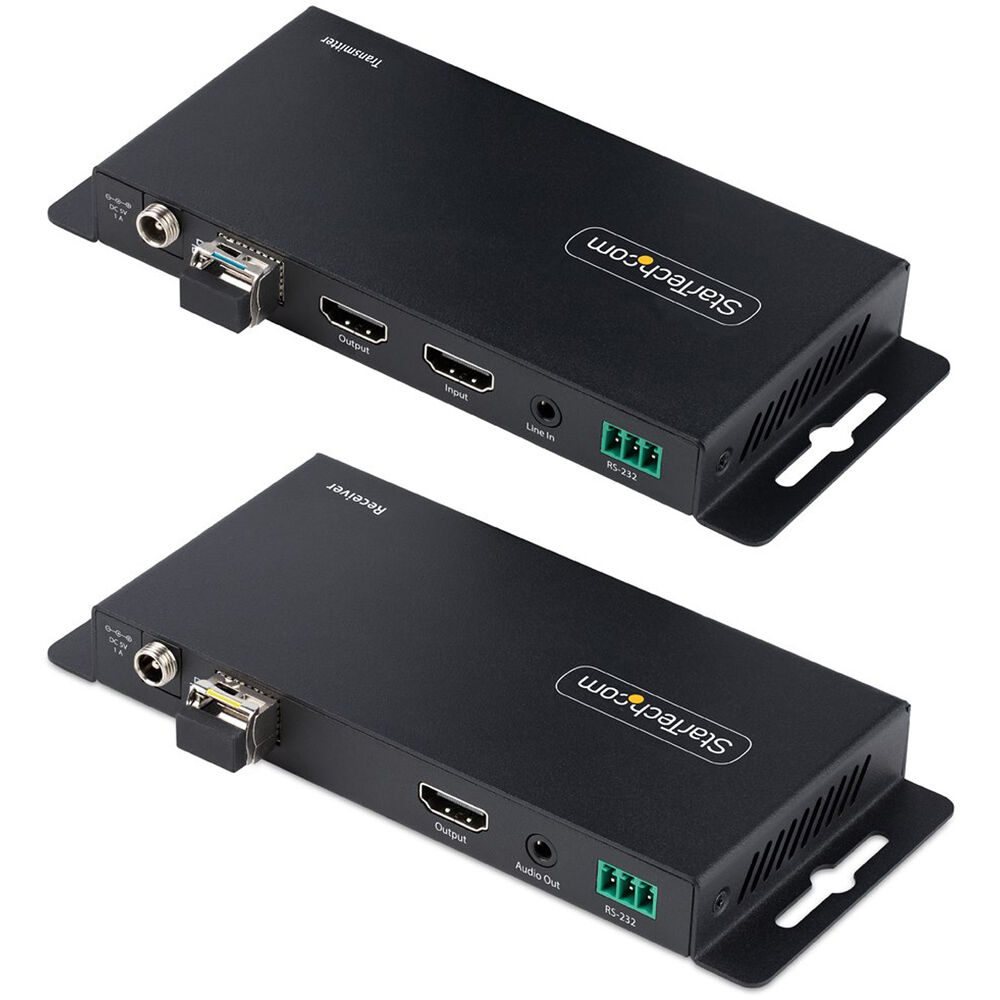

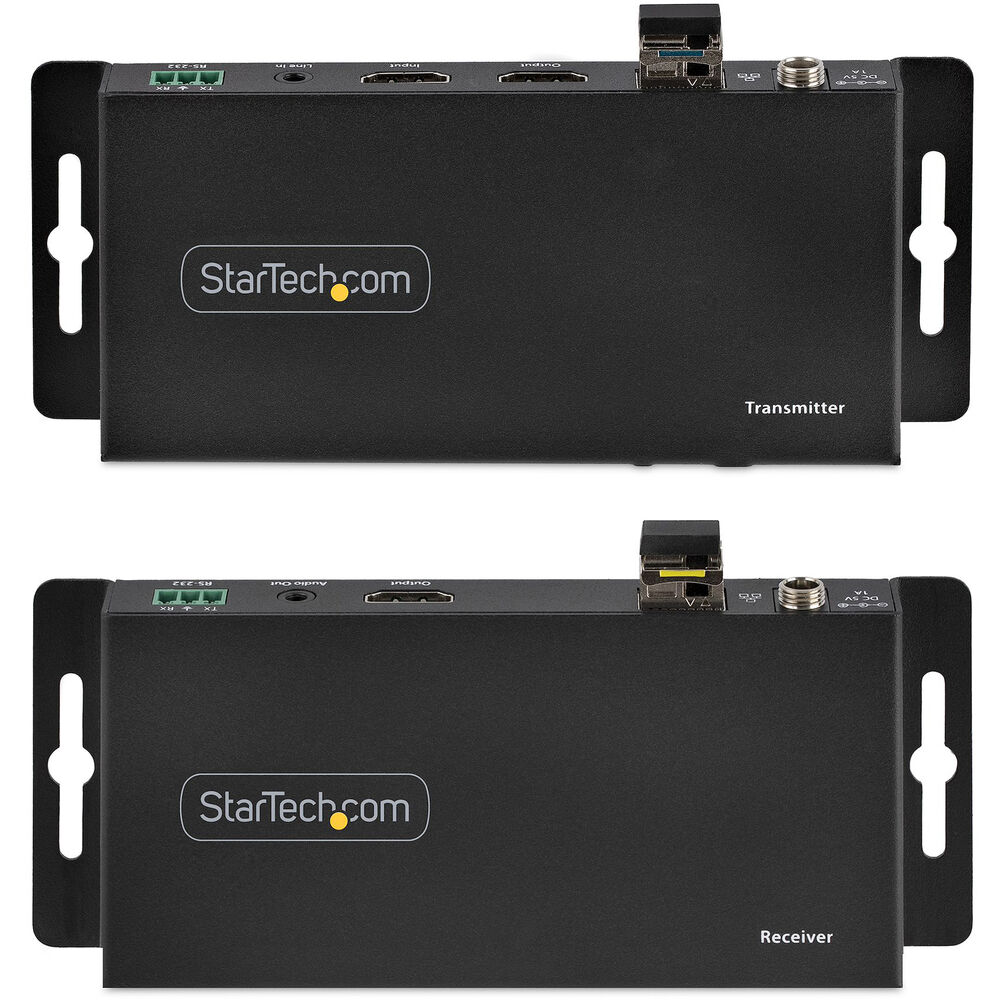

StarTech UHD 4K HDMI over Fiber Overview
With both a local transmitter and a remote receiver unit, the UHD 4K HDMI over Fiber Extender Kit from StarTech offers a complete solution for your digital signage ecosystem. The system supports up to UHD 4K60 HDMI video and 7.1-channel audio. Both single-mode and multimode fiber connections can be facilitated with the extender. Built-in mounting brackets and all of the necessary power and IR cabling are included to make installation a breeze.
Single-Mode or Multimode Fiber
Choose between single-mode or multimode fiber cabling to seamlessly integrate the kit into your preexisting fiber ecosystem. Single-strand fiber connectivity supports full-bandwidth video and extends signals up to 3300', while multistrand fiber can extend up to 1000'.
Audio Capabilities
Playback audio from your HDMI sources via 3.5mm output on the receiver unit. Simultaneous playback is supported across HDMI and 3.5mm outputs.
Simple Installation
When the transmitter and receiver are connected via LC single-strand fiber, there is no need for IP configuration drivers or networking equipment. Built-in mounting brackets on both units streamline installation with secure mounting points. A local HDMI output and IR/serial extension capabilities allow you to integrate projectors or A/V equipment with IR remote controls into the system. LED indicators monitor the system's status, and EDID copy functionality makes setup efficient.
UPC: 065030897303
Items Included
- StarTech UHD 4K HDMI over Fiber Extender Kit
- Local HDMI Transmitter Unit
- Remote HDMI Receiver Unit
- 2 x IR Blaster
- 2 x IR Receiver
- 2 x Power Adapter
- 2 x RS-232 Terminal Block Connector
- Limited 2-Year Manufacturer Warranty
Additional Resources
StarTech UHD 4K HDMI over Fiber Specs

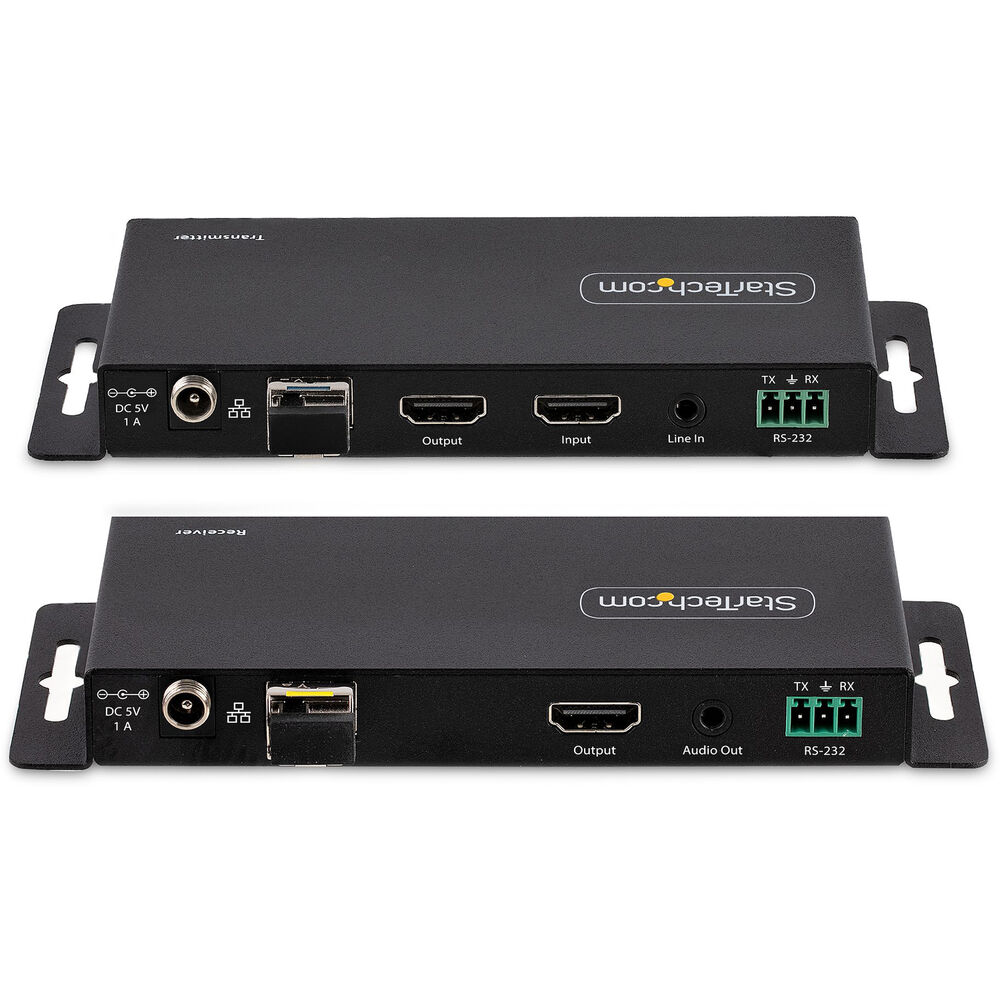

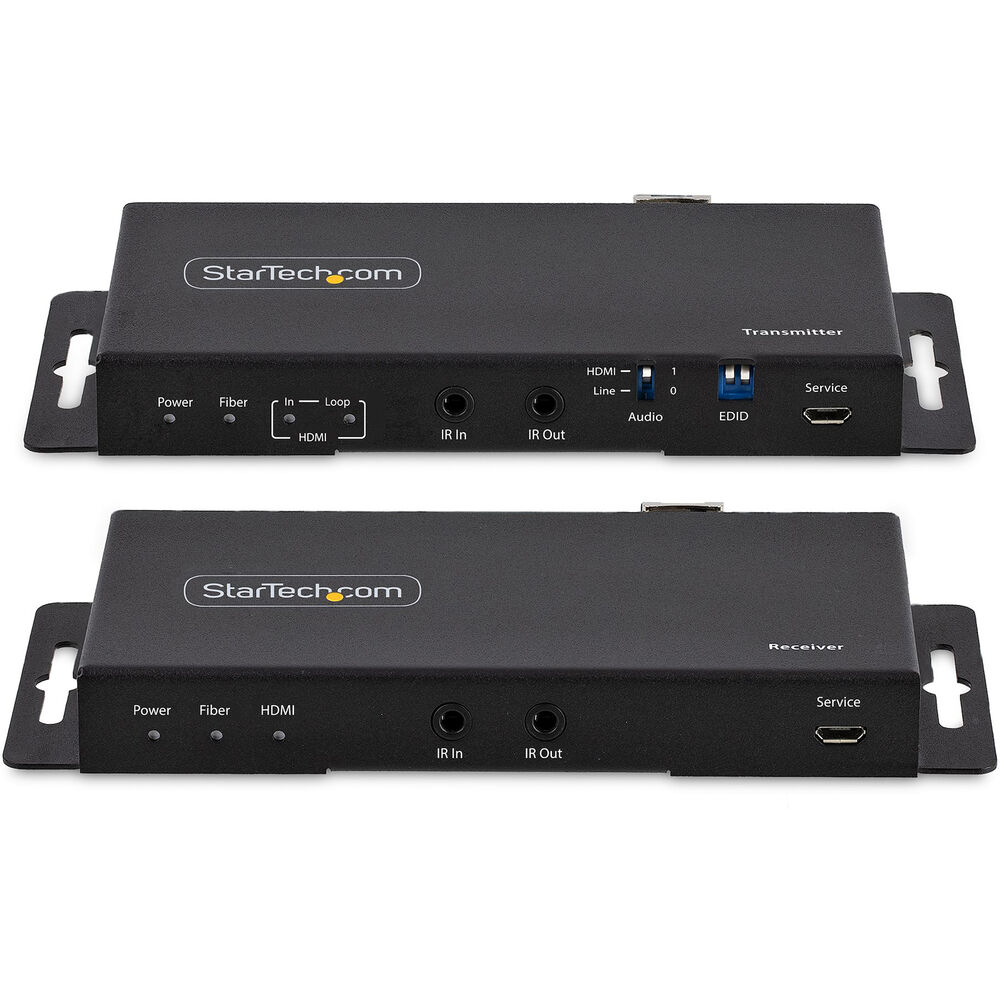

Transmitter Interfaces
| Inputs |
1x HDMI (HDMI 2.1)
1x 1/8" / 3.5 mm TRS (Stereo Analog) |
| Embedded Audio Input |
HDMI
|
| Outputs |
1x LC (Fiber)
1x HDMI (HDMI 2.1) |
| Transmitter Other I/O |
1x 1/8" / 3.5 mm IR Input
1x 1/8" / 3.5 mm IR Output 1x Micro-USB Update 1x Block 3-Pin RS-232 |
Receiver Interfaces
| Inputs |
1x LC (Fiber)
|
| Outputs |
1x HDMI (HDMI 2.1)
1x 1/8" / 3.5 mm TRS (Stereo Analog) |
| Embedded Audio Output |
HDMI
|
| Receiver Other I/O |
1x 1/8" / 3.5 mm IR Input
1x 1/8" / 3.5 mm IR Output 1x Micro-USB Update 1x Block 3-Pin RS-232 |
Standards
| HDR Support |
Yes: HDR10
|
| HDCP Support |
Yes: Version 2.2
|
| EDID Support |
Passthrough
|
Transmission
| Max Transmission Distance |
UHD 4K at 60 Hz:
0.6 Miles / 1 km (via Single-Mode Fiber) UHD 4K at 60 Hz: 984.3' / 300 m (via Multi-Mode Fiber) |
| Video Format |
Fiber (4:4:4):
3840 x 2160: 60 fps |
| Audio Format |
Unspecified Digital Signal
|
| Surround/Immersive Audio |
DTS, DTS 96/24, DTS Express, DTS-HD High Resolution, DTS-HD Master Audio, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD
|
| Supported Cable Types |
Single-Mode, Multi-Mode Fiber
|
Power

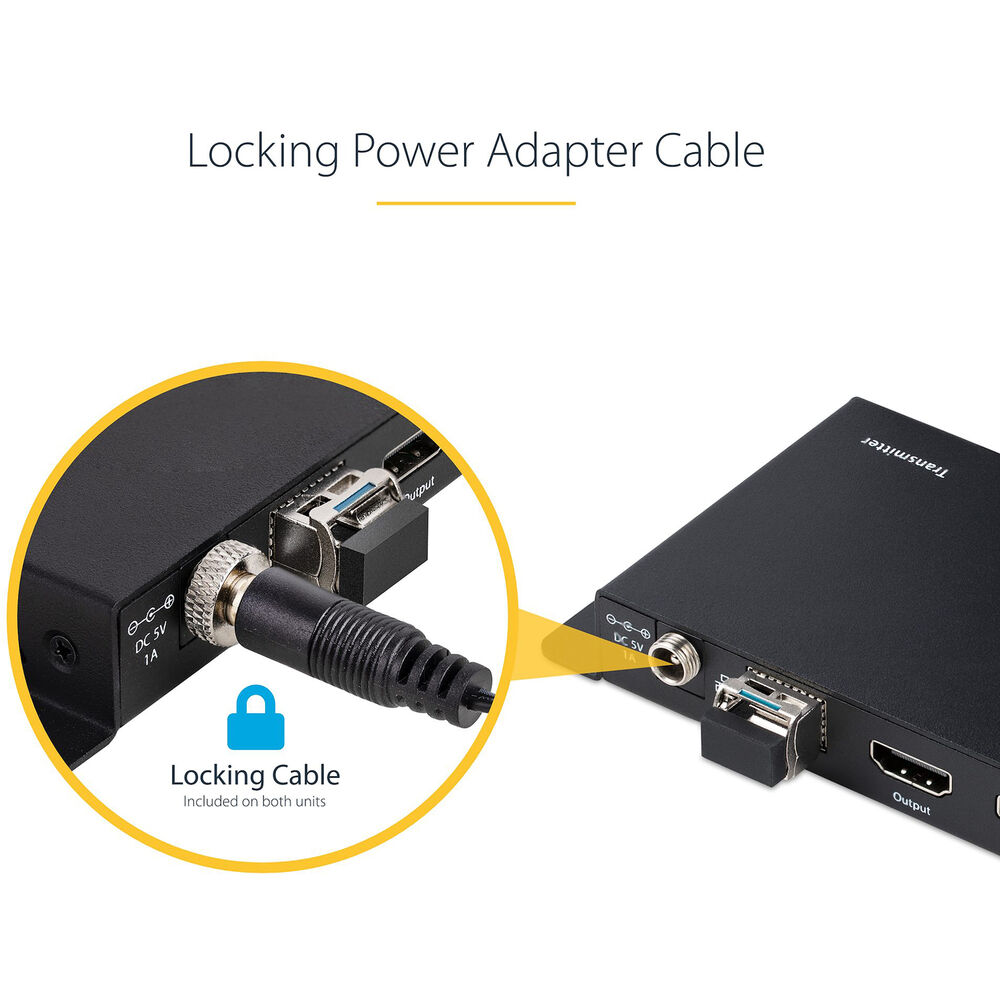

| Transmitter Power I/O |
1x Barrel (5 VDC at 1 A) Input
|
| Receiver Power I/O |
1x Barrel (5 VDC at 1 A) Input
|
| Transmitter Power Consumption |
100 to 240 VAC (0.1 W)
|
| Receiver Power Consumption |
100 to 240 VAC (0.1 W)
|
General
| Certifications |
FCC Part 15 Class B, ICES-003 Class B
|
| Operating Conditions |
32 to 104?F / 0 to 40?C at 20 to 90% Humidity
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C at 20 to 90% Humidity
|
| Transmitter Dimensions |
5.3 x 2.7 x 0.7" / 13.4 x 6.8 x 1.8 cm
|
| Receiver Dimensions |
5.3 x 2.7 x 0.7" / 13.4 x 6.8 x 1.8 cm
|
| Transmitter Weight |
1.2 lb / 0.5 kg
|
| Receiver Weight |
1.2 lb / 0.5 kg
|
Packaging Info
| Package Weight |
2.31 lb
|
| Box Dimensions (LxWxH) |
11.9 x 8 x 2.5"
|
