Description

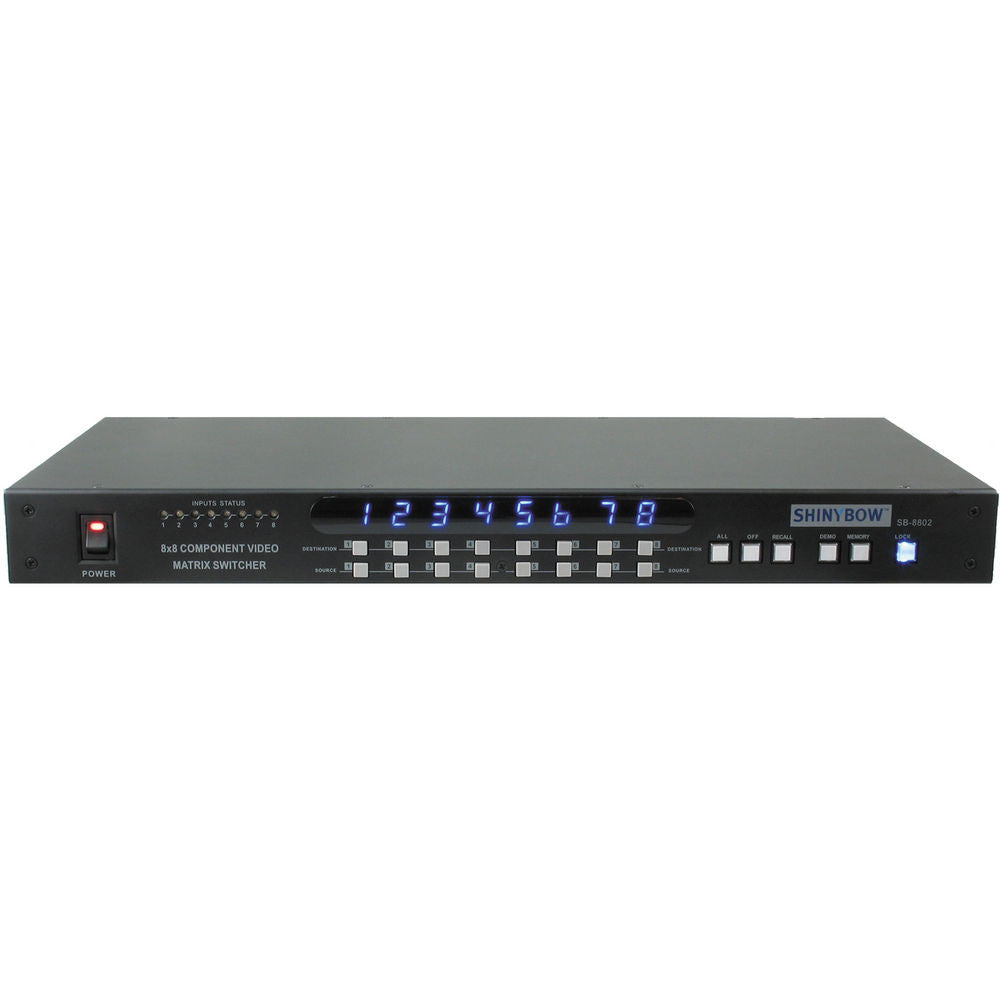

The SB-8802 8 x 8 Component Video Matrix Switcher from Shinybow is a true matrix routing switcher for component video (YPbPr or RGB) signals with no audio. It supports high-definition resolutions such as 480p, 720p, and 1080i/p.
With 8 individual component video inputs and outputs, this matrix switcher enables any input to be routed to any output, or the same input to be routed to all outputs. It also comes with 8 memory locations to store preset matrices, eliminating the need to constantly move around video input and output cables. A 19� ear mount pair (1U-440L) is provided to mount this unit onto a rack.
This HDTV video matrix switcher is suitable for Matrix signals from component video YPbPr/RGB source devices (such as Blu-Ray players, video game consoles, VCRs, camcorders, DVD players, satellite receivers, CAT5 set top boxes, etc.) to component video YPbPr/RGB destination devices (such as TVs, HDTVs, displays, projectors, etc.). Selection of inputs can be done via the front panel push buttons, or by the included infrared remote control, or RS-232 control by computer. A Windows-based control software package is included to provide complete control of the switcher from a PC.
- Supports 8 inputs to 8 outputs component video (YPbPr) matrix switching
- Video bandwidth of 250 MHz
- Supports 408p, 576i/p, 720p, 1080i/1080p high-definition resolutions
- IR Extender Remote port to extend the IR up to 984' (300m)
- Compatible with all component video devices, Plasma TV displays, and HDTVs
- RS-232 serial interface using simple ASCII commands
- RS232 driver compatible with Windows 95/98/2000/XP Operating Systems
- Windows based control software for Desktop or NB is included for control by RS232 port
- The unit can be controlled via the front panel buttons or by the IR remote control
- Support desktop as well as rack mounting (19" 1RU rack-mount bracket included)
- World-wide 12VDC power supply, universal type switch 100 to 230VAC, 50/60Hz
| Switcher | Type: 8 input to 8 output Component video (YPbPr) matrix switcher |
| I/O Signals | Component video (YPbPr) 0.5 to 1.0 Vpp, DDC 5 Vpp |
| Video Bandwidth | 250 MHz |
| Video Supported | 480i/p, 720p, and 1080i/p |
| Low all hostile crosstalk | -83 dB @ 5 MHz |
| Gain Control | 60 MHz 0.1 dB gain flatness |
| Chassis Material | Metal (T=1 mm) |
| IR Distance | 984' (300 m) IR line cable via IR remote control |
| Controls | IR remote, select buttons on the front panel, and RS232 |
| PC Control | RS232 interface serial via DRV on a PC |
| Safety Approvals | CE, FCC, RoHS (2002/95/EC) |
| Power Consumption | 2 A |
| Power Supply | 12 VDC Universal Switch Type 50/60 Hz,100 to 230 VAC |
| Dimensions (W x D x H) | 17.40 x 7.80 x 1.75" (441.96 x 198.12 x 44.45 mm) |
| Packaging Info | |
|---|---|
| Package Weight | 8.35 lb |
| Box Dimensions (LxWxH) | 20.2 x 11.5 x 3.5" |
- IR Extender Receiver

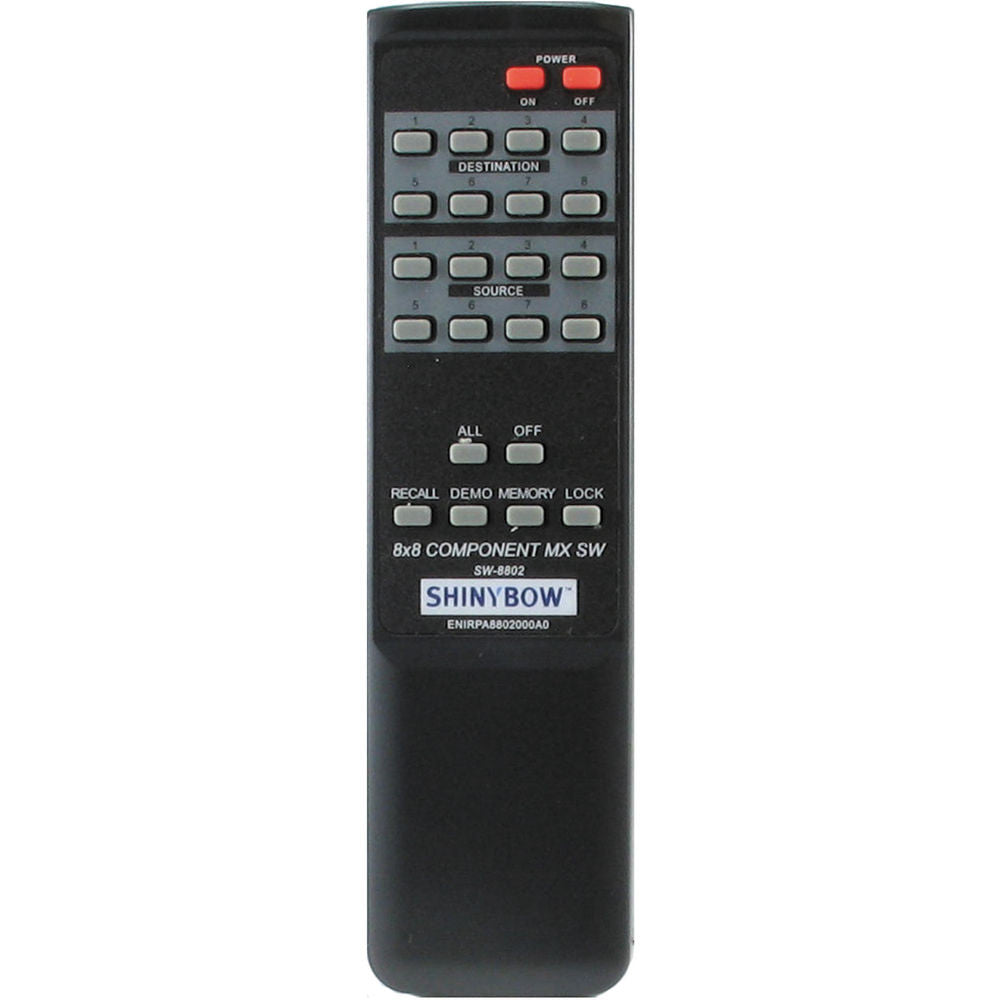

- IR Remote
- Rack Mount Kit
- RS-232 Cable
- RS-232 Driver CD
- AC to DC Adapter (12VDC, 3A Universal Type 50/60Hz, 100 to 230VAC)
- Limited 3-Year Warranty
