Description
SCIENCE IMAGE Flow Edge 4-Channel Overview

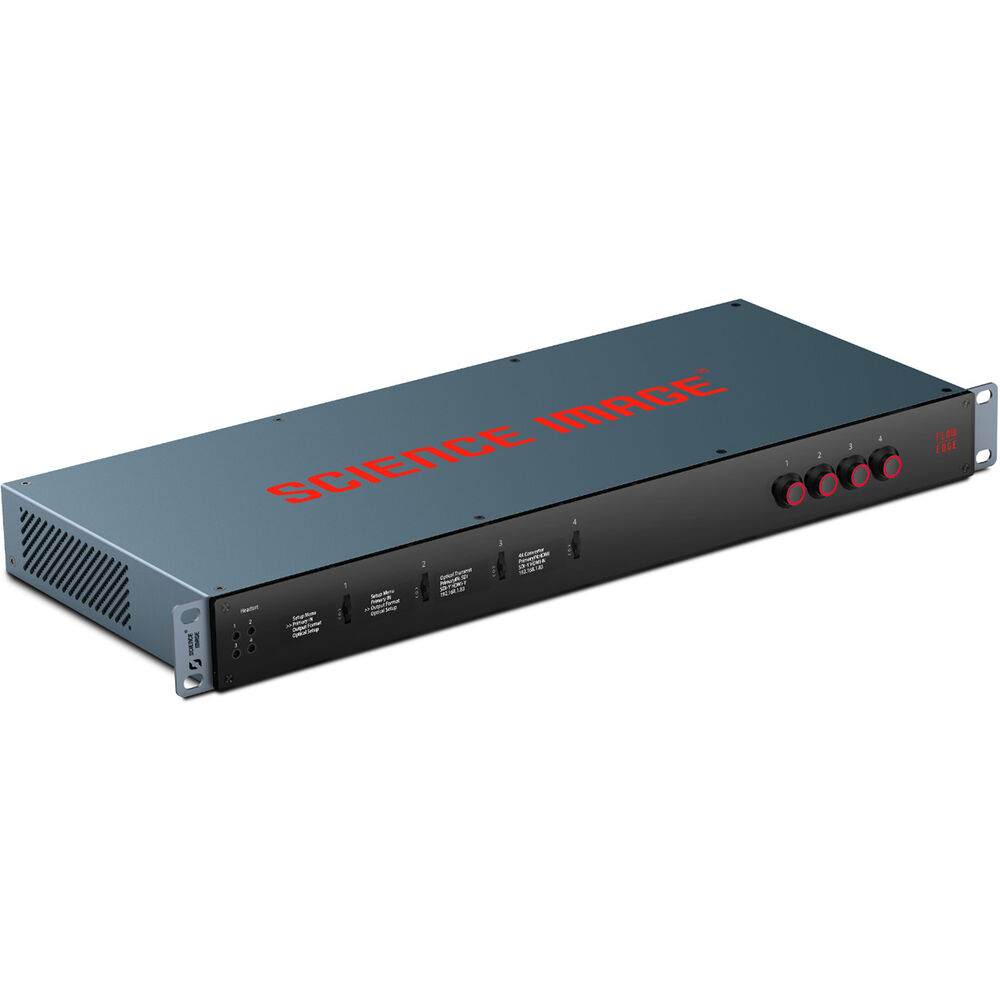

The Flow Edge 4-Channel Rackmount 4K Up/Down/Cross Converter by SCIENCE IMAGE combines the adaptability of the popular Flow 4K and Flow 2 converters, condensing them into a single rack unit with centralized power. This simplifies the process of constructing a multi-source, multi-destination rack kit.

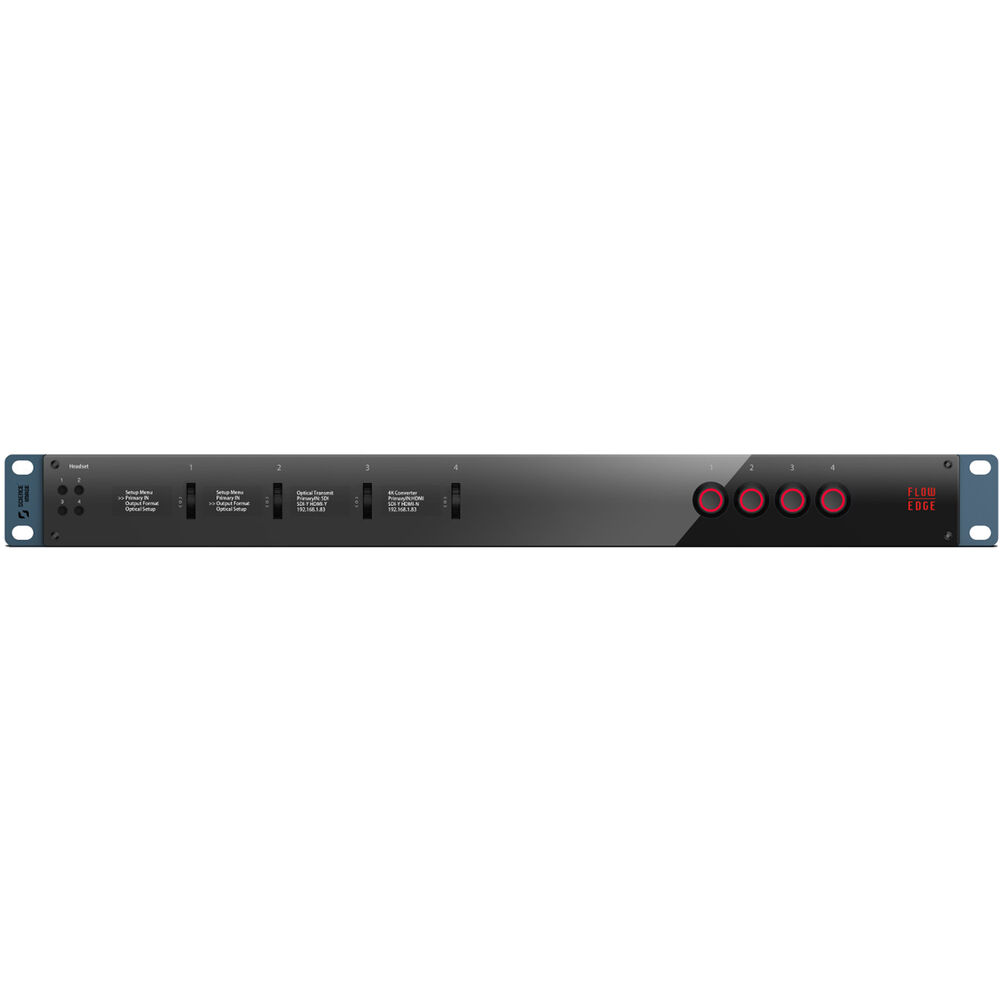

With Flow Edge, users can handle up to four channels of up/down and cross conversion for virtually any video format up to 4K at 60 fps, utilizing HDMI 2.0 and 12G-SDI connections. Each channel of the Flow Edge comes equipped with its own dedicated LED screen, menu control wheel, network port, video input/output, audio input/output, and power button. The Flow Edge is enclosed within a compact 1 RU, short-depth chassis.
Features at a Glance
- 4-channel rackmount 4K 12G-SDI/HDMI up/down/cross converter with fiber TX/RX and analog audio in/out
- Up/down/cross conversion of 35+ formats

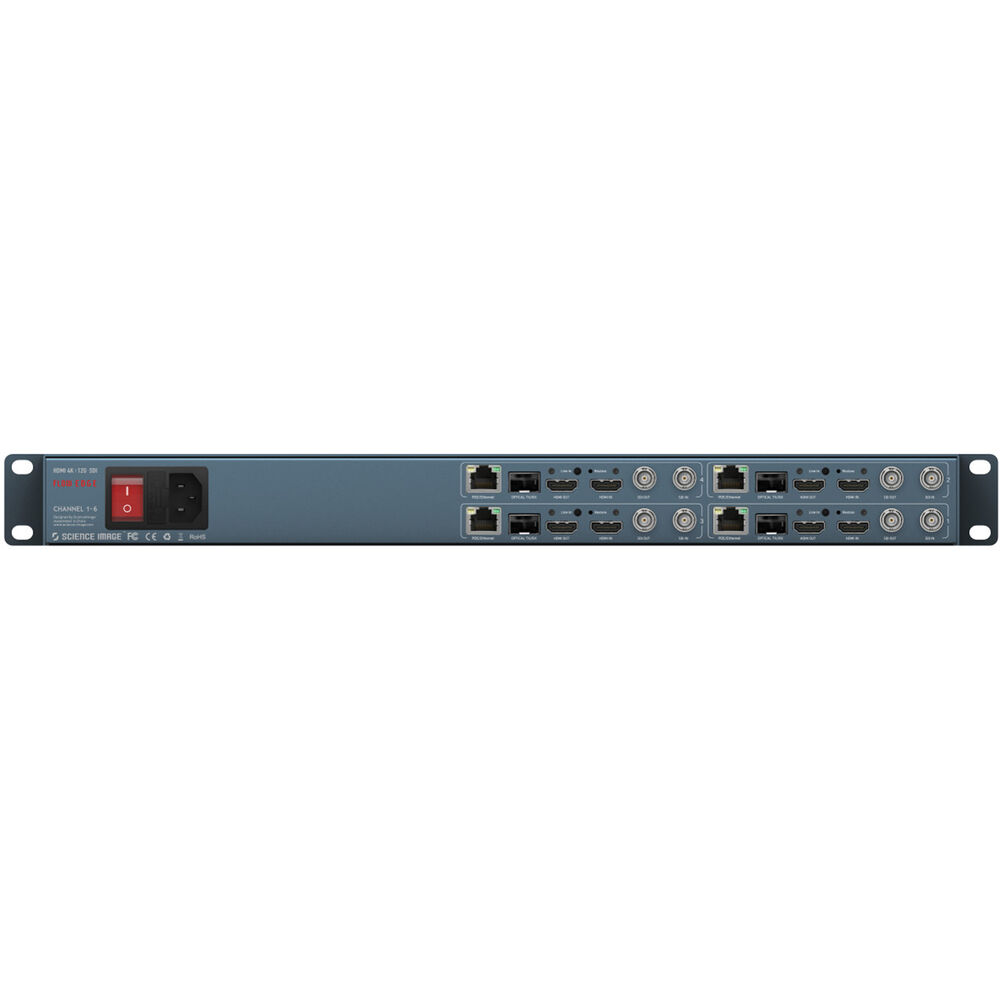

- 4 x 12G-SDI inputs and outputs, 4 x HDMI 2.0 inputs and outputs, handling signals up to 2160p60
- 4 x 3.5mm stereo headphone outputs, 4 x 3.5mm stereo line-in inputs
- 4 x 1.3? OLED screen with status, video format, IP address, and more
- 4 x scroll wheel button for direct menu operation as well as web UI control
- Audio embed/de-embed from stream, two-way intercom per channel
- 4 x RJ45 Gigabit Ethernet, 4 x optical fiber SFP+ interfaces (for optional 12G-SDI transceiver)
- AC power Inputs with 4 x LED illuminated power buttons
Items Included
- SCIENCE IMAGE Flow Edge 4-Channel Rackmount 4K Up/Down/Cross Converter (1 RU)
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
SCIENCE IMAGE Flow Edge 4-Channel Specs
Key Specs
| Video I/O |
Input/Output
4x BNC (12G-SDI) Female 4x HDMI 2.0 Female 4x opticalCON (12G-SDI) Female |
| Audio I/O |
Input
4x 1/8" / 3.5 mm TRS Stereo Analog Female (Loop Output) 4x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Female |
| Video Resolution |
BNC Input/Output
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps 2560 x 1440 at 23.98/24/25 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080PsF at 23.98/24/25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps HDMI Input/Output 3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps 2560 x 1440 at 23.98/24/25 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080PsF at 23.98/24/25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps Fiber Input/Output 3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps 2560 x 1440 at 23.98/24/25 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080PsF at 23.98/24/25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps |
| Audio Format |
Analog, Unspecified Digital Signal Input/Output
|
| Wireless |
No
|
Inputs/Outputs
| Video I/O |
Input/Output
4x BNC (12G-SDI) Female 4x HDMI 2.0 Female 4x opticalCON (12G-SDI) Female |
| Audio I/O |
Input
4x 1/8" / 3.5 mm TRS Stereo Analog Female (Loop Output) 4x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Female |
| Other I/O |
Input/Output
4x RJ45 (LAN) |
Format Support
| Video Resolution |
BNC Input/Output
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps 2560 x 1440 at 23.98/24/25 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080PsF at 23.98/24/25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps HDMI Input/Output 3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps 2560 x 1440 at 23.98/24/25 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080PsF at 23.98/24/25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps Fiber Input/Output 3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps 2560 x 1440 at 23.98/24/25 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080PsF at 23.98/24/25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps |
| Audio Format |
Analog, Unspecified Digital Signal Input/Output
|
| Embedded Audio |
Fiber/HDMI/SDI
|
Standards
| Video Standard Compliance |
SMPTE: 259M/292M/296M/372M/424M/ST-2081-1/ST-2082-1/ST-2082-10
|
| HDR Support |
No
|
IP Streaming
| Transport Protocols |
NDI/HX, NDI/HX2, NDI/HX3
|
Hardware
| Wireless |
No
|
Display
| Display |
1.3" OLED
|
Power
| Power I/O |
1x IEC C13 Input
|
General
| Rack Form Factor |
1 U
|
| Certifications |
CE, FCC, RoHS
|
| Dimensions |
20 x 12 x 6" / 50.8 x 30.5 x 15.2 cm
|
| Weight |
8 lb / 3.6 kg
|
Packaging Info
| Package Weight |
9.21 lb
|
| Box Dimensions (LxWxH) |
20.6 x 10.4 x 3.1"
|
